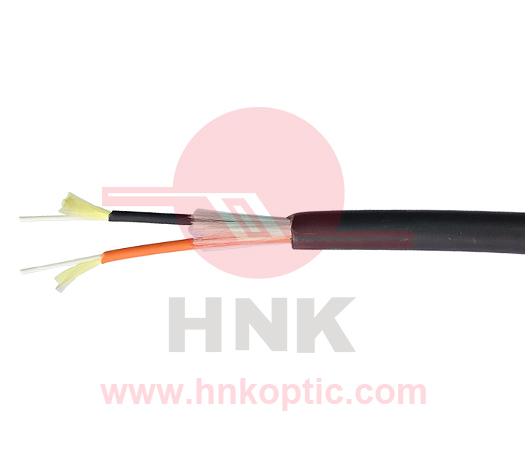

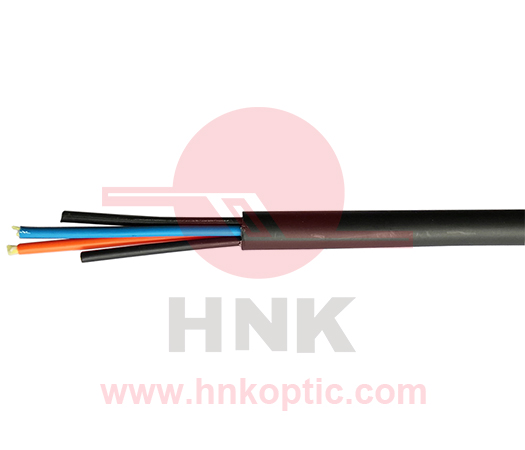

| FTTA-Cable for Wireless Remote Radio Unit | |||||||||
|
|||||||||
Complied with or Exceeds Standard
IEC 60793-2-10 type A1b, TIA/EIA-492AAAA-A IEC 60793-2-10 type A1a.1, TIA/EIA-492AAAB-A.
IEC 60793-2-10 type A1a.2, ISO/IEC 11801 OM-3, TIA/EIA-492AAAC IEEE 802.3z Gigabit Ethernet
IEC 60793-2-10 type A1a.3, ISO/IEC 11801 OM-4, TIA/EIA-492AAAD. IEEE 802.3ae 10 Gigabit Ethernet
IEC 60793-2-10 type Ala.4, ISO/IEC 11801 OM5, TIA/ElA-492AAAE. IEEE 802.3ba 40&100 Gigabit Ethernet
ITU-T Recommendation G.652.D/G.655/G.657.A1/G.657.A2/G.657.B2/G.657.B3
IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2/ B6.b3 Optical Fiber Specification.
ANSI/TIA/EIA 568C.3 ROHS Compliant Directive 2011/65/EU(ROHS2.0)
The unique production technology provides this cable with good excellent mechanical and environment properties. Small diameter, light weight, soft, flexible, water blocked, UV resistant, easy to lay and splice. The non-metallic construction (dielectric) prevents electromagnetic interference and enables application in power lines side by side with energy cables. It is suitable for optical fiber network transmission under harsh outdoor environmental conditions such as RRU, base station, and FTTA.
Mechanical & Environmental Characteristics
Min. Tensile Load (Short Term) | 400N | Min. Tensile Load (Long Term) | 200N |
Min. Crush Load (Short Term) | 1000N/100mm | Min. Crush Load (Long Term) | 500N/100mm |
Bend Radius-Dynamic (mm) | 20D | Bend Radius-Static (mm) | 10D |
UL Fire Rated | OFNR | Sub Unit Jacket Material | LSZH or PVC |

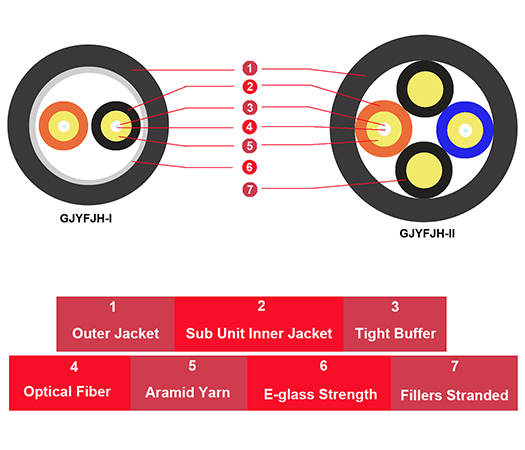

Outer Diameter (mm) | 5.0±0.2mm (GJYFJH-I), 7.0±0.2mm (GJYFJH-II) | ||
Outer Jacket Material | Standard: LSZH Optional: PU, PE or other | ||
Operating Temperature | -40°C to +70°C | Storage Temperature | -40°C to +70°C |
Note: “D” is Cable Outer Diameter.
Ordering Information
Part Number： OC-XX-A(B)CDCL
Ordering Guide
XX | A | B | C | D | CL |
Cable Type Code | Jacket | Fiber/Per Loose Tube or Fiber/Per Sub Unit | Fiber Count | Fiber Type | Jacket Color(CL) |
GJYFJH-I, GJYFJH-Ⅱ | 1=PVC 2=LSZH 3=PE 4=PU | 2=2 Fibers/Loose Tube 12=12 Fibers/Loose Tube …… 2=2 Fibers/Sub Unit 12=12 Fibers/Sub Unit | No. Of Fiber 004F, 048F | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 OM5=50/125 OM5, G652D=9/125 G652D G655=9/125 G655, G657A1=9/125 G657A1 G657A2=9/125 G657A2, G657B3=9/125 G657B3 | As noted in Color code chart |
Color Code
Ordering Sample
Part Number | Description |
OC-GJYFJH-I -22G657A1BK | 2 Cores Singlemode G657A1 GJYFJH-I Fiber Optic Cable, LSZH Jacket, Black Color. |
|
