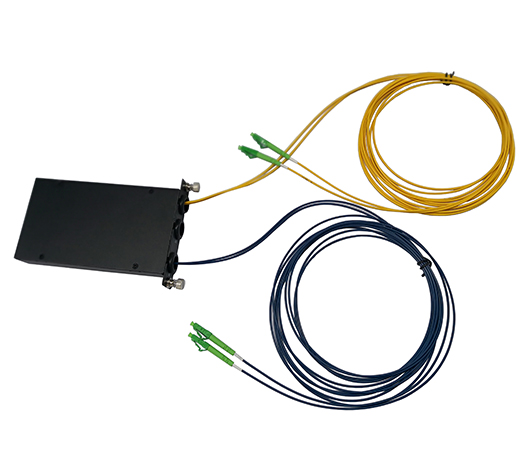

| Cordage Type PLC Splitter Module | |||||||||
|
|||||||||
Standard Compliance
▪ Telcordia GR-1221-CORE-1999 & GR-1209-CORE-2001
▪ TIA/EIA-568B.3 Fiber Optic Cabling Components Standard
▪ IEE802.3z Standards for Fiber Optic Cabling
▪ RoHS Certified for European Market Requirements
Features

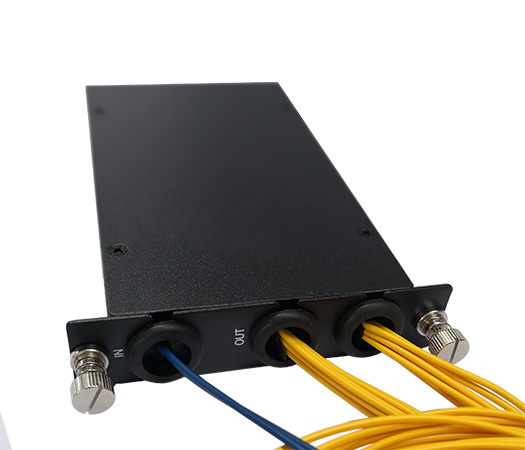

• The strong metal housing protects the ABS body of splitter components housed inside the box.
• Multiple φ2mm simplex fiber cables are pre-terminated at the front of box for fast and reliable remote connecting outside equipment.

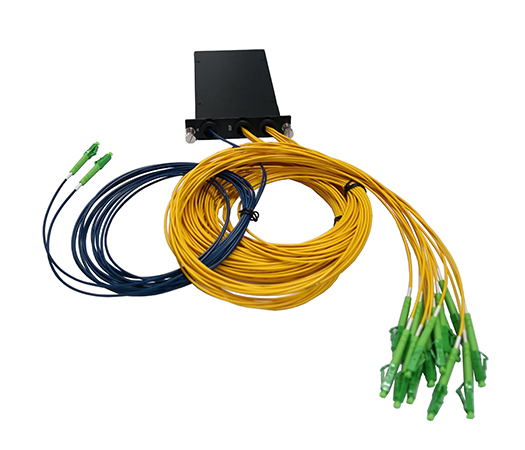

• PLC splitters types include 1 x 2, 1 x 4, 1 x 8, 1 x 16, 2 x 2, 2 x 4, 2 x 8 and 2 x 16 with single mode optical fibers and with LC connectors.
• Cable outer jacket has different colors to distinguish, Input cable blue and output cable yellow, custom lengths
• Module fixing assembly adopt screw combination fasteners, install more firmly.
• Module can be mounted in multi slot splitter module patch panel with 1U or 3U spaces
• Both 2 × 2 and 2 × 16 module occupy only one panel slot.
Specifications
Operating Temperature | -40°C～+85°C | Storage Temperature | -40°C～+85°C |
Box Material | 1.2mm Cold Rolled Steel | Material Coating | Powder |
Module Size (W×H×D) | 25 x 110 x 160mm | Color of Metal Box | Black |
PLC Splitter Ratios | Up to 2 x 16 | PLC Splitter Type | Box Type |
PLC Splitter Mode | Singlemode | PLC Splitter Connector | LC/PC or LC/APC |
Outer Jacket Color | Blue (Input Cable) | Outer Jacket Color | Yellow (Output Cable) |
|
