FTTH Drop Cable & Armoured Cable-HNK Optic Equipment Co.,Limited

Complied with or exceeds Standard
. ITU-T G657A2 (B6)
. GR-326-CORE
. TIA/EIA-568-C.3
. ANSI/TIA/EIA-455B
. RoHS Compliant Directive 2011/65/EU

Features
. Special low-bend-sensitivity G657 fiber provides high bandwidth and excellent communication transmission property.

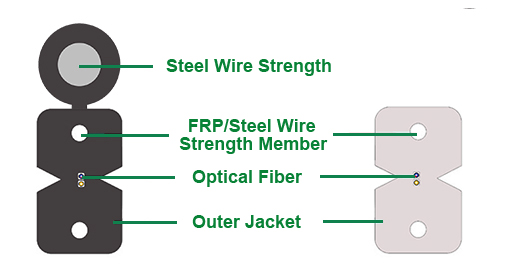

. Two parallel strength members ensure good performance of crush resistance to protect the fibers.
. Simple structure, light weight and high practicability.
. Novel flute design, easily strip and splice, simplify the installation and maintenance.
. The strong steel passenger provided good tensile load during aerial application.
. Single steel wire or FRP as additional strength member ensuring good performance of tensile strength.

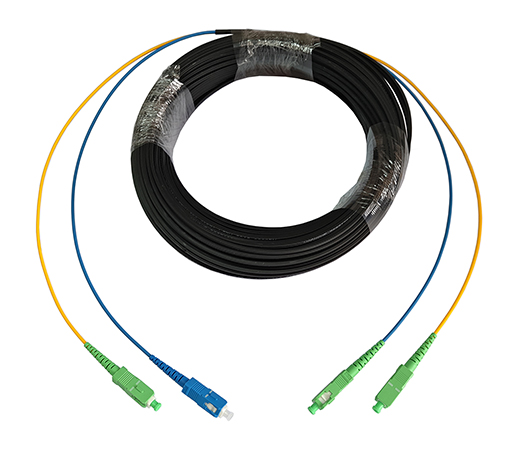

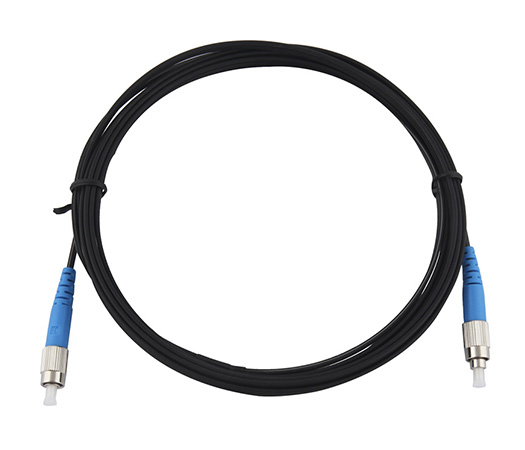

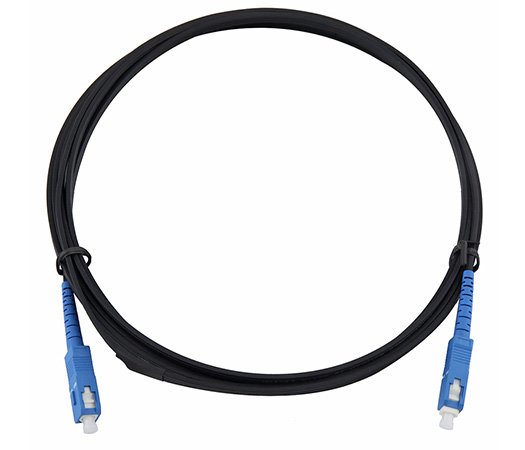

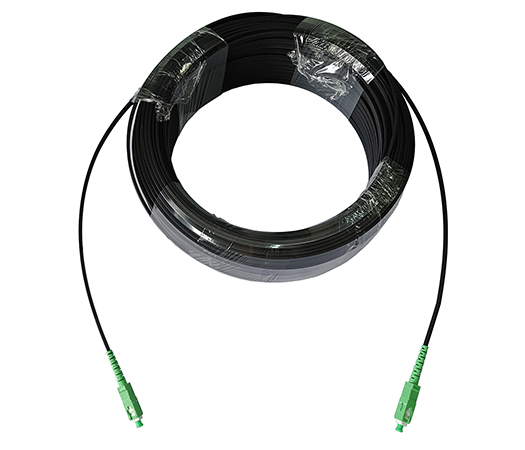

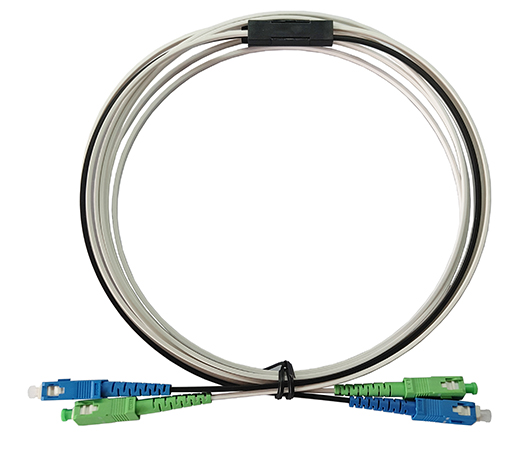

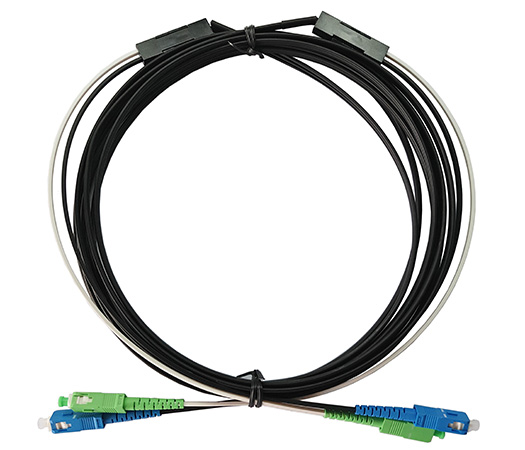

. Drop cable patch cord will be produced to different kind of connectors and different length according to the construction need.

Cable Parameters

Cable Type			GJYXFCH	GJYXCH		GJXFH		GJXH
Fiber Type			G652D, G657A1, G657A2
Fiber count			1~2
Outer Jacket	Diameter		(2.0±0.1) x (5.0±0.1) mm			(2.0±0.1) x (3.0±0.1) mm
	Material		Standard: LSZH Option: PE or other
	Color		Standard: Black or White
Strength Member			FRP	Steel Wire		FRP		Steel Wire
Messenger Wire			Steel Wire	Steel Wire		-		-
Operating Temperature		-40°C to +70°C			Storage Temperature		-40°C to +70°C

Mechanical and Environmental Characteristics

ITEMS	UNITE	GJYXFCH/GJYXCH	GJXH	GJXFH
Min. Tensile Load (Short Term)	N	600	200	80
Min. Tensile Load (Long Term)	N	300	100	40
Min. Crush Load (Short Term)	N/100mm	2200	2200	1000
Min. Crush Load (Long Term)	N/100mm	1000	1000	500
Bend Radius-Dynamic	mm	60mm (G652D), 30mm (G657A1, G657A2)
Bend Radius-Static	mm	30mm (G652D), 15mm (G657A1, G657A2)

Note: The minimum bend radius is only applicable to drop cable without messenger wire.

Optical Performance Data

Item	Single mode			Multimode
	PC	UPC	APC	62.5/125	50/125	50/125 10G
Insert Loss/connector (single Fiber)	0.2dB Max. (0.15dB typ.)			0.3dB Max. (0.25dB typ.)
Return Loss	≥45 dB	≥50 dB	≥60 dB	N.A
Pull Strength	≥98N			≥98N

Optical Characteristics

Charac Teristic		Condition	Unit	G657A2	G657A1	G652D
Attenuation		1310 nm	[dB/km]	≤0.36		≤0.40
Attenuation		1550 nm	[dB/km]	≤0.25		≤0.30
Zero Dispersion Wavelength			[nm]	1300-1324
Zero Dispersion Slope Typical value Typical value			[ps/(nm².km)]	≤0.092		≤0.091
Cable Cutoff Wavelength λсс			[nm]	≤1260
Mode Field Diameter (MFD)		1310 nm	[µm]	8.4~9.2		8.7~9.5
Mode Field Diameter (MFD)		1550 nm	[µm]	9.3~10.3		9.9~10.9
Macro Bending Induced Attenuation	10 Turns Around a Mandrel @ 15mm Radius	1550 nm	[dB]	≤0.03	≤0.25	-
	10 Turns Around a Mandrel @ 15mm Radius	1625 nm	[dB]	≤0.1	≤1.00	-
	1 Turn Around a Mandrel @ 10mm Radius	1550 nm	[dB]	≤0.1	≤0.75	-
	1 Turn Around a Mandrel @ 10mm Radius	1625 nm	[dB]	≤0.2	≤1.50	-
	1 Turn Around a Mandrel @ 7.5mm Radius	1550 nm	[dB]	≤0.2	-	-
	1 Turn Around a Mandrel @ 7.5mm Radius	1625 nm	[dB]	≤0.5	-	-

Ordering Information

Using the available configurations amend/create product codes using the formula below.

Part Number： DPC-AA-BB-CDEFGCL

Ordering Guide

Connector Type

Fiber Type

Fiber Count

Cable Type

Length

Jacket

Materia

Jacket Color (CL)

FP, SP, SA

G652D=9/125 G652D

G657A1=9/125 G657A1

G657A2=9/125 G657A2

SX=Simplex

DX=Duplex

1=GJXFH

2=GJXH

3=GJYXFCH

4=GJYXCH

0015=1.5M

0200=20M

1=LSZH

2=PE

As noted

in Color

code chart

Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC

Color Code

Note: standard color is Black or White (other colors may be available upon request).

Ordering Sample

Part Number	Description
DPC-SP-FP-G657A2SX110001WH	SC/PC-FC/PC Drop Cable Patch Cord, Singlemode G657A2, Simplex, GJXFH Cable, LSZH, White, 100M.
