　 6~12 Ports Mini Wallmount Termination Box

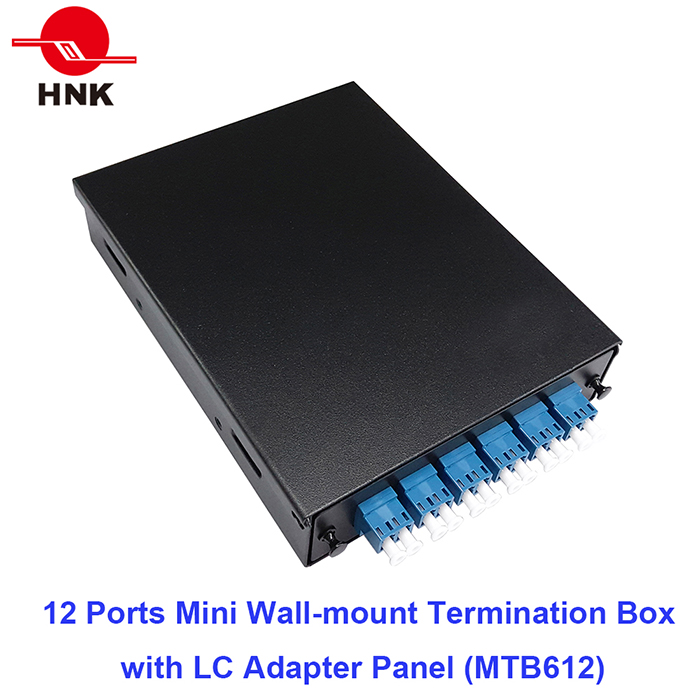

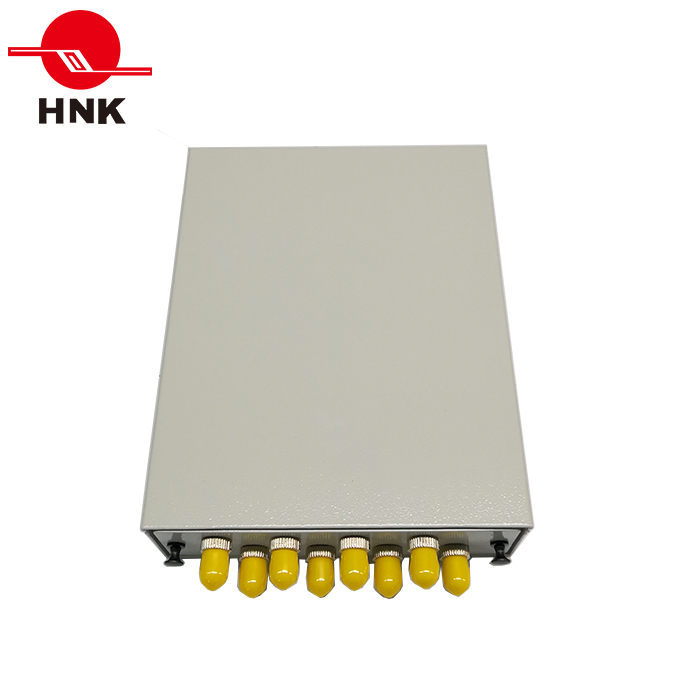

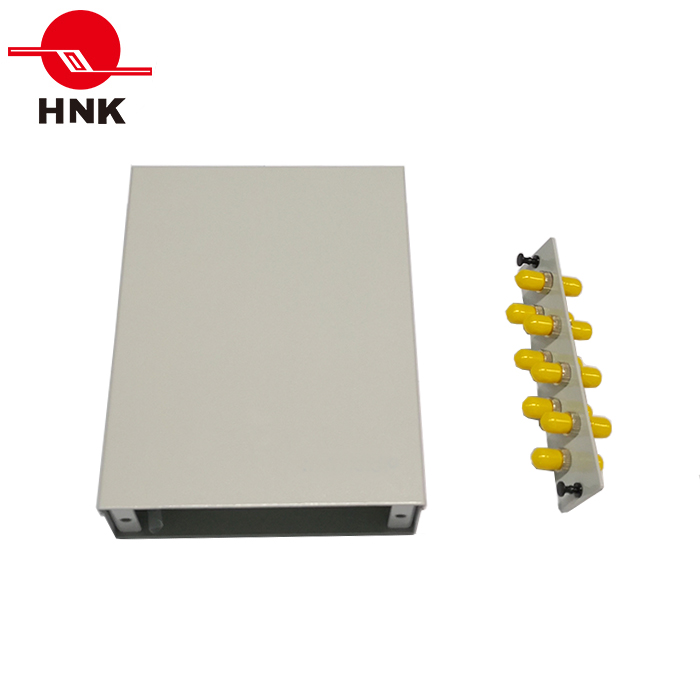

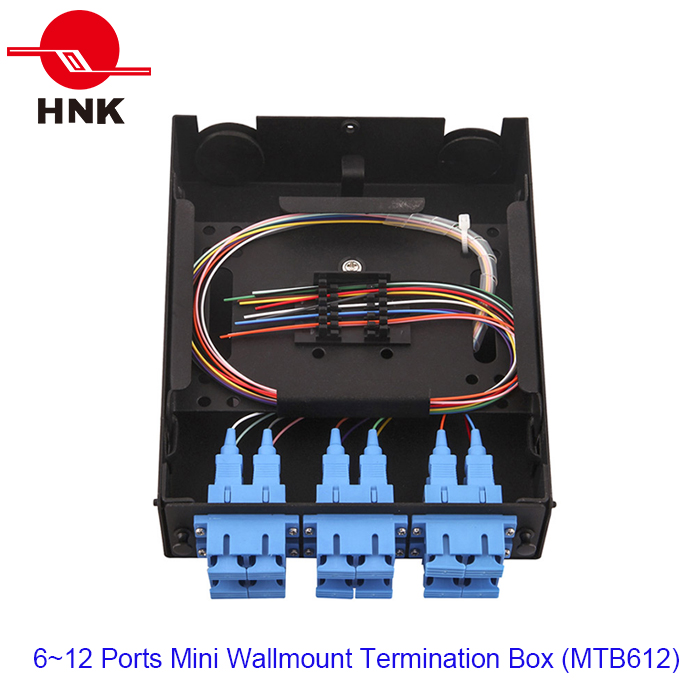

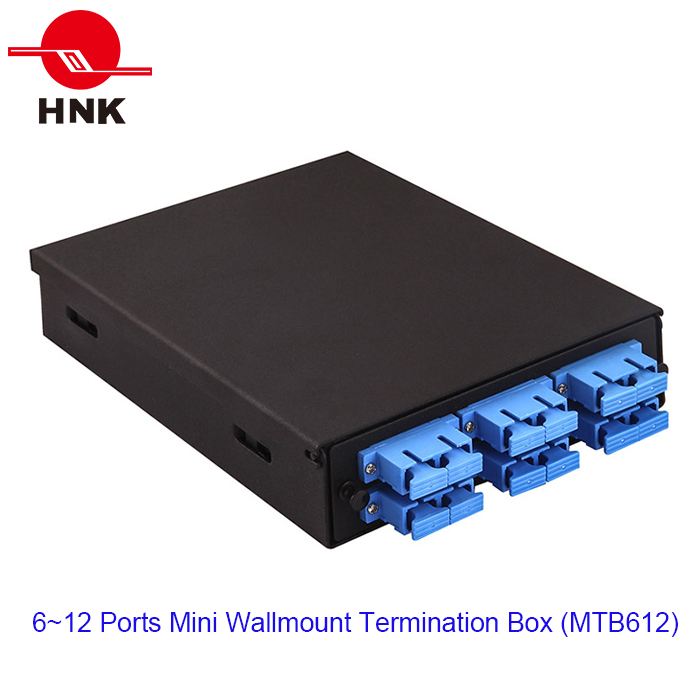

Model:MTB612

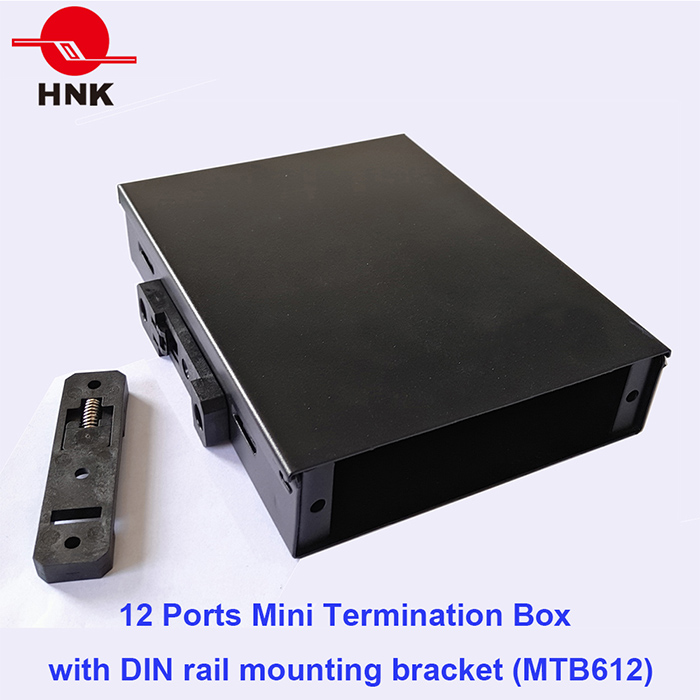

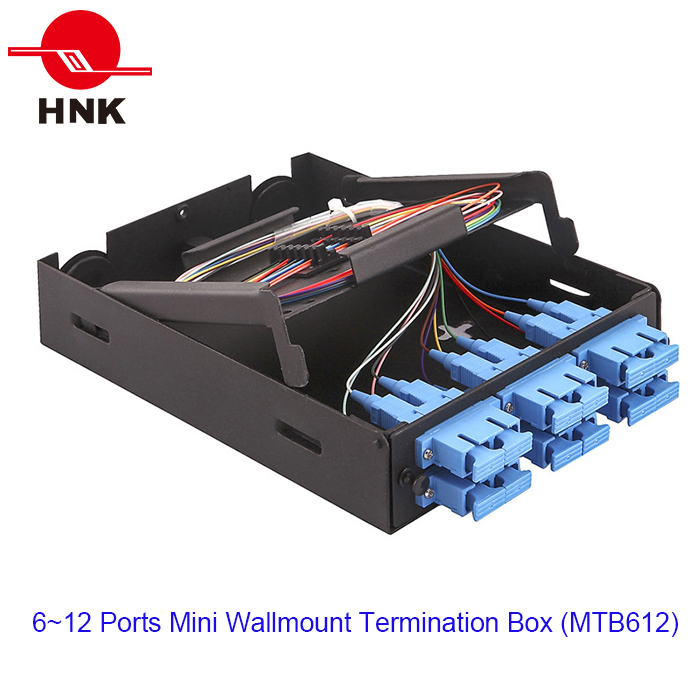

The mini wall mount fiber Termination Box is a compact indoor wall mount enclosure for interconnectivity and termination of optical fibers. Its small size is ideal for use in tight closets, inside cabinets and enclosures. The MTB612 can be flexibly houses with Interchangeable adapter panels for different applications. It is made of high quality steel which delivers superior durability to satisfy your wall mount cabling management need.



  • MTB612-1
    MTB612-1
  • MTB612-2
    MTB612-2
  • MTB612-3
    MTB612-3
  • MTB612-4
    MTB612-4
  • MTB612-5
    MTB612-5
  • MTB612-7
    MTB612-7
  • MTB612-8
    MTB612-8

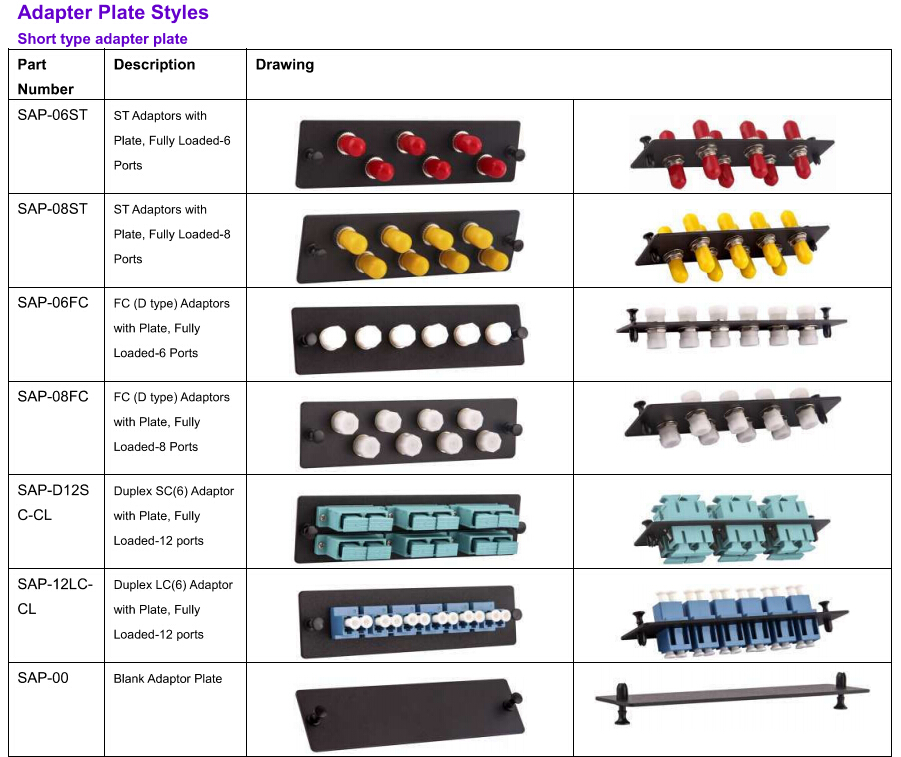

  • SC-12
    SC-12

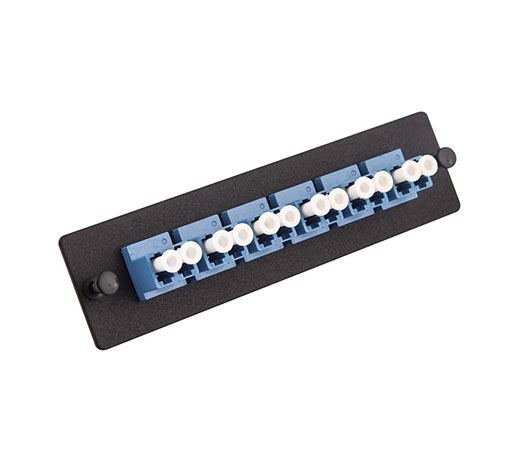

  • LC-12
    LC-12

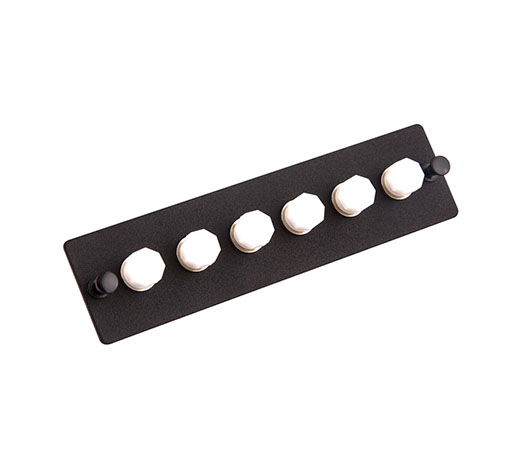

  • ST-6
    ST-6

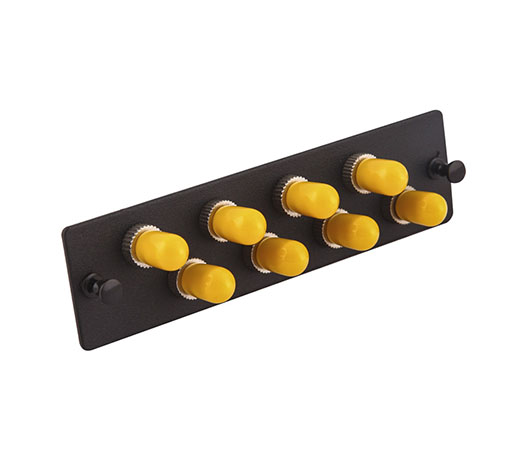

  • ST-8
    ST-8
  • ST-6
    ST-6

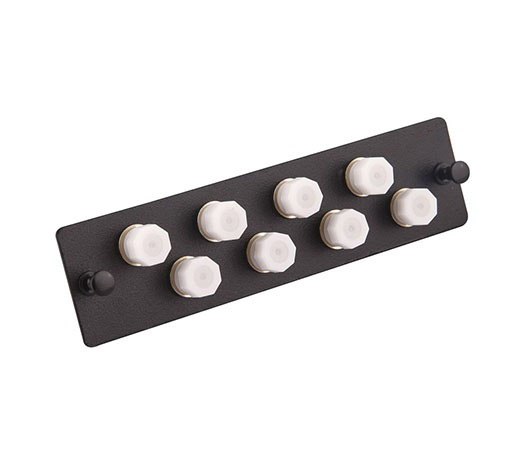

  • ST-8
    ST-8


Standards Compliance
.  TIA/EIA 568.C, Optical Fiber Cabling Components Standard
.  IEC61754, Fiber optic connector interfaces Standard
.  ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
.  GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
.  UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
.  RoHS (Directive on Restriction of Hazardous Substances. )

Features

▪  Options of 6, 8, 12 fiber capacity.
▪  Compact size, Ideal for small locations.
▪  Box holds one fiber adapter panel.
▪  Accepts FC, SC, ST or LC adapters.
▪  Small splice tray accommodates up to 12 fibers.
▪  2 cable entry ports on the top of box.
▪  DIN rail mounting bracket optional.

Specifications


Working Temperature -25～+60°C Storage Temperature -40～+70°C
Humidity 93%(+30°C) Air Pressure 70KPa～106KPa
Size (W×H×D) mm 133 x 172 x 32 Weight (kg) 0.7
Color Black (Powder Coating) Material 1.2mm Cold Rolled Steel
Capacity (Cores) 12(SC, LC)，
6 or 8(FC, ST, SC) 		Connect Models Fusion splicing
Installation Models Wall Mounted or DIN Rail
Mounted 		Cable Gland PG13.5
Cable Diameter Φ6-Φ12mm Cable Input Ports 2




Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DE)(FGH)

Ordering Guide

XXTermination box TypePTB=Plastic Termination box, MTB=Metal Termination box
AAProduct IDMTB612
BBFiber Capacity01=1 Fiber, 02=2 Fibers, 04=4 Fibers, 16=16 Fibers
CconfigurationE=only Termination box, L=With Adaptor, F=With Adaptor Plate and Pigtail
DAdaptor TypeSP,LA,FP,TP.
EAdaptor ModeSM=Singlemode, MM=Multimode, OM3=Multimode 10G
FConnector TypeFP,SP,SA,LP
GFiber TypeOM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3,
OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A
HFiber Length05=0.5M, 10=1M


Adaptor Type & Connector Type Code

CodeConnector CodeConnector CodeConnector CodeConnector
FPFC/PCFAFC/APCLPLC/PCLALC/APC
SPSC/PCSASC/APCTPST/PCTAST/APC
MUMUDNDINMTMTRJE2E2000


Ordering Sample

Part NumberDescription
MTB612-12E12 Fiber MTB612 Type Termination Box, without adaptor plate and pigtail.
MTB612-08LTPSM8 Fibers MTB612 Type Termination Box With Singlemode Simplex ST/PC Adaptor Plate.
MTB612-12LLPMM12 Fibers MTB612 Type Termination Box With Multimode  Duplex LC/PC Adaptor Plate.
MTB612-12LSPOM312 Fibers MTB612 Type Termination Box With Multimode 10G Duplex SC/PC Adaptor Plate.
MTB612-12FLPG652D1012 Fibers MTB612 Type Termination Box With Singlemode Duplex LC/PC Adaptor Plate and 1M Singlemode LC/PC Pigtail.
MTB612-12FSAG652D1012 Fibers MTB612 Type Termination Box With Singlemode Duplex SC/APC Adaptor Plate and 1M Singlemode SC/APC Pigtail.
