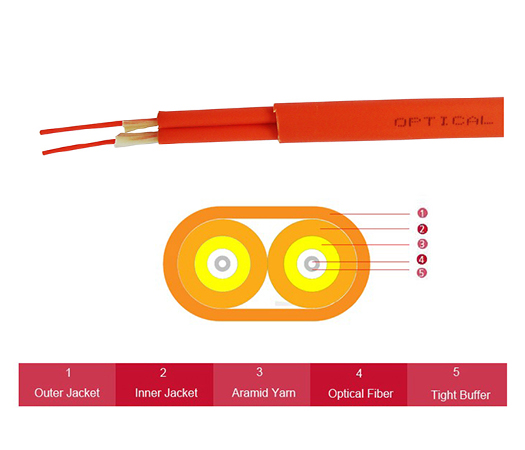

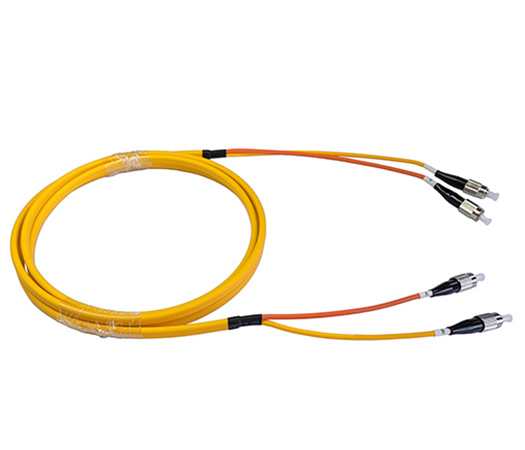

| Duplex Ruggedized Flat Fiber Optic Patch Cord | |||||||||
|
|||||||||
Standards Compliance.
. Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
. Cable flame resistant rate: OFNR or IEC60332-3 standard
Features
. 100% tested on optical performance (insertion loss & return loss).
. Standard color is yellow, orange or aqua, other colors available upon request.
. Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH).
. PC, UPC, APC connectors type available.
. High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU.
. Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types.
Optical Performance Data
Item | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) | ||||
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A | ||
Pull Strength | ≥98N | ≥98N | ||||
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： RFPC-AA-BB-CDFCL
Ordering Guide
AA | BB | C | D | F | CL |
Connector Type | Connector Type | Fiber Type | Length | Jacket Materia | Jacket Color(CL) |
FP, SP, SA, LP | FP, SP, SA, LP | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 G652D=9/125 G652D, G657A1=9/125 G657A1 | 0015=1.5M 0200=20M | 1=PVC 2=LSZH | As noted in Color code chart |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |
Color Code
Note: Yellow Jacket for SM, Orange Jacket for OM1~OM2, Aqua Jacket for OM3 and Purple Jacket for OM4.
(other colors may be available upon request).
Ordering Sample
Part Number | Description |
RFPC-SP-LA-G652D00302YE | SC/PC-LC/APC Duplex Ruggedized Flat Fiber Optic Patch Cord, Singlemode G652D, LSZH, Yellow, 3M. |
|
