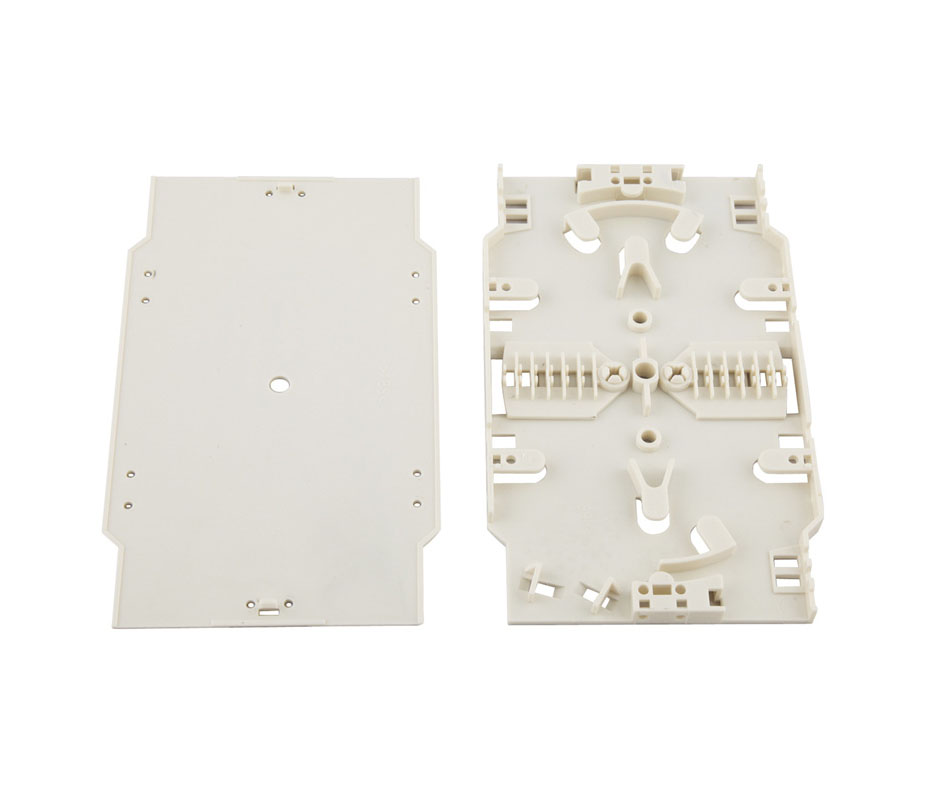

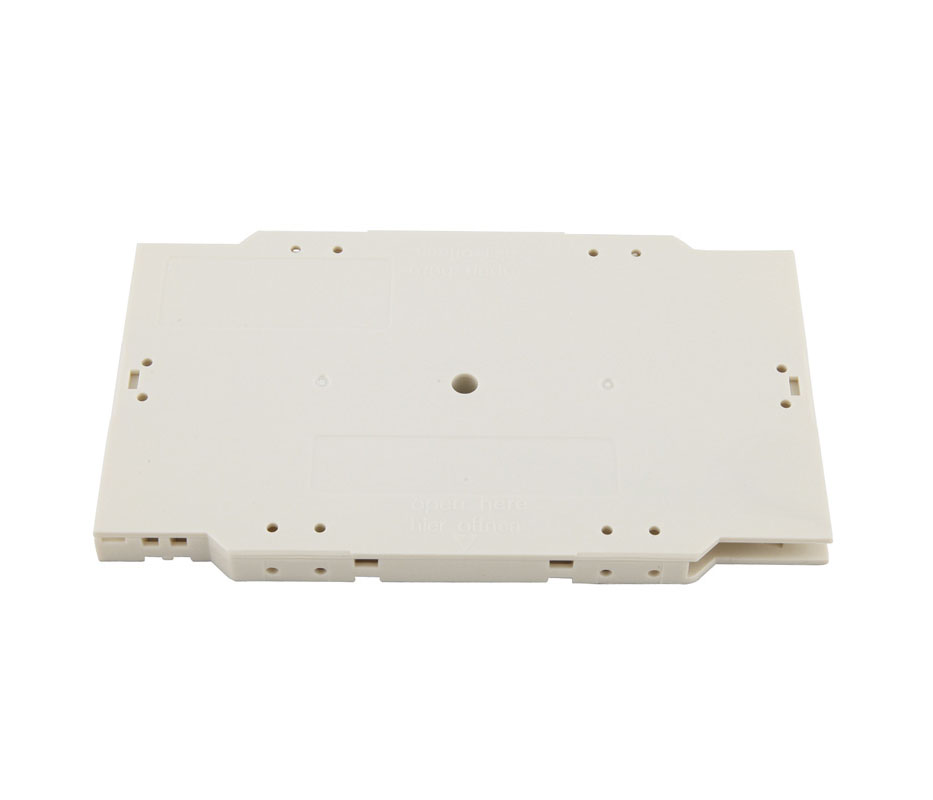

| 12 Cores Fiber optic Splice Tray (FST-A Series) | |||||||||
|
|||||||||
Complied with or exceeds Standard
▪ TIA/EIA 568.C (Optical Fiber Cabling Components Standard).
▪ ISO/IEC 11801(Generic cabling for customer premises).
▪ IEC 61073-1, Mechanical splices and fusion splice protectors for optical fibers and cables .
▪ EN50173( Telecommunications Infrastructure Standard for Data Centres).
▪ 2011/65/EU(ROHS2.0, Directive on Restriction of Hazardous Substances.).
Features
▪ Center holes for mounting of the tray.
▪ Multiple tie down holes for securing incoming fiber.
▪ Storage and protect splice fibers.
▪ Scientific design with large bent radius, simple to install and operate.
▪ Durable ABS material used for long time; repeatable operation.
▪ Accommodate standard heat shrink sleeves in 40~60mm lengths with 2.5 mm diameter.
▪ Installable in Wall Mount & slidable patch panel & splice closures

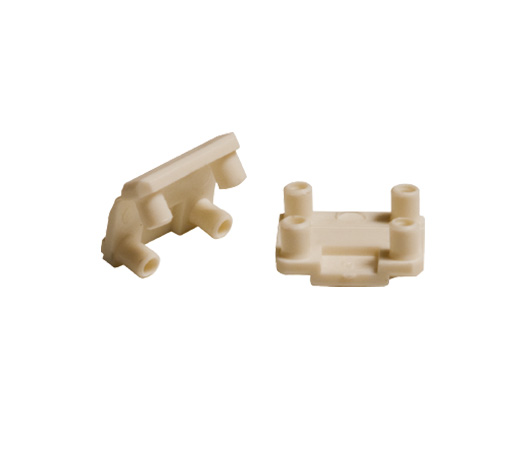

▪ Using a hinge with a splice tray allows access to stacked splice trays without disturbing surrounding fibers.
Specification
Part Number | FST-A12 | FST-A24 |
Dimension(L x W x H) | 155 x 92 x 10 mm | 155 x 92 x 14 mm |
Body & Cover Material | ABS | |
Body & Cover Color | White or Black | |
Splice Capacity | 12 | 24 |
Operating Temperature | -40°C to +60°C | |
Ordering Information
| Part Number | Description |
| FST-A12 | 12 cores Splicing Tray. |
| FST-A24 | 24 cores Splicing Tray. |
|
