Complied with or exceeds Standard
▪ TIA/EIA 568.C (Optical Fiber Cabling Components Standard).
▪ ISO/IEC 11801(Generic cabling for customer premises).
▪ 2011/65/EU(ROHS2.0, Directive on Restriction of Hazardous Substances.).
Features
▪ Bundles cables, wire together efficiently and economically.
▪ Flexible construction enable bands to follow wire ways easily.
▪ Keep all your wires tidy with spiral cable binding.
▪ Durable, reusable with retained spiral strength.
▪ Expand spiral range with out any limit.
▪ Excellent protection against mechanical wear.
▪ Reduces cable and line breakdowns, maintenance and downtime costs.
Specifications
| Material |
PE |
| Color |

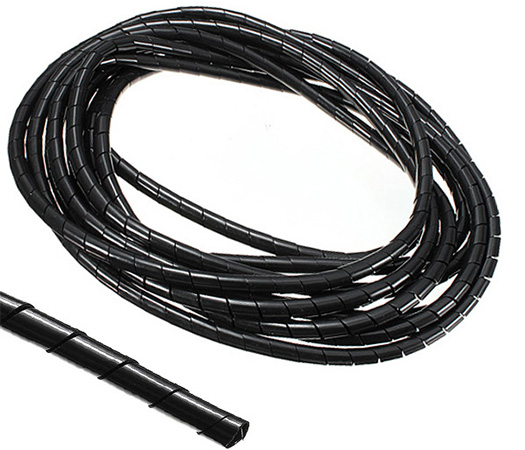

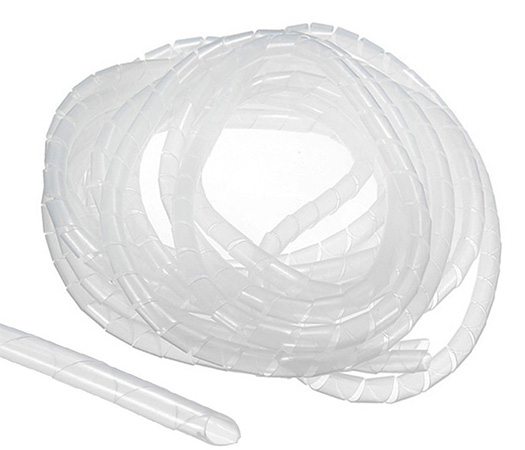

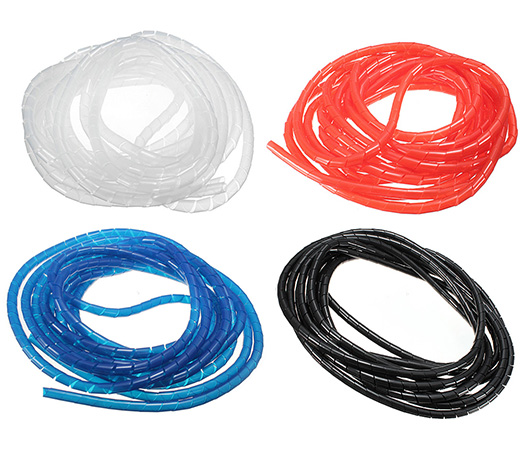

Natural and Black (other colors may be available upon request). |
| Design |
Tube-Shaped flexible spiral tube ( spring type ) |
| Usage: |
fix one end with cable tie first, then wrap cables/ wires in clockwise direction to tighten. |
| Temperature Range |
-20° C to 60°C |

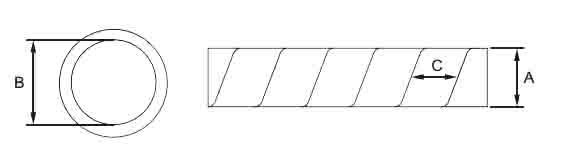

Ordering Information
| Item Code |
Outside Diameter (OD)
(mm) |
Inner Diameter (ID)
(mm) |
Width (W)
(mm) |
Wrapping Range
(mm) |
Packing |
| SWB-03 |
3 |
1.5 |
4.0 |
1.5~18 |
10M/ Bag |
| SWB-06 |
6 |
4 |
7.0 |
4~50 |
| SWB-08 |
8 |
6 |
10.8 |
6~60 |
| SWB-10 |
10 |
7.5 |
11.4 |
7.5~60 |
| SWB-12 |
12 |
9 |
13.9 |
9~65 |
| SWB-15 |
15 |
12 |
15.0 |
12~75 |
| SWB-19 |
19 |
15 |
18.2 |
15~100 |
| SWB-24 |
24 |
20 |
19.6 |
20~130 |
