Standards Compliance
. TIA/EIA 568.C, Optical Fiber Cabling Components Standard
. IEC61754, Fiber optic connector interfaces Standard
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )

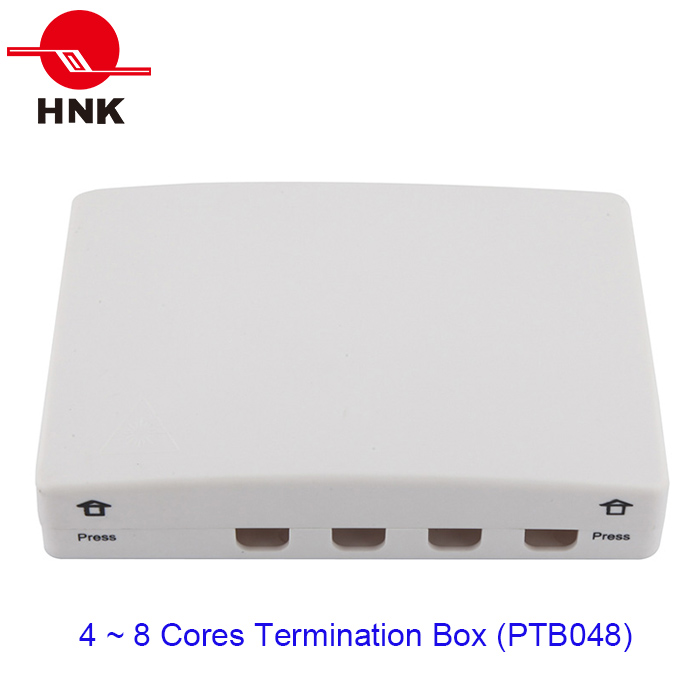

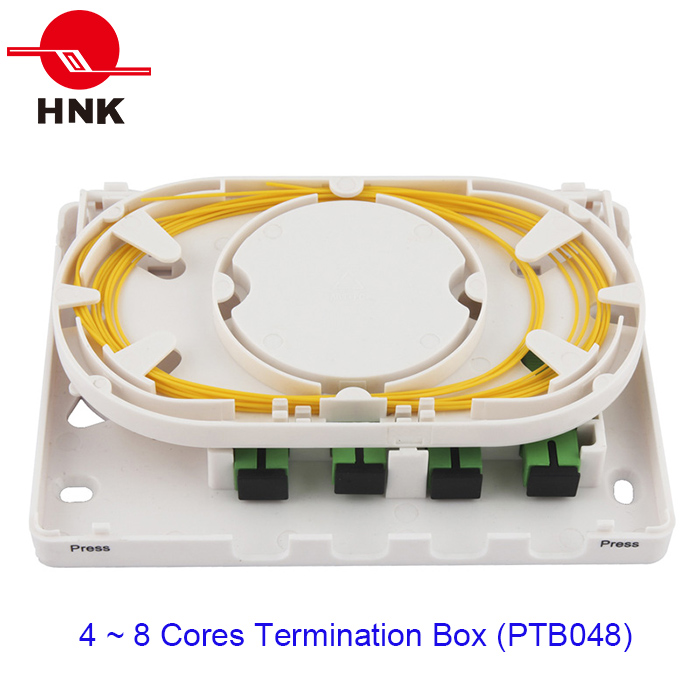

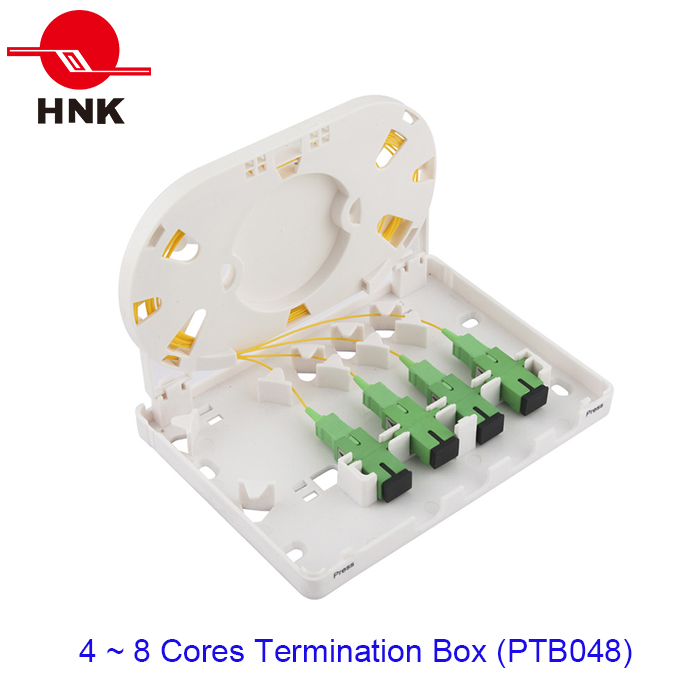

Product Features
. Modern design concept, graceful appearance and convenience operation.
. Desktop or Wall mounted, white color, graceful style and good adaptability to environment.
. Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact. All the materials complied with ROHS standard.
. Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
. Remarkable laser warning identification.
. With clear introductions, effectively prevent the miss-operation.
. Easy operation, saving installation working hours, lower costs.
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DE)(FGH)
Ordering Guide
| XX | Termination box Type | PTB=Plastic Termination box, MTB=Metal Termination box |
| AA | Product ID | PTB048 |
| BB | Fiber Capacity | 01=1 Fiber, 02=2 Fibers, 04=4 Fibers, 16=16 Fibers |
| C | configuration | E=only Termination box, L=With Adaptor, F=With Adaptor and Pigtail |
| D | Adaptor Type | SP,LA,FP,TP. |
| E | Adaptor Mode | SM=Singlemode, MM=Multimode, OM3=Multimode 10G |
| F | Connector Type | FP,SP,SA,LP |
| G | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3,
OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
| H | Fiber Length | 05=0.5M, 10=1M |
Adaptor Type & Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
| MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |
Ordering Sample
| Part Number | Description |
| PTB048-04E | 4 Fibers PTB048 Type Termination Box, without adaptor and pigtail. |
| PTB048-04LSASM | 4 Fibers PTB048 Type Termination Box With Singlemode Simplex SC/APC Adaptor. |
| PTB048-08FLAG652D10 | 8 Fibers PTB048 Type Termination Box With Singlemode Duplex LC/APC Adaptor and 1M Singlemode SC/APC Pigtail. |
