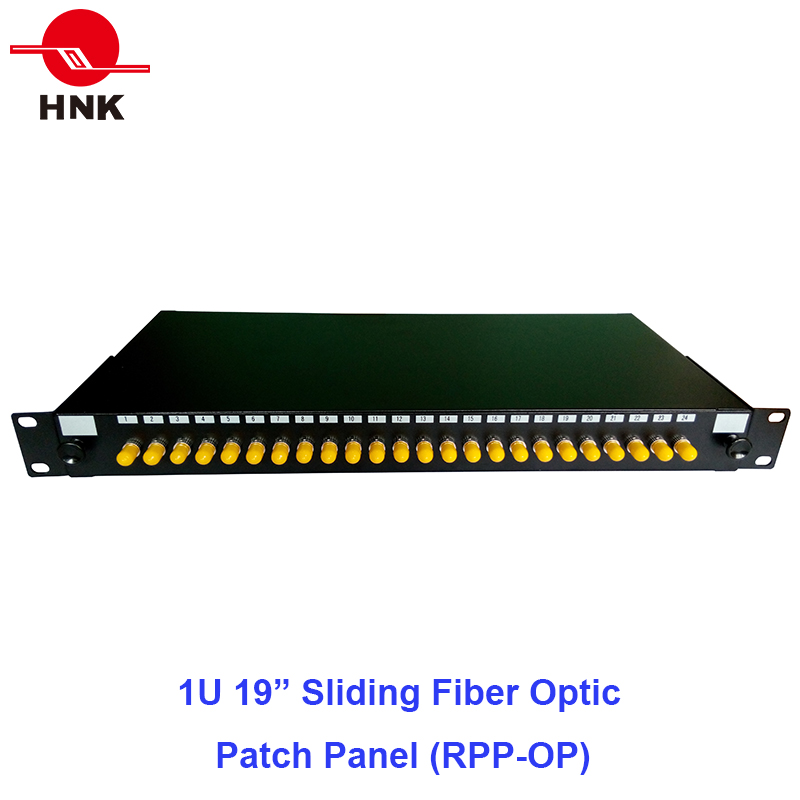

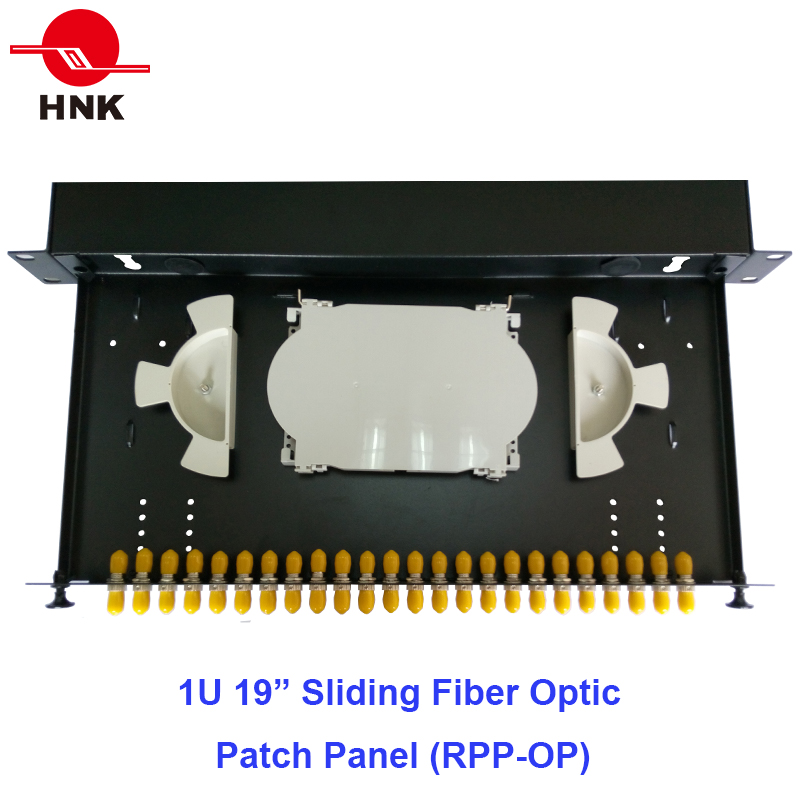

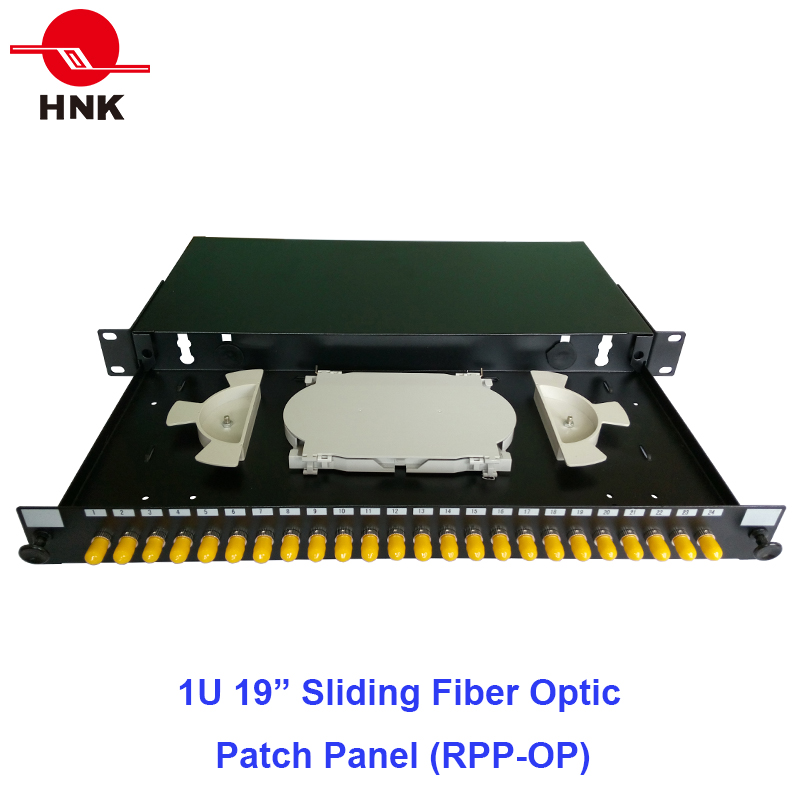

| 1U 19” Sliding Fiber Optic Patch Panel | |||||||||
|
|||||||||
Certification and Compliance
. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Features
. Easy to use opening/closing fasteners.
. Smooth and convenient mechanical sliding system.
. Removable and exchangeable front frame.
. Individually labelled ports.
. Can hold up to 24 or 48 fibers housed within a 1U space.
. Multi adapter options available within 24 ports.
. 4 cables entries, cable glands to secure the incoming fiber, allows min movement.
. Available in loaded to requirement with adapters, pigtails, fiber management and other accessories.
Specifications
Patch Panel | |||
Size (H×W×D) (mm) | 1U(H) x 19”(W) x 212mm(D) | Weight (kg) | 2.4 |
Material | 1.2mm Cold Rolled Steel | Humidity | 0-90%, non-condensing |
Material Coating | Powder | Operating Temperature | -10°C to 60°C |
Colour | RAL 9004 | Storage Temperature | -40°C to 85°C |
Adaptor | |||
Multimode Insertion Loss | 0.2dB Maximum | Multimode Adaptor Wavelength | 850 to 1300nm |
Singlemode Insertion Loss | 0.2dB Maximum | Singlemode Adaptor Wavelength | 1310 to 1550nm |
Mating durability | >500 Mating Cycles | ROHS Compliant | Yes |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DEF)
Ordering Guide
XX | Patch Panel Type | WPP=Wall Mount Patch Panel, RPP=Rack Mount Patch Panel |
AA | Product ID | OP |
BB | Port Capacity | 12=12 Ports, 18=18 Ports, 24=24 Ports, 36=36 Ports |
C | Configuration | E=only patch pane, L=With Adaptor Panels, F=With Adaptor Panels and Pigtails |
D | Connector Type | FP, SP, SA, LP |
E | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
F | Fiber Length | 05=0.5M, 10=1M, 20=2M |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Ordering Sample
Part Number | Description |
RPP-OP-E | 1U RPP-OP Type Rack Mount Patch Panel Without Adaptor Plate And Pigtail. |
RPP-OP-24FTPG652D10 | 1U 24 Fibers RPP-OP Type Rack Mount Patch Panel With Simplex ST/PC SM Adaptor And 1M Singlemode G652D ST/PC Pigtail. |
|
