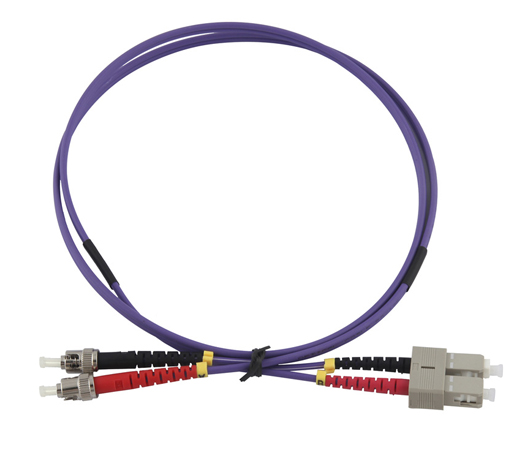

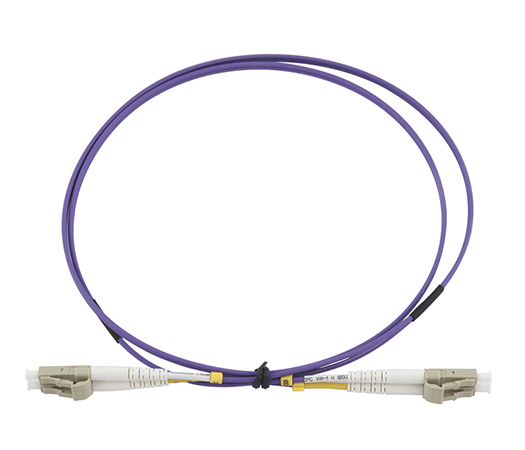

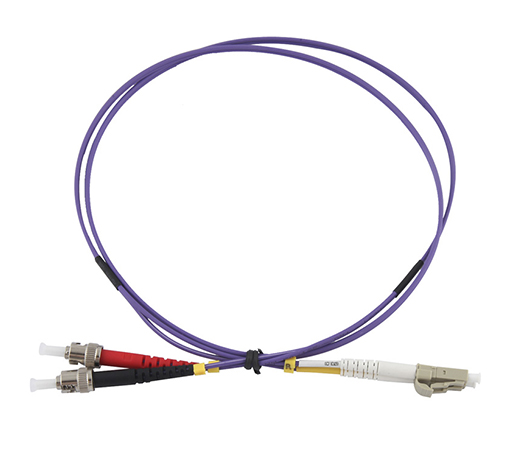

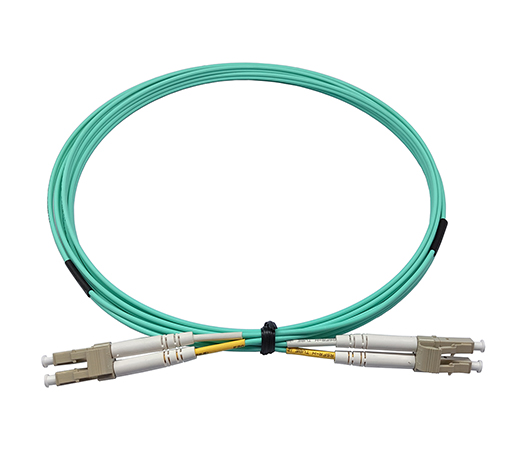

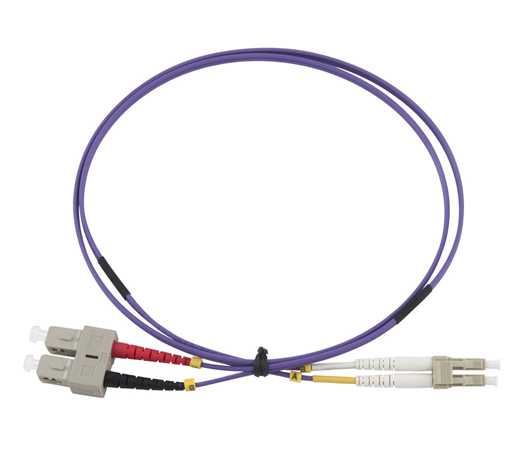

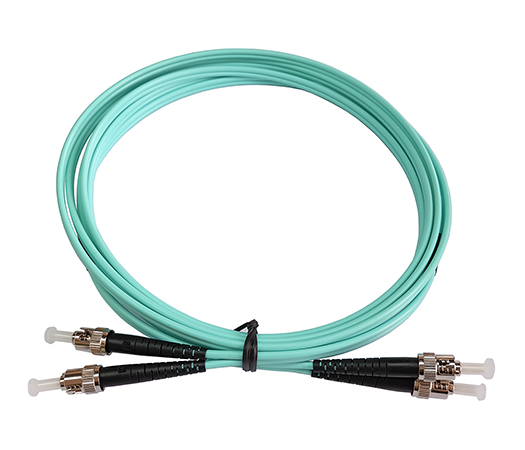

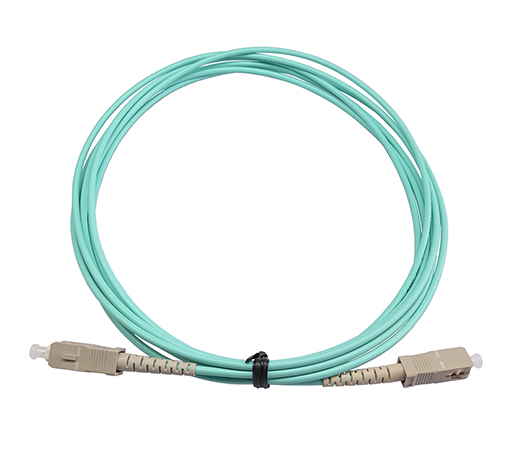

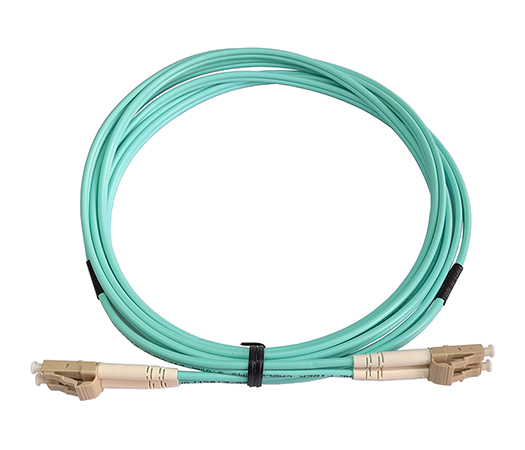

| Multimode-OM4-50/OM3-50-Patch Cord | |||||||||
|
|||||||||
Standards Compliance.
. Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
. Cable flame resistant rate: OFNR or IEC60332-3 standard
Features
. 100% tested on optical performance (insertion loss & return loss).
. Standard color is yellow, orange, aqua or purple, other colors available upon request.
. Cable outer jacket available in PVC, LSZH (low smoke zero halogen).
. PC, UPC, APC connectors polishing type available.
. High concentricity 2.5mm ceramic ferrule for FC, ST, SC connectors
and 1.25mm ceramic ferrule for LC and MU connectors.
. Available in G652D, G657A1, G657A2, OM1, OM2, OM3 and OM4 fiber.
. Duplex patch cord connectors with position A/B marking.
. Customer specified patch cord length.
. Available in 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm sizes in simplex and duplex.
Mechanical, Environmental & Material Data
Range of Mode | Singlemode or Multimode | Cable Type | Simplex or Duplex (Zip Cord) | |
Connector Style | SC, FC, ST, LC, MU, MTRJ, E2000, DIN, D4 | Cable Diameter | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm | |
Polish or Ferrule Interface Type | PC, UPC, APC | Strength Member | Aramid Yarn | |
Cable Lengths | Standard & Custom Lengths | Outer Jacket | PVC or LSZH | |
Cable Assembly Length (<15 Meter Tolerance) | -0/+100mm | |||
Cable Assembly Length (>15 Meter Tolerance) | -0/+10% | |||
Jacket Color (Multimode: OM1 & OM2) | Orange | |||
Jacket Color (Multimode: OM3) | Aqua | |||
Jacket Color (Multimode: OM4) | Aqua or Purple | |||
Jacket Color (Single Mode: G652D & Gb57A) | Yellow | |||
Durability | 500 cycles (0.2 dB max increase), 1000 mate/demate cycles | |||
Operating Temp | -25 ˚C to +70˚C/+85˚C (armoured) | Storage Temp | -40 ˚C to +85˚C | |
Optical Performance Data
Item | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) | ||||
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A | ||
Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) | ||||
Pull Strength | ≥98N | ≥98N | ||||
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： PC-AA-BB-CDEFGCL
Ordering Guide
AA | BB | C | D | E | F | G | CL |
Connector Type | Connector Type | Fiber Type | Fiber Count | Boot fit for cable diameter | Length | Jacket Materia | Jacket Color(CL) |
FP, SP, SA, LP | FP, SP, SA, LP | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A1=9/125 G657A1 G657A2=9/125 G657A2 | SX=Simplex DX=Duplex | 09=0.9mm 16=1.6mm 20=2.0mm 30=3.0mm | 0015=1.5M 0200=20M | 1=PVC 2=LSZH | As noted in Color code chart |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |
Color Code
Note: Yellow Jacket for SM, Orange Jacket for OM1~OM2, Aqua Jacket for OM3 and Purple Jacket for OM4.
(other colors may be available upon request).
Ordering Sample
Part Number | Description |
PC-SP-LA-G652DSX3000302YE | SC/PC-LC/APC Fiber Optic Patch Cord, Singlemode G652D, Simplex, 3.0mm, LSZH, Yellow, 3M. |
|
