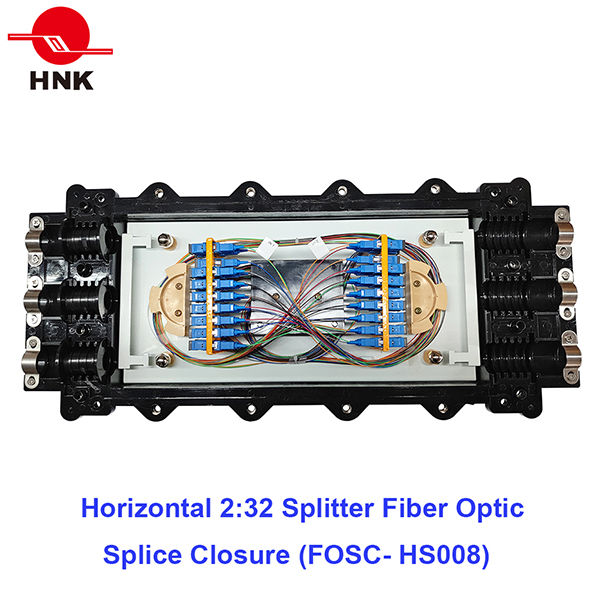

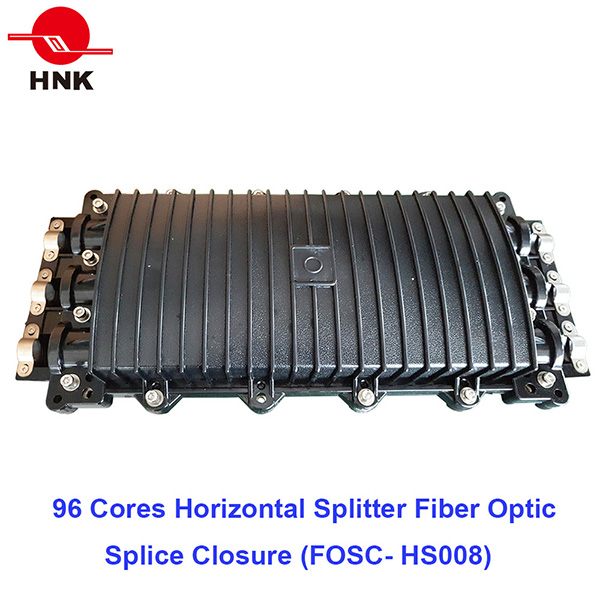

| 96 Cores Horizontal Splitter Fiber Optic Splice Closure | |||||||||
|
|||||||||
. YD/T814.1-2004,
. YD/T814.2-2005
. ITU L.13-2003,
. IEC1073-1：1994
Features
▪ To adopt engineering PC plastic with high-strength to make the closure has longer life time.
▪ The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) and insulation tape.
▪ The sealing structure keep good sealing performance after re-entry and re-using.
▪ The closure is spacious enough for winding and storing fibers.
▪ Unique configuration of the plug to cover unused inlets.
▪ Overlapping splice trays are easy to insert and remove without affecting splitter.
▪ It is multi-functions, with different capacity PLC splitter and adaptor panels, it could work for branch splicing, splitting and patching, can accommodate up to 96 cores.

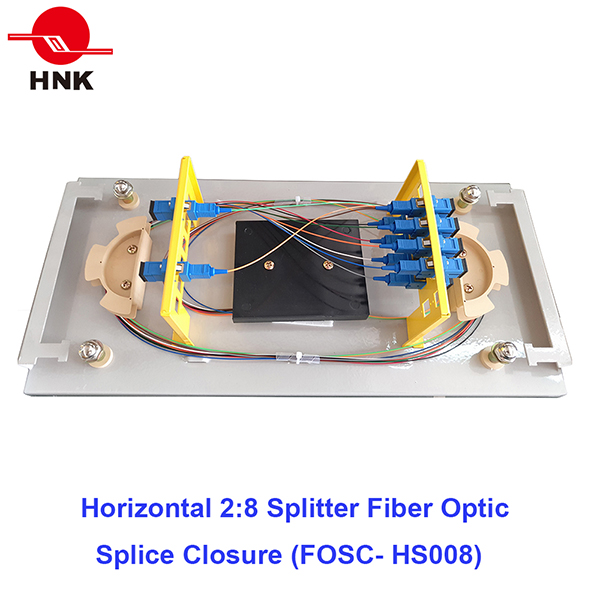

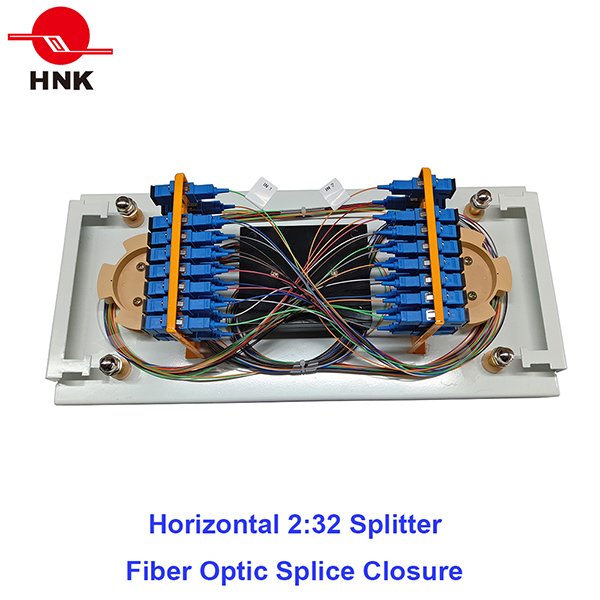

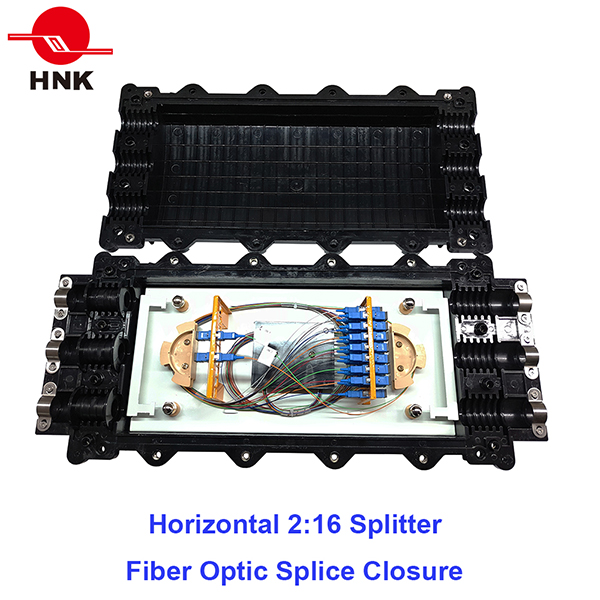

▪ Micro PLC splitter types supported: 1×16, 1×32, 2×32, dual 1×16, dual 1×8, dual 1×4, dual 1×2.

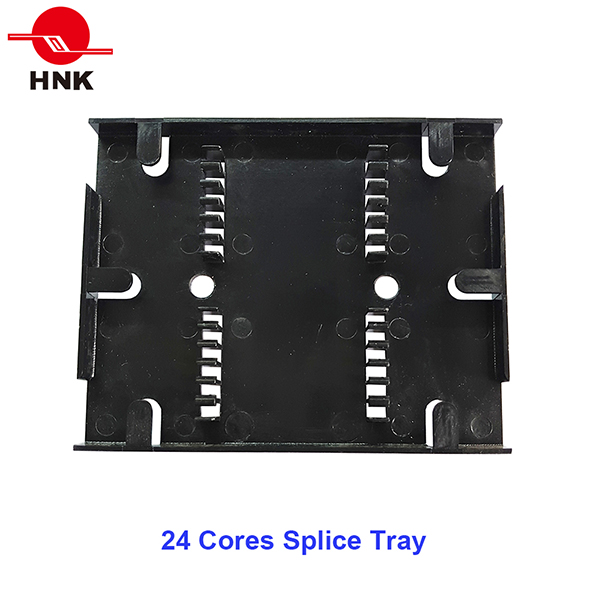

Optical Splice Trays
Splice Tray Capacity | 12-24 Fibers |
Number of Splice Trays | up to 4 |
Size (L×W×H) mm | 100*80*10 |
Specifications
Working Temperature | -25～+60°C | Storage Temperature | -40～+70°C |
Humidity | 93%(+30°C) | Air Pressure | 70KPa～106KPa |
Size (L×W×H) mm | 580*255*140 | Weight (kg) | 5 |
Color | Black | Material | PC (ROHS standard) |
Max. Capacity (Cores) | 96 | Max Ratio: | 2:32 |
Suitable for Cable Diameter | Φ6-Φ20mm | Curvature Radius (mm) | ≥30 |
Cables Entry & Exit | 6 ports | Protective Level | IP65 |
Sealing Method | adhesive rubber strip and insulation tape | ||
|
