| 2u 19 | |||||||||
|
|||||||||
Certification and Compliance
. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )

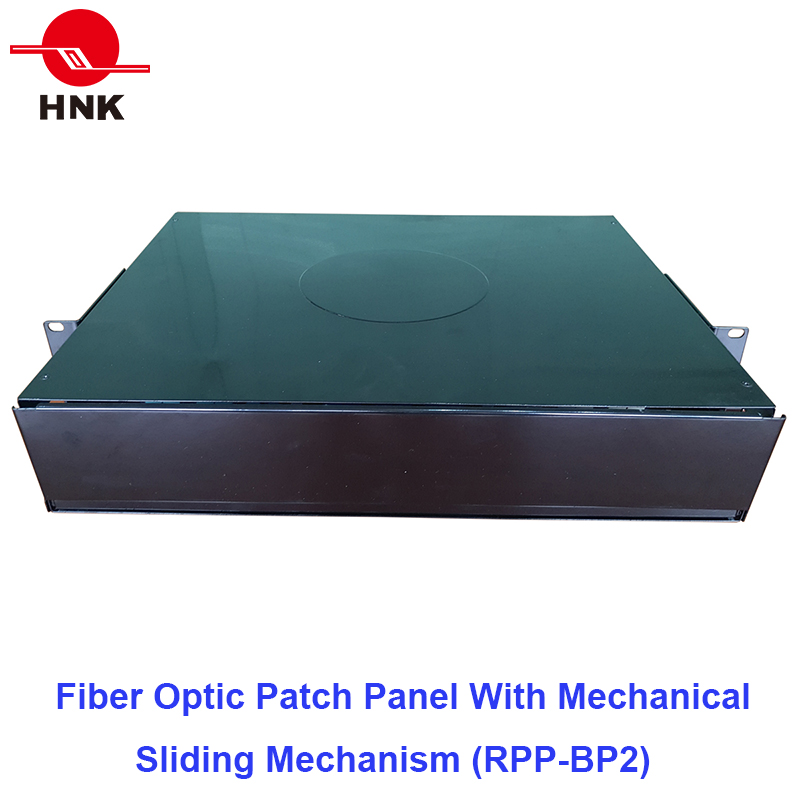

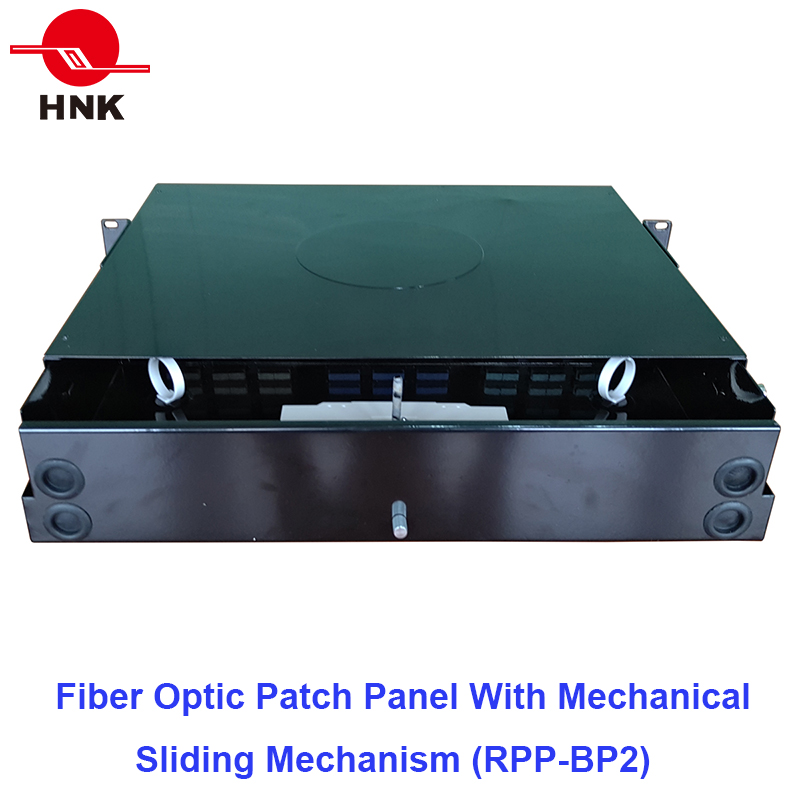

Features
. Magnetic lock system ensures easy closing/opening.

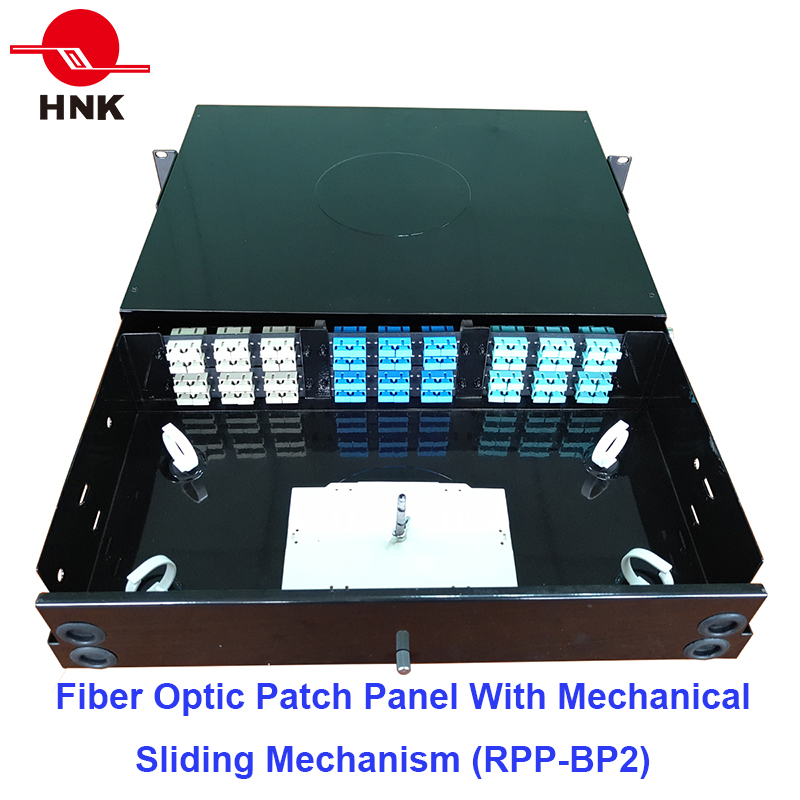

. Easy access with slide-in pull-out system.

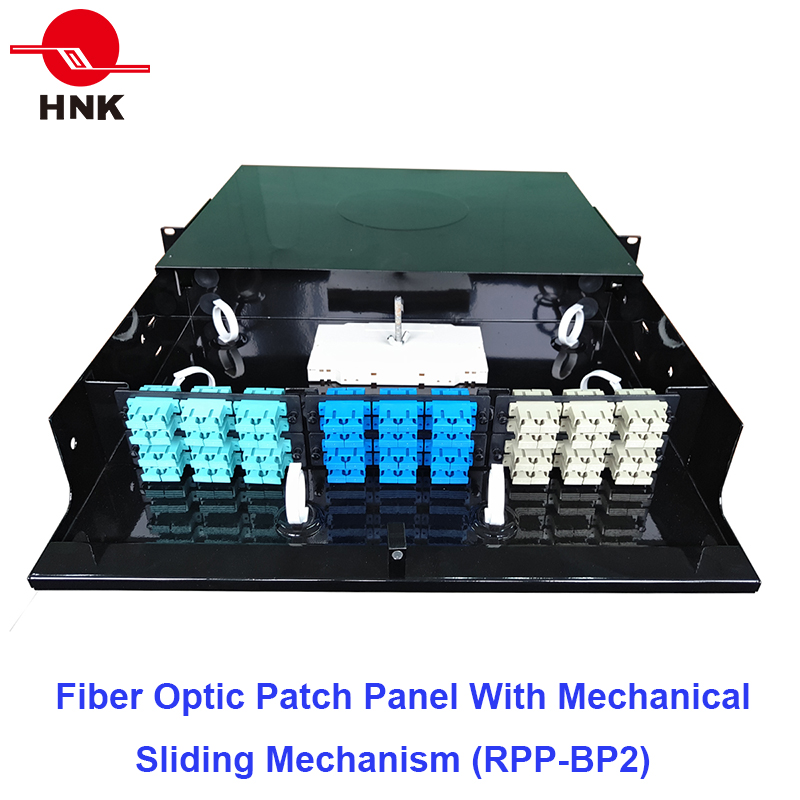

. Sliding tray for access to both front and rear.
. Glossy black powder-coated for a long-lasting, rust resistant finish
. Extended depth, allow more working space for splicing applications or cable storage
. 2U rackmount can be loaded with up to 6 panels (6-, 8-, or 12- fiber panels).

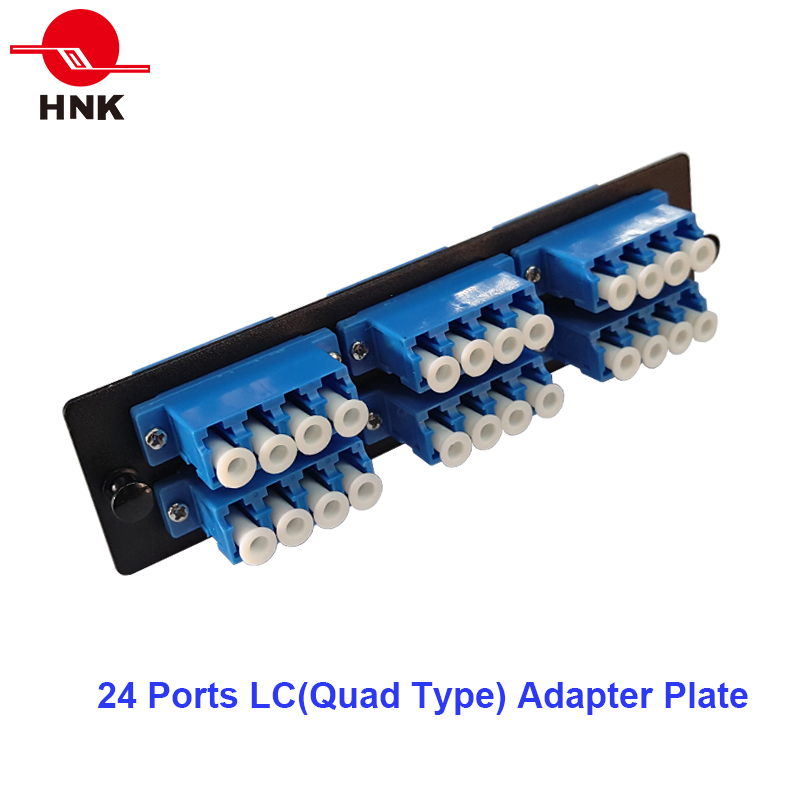

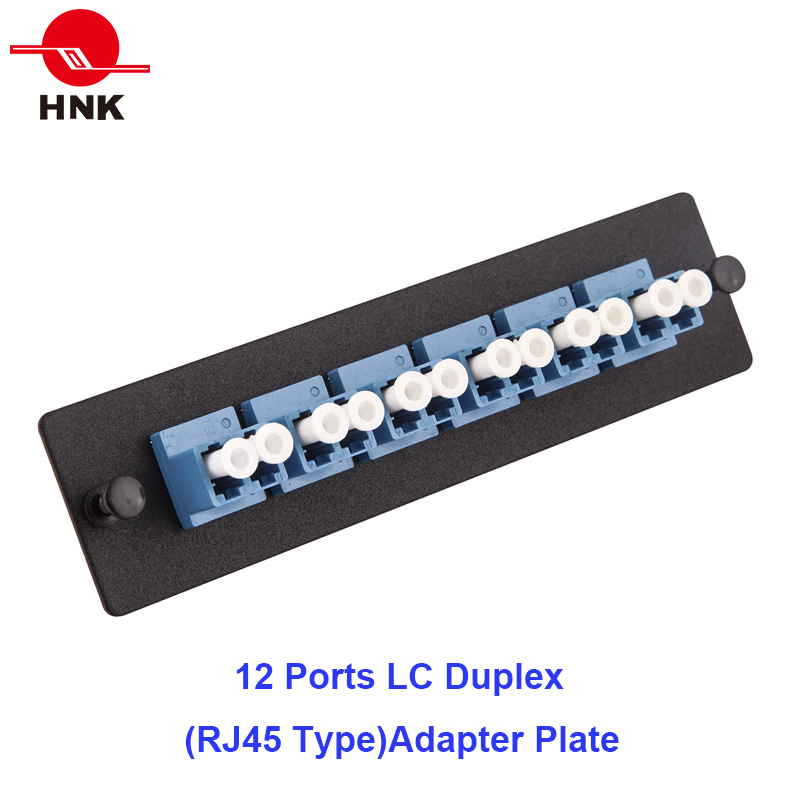

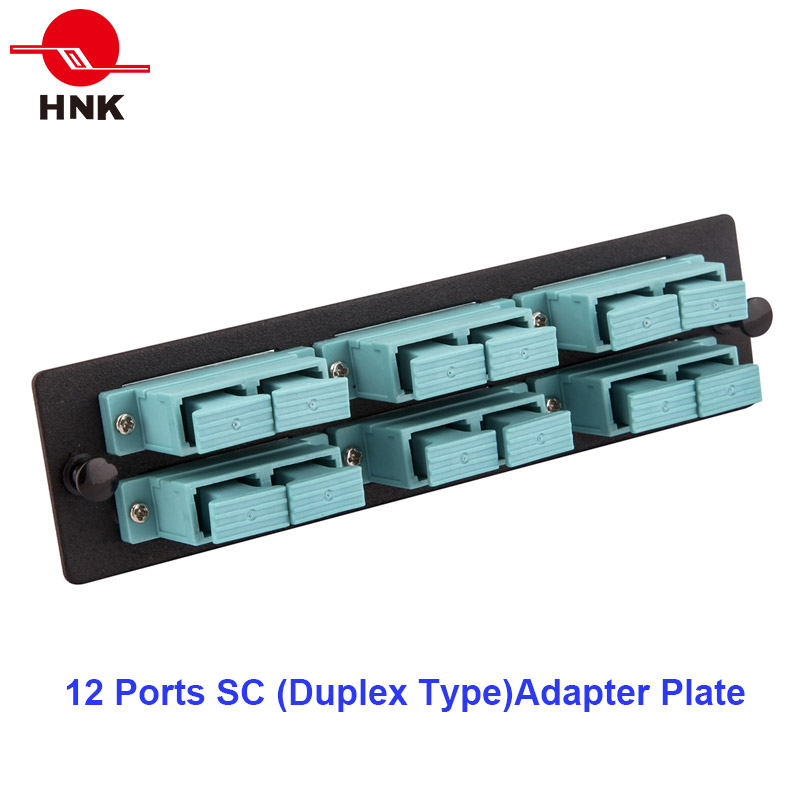

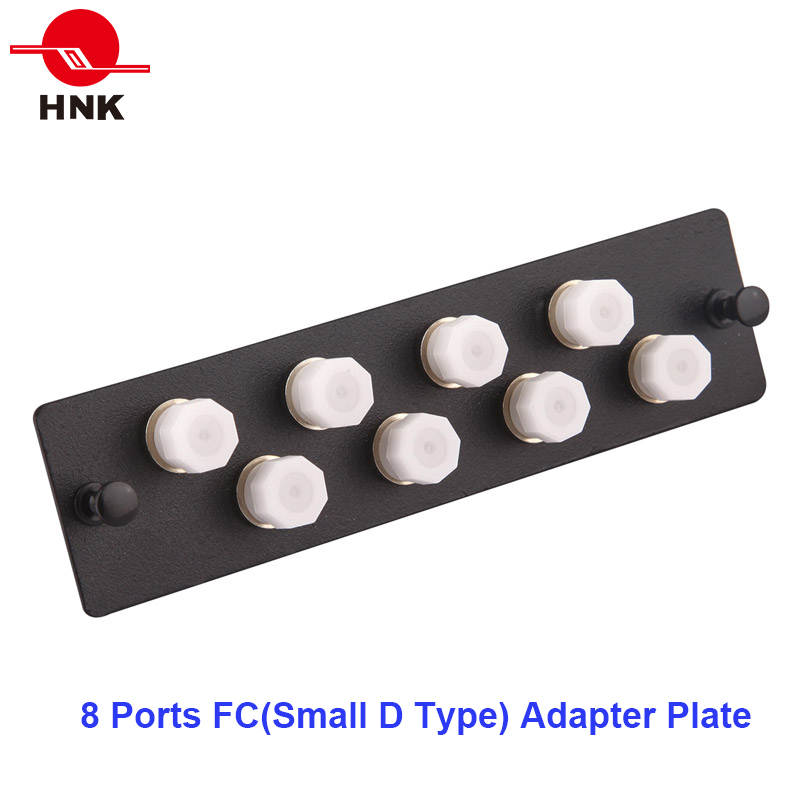

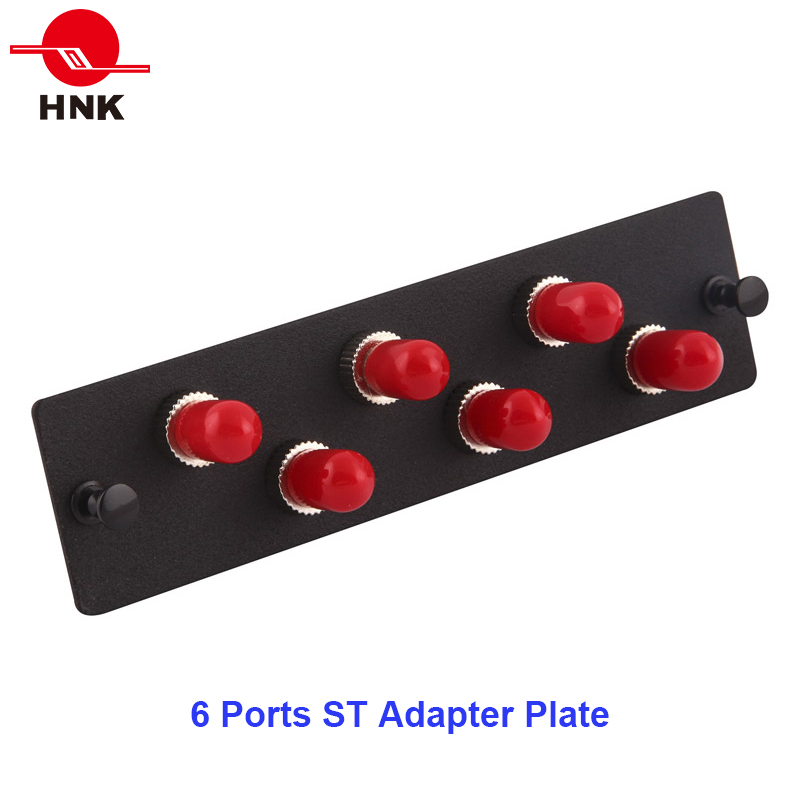

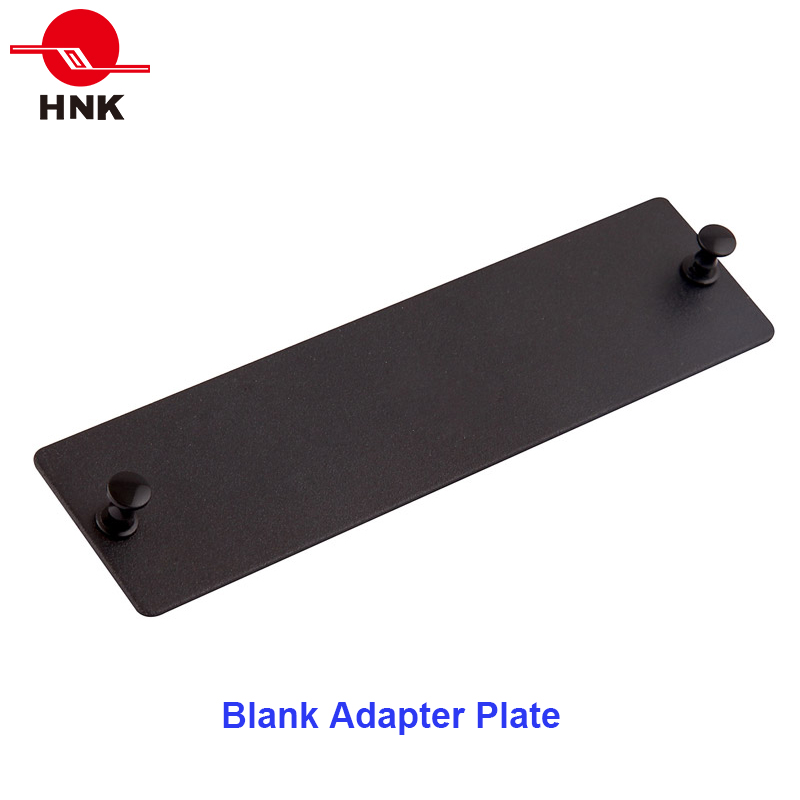

. Can load SC, FC, ST, LC adapter, only change the different plates.
Specifications
Patch Panel | Adaptor | ||
Size（H×W×D ）mm | 2U(H) x 19” (W) x 350mm(D) | Multimode Insertion Loss | 0.2dB Maximum |
Material | 1.2mm Cold Rolled Steel | Singlemode Insertion Loss | 0.2dB Maximum |
Material Coating | painted glossy black | Mating durability | >500 Mating Cycles |
Humidity | 0-90%, non-condensing | Multimode Adaptor Wavelength | 850 to 1300nm |
Operating Temperature | -10°C to 60°C | Singlemode Adaptor Wavelength | 1310 to 1550nm |
Storage Temperature | -40°C to 85°C | ROHS Compliant | Yes |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DEF)
Ordering Guide
XX | Patch Panel Type | WPP=Wall Mount Patch Panel, RPP=Rack Mount Patch Panel |
AA | Product ID | BP2 |
BB | Port Capacity | 12=12 Ports, 18=18 Ports, 24=24 Ports, 36=36 Ports |
C | Configuration | E=only patch pane, L=With Adaptor Panels, F=With Adaptor Panels and Pigtails |
D | Connector Type | FP, SP, SA, LP |
E | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
F | Fiber Length | 05=0.5M, 10=1M, 20=2M |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Ordering Sample
Part Number | Description |
RPP-BP2-E | 2U RPP-BP Type Rack Mount Patch Panel Without Adaptor Plate And Pigtail. |
RPP-BP2-36FLPG652D15 | 2U 72 Fibers RPP-BP Type Rack Mount Patch Panel With Duplex LC/PC SM Adaptor And 1.5M Singlemode G652D LC/PC Pigtail. |
|
