| Micro Distribution Optical Cable | |||||||||
|
|||||||||
Complied with or Exceeds Standard
IEC 60793-2-10 type A1b, TIA/EIA-492AAAA-A IEC 60793-2-10 type A1a.1, TIA/EIA-492AAAB-A.
IEC 60793-2-10 type A1a.2, ISO/IEC 11801 OM-3, TIA/EIA-492AAAC IEEE 802.3z Gigabit Ethernet
IEC 60793-2-10 type A1a.3, ISO/IEC 11801 OM-4, TIA/EIA-492AAAD. IEEE 802.3ae 10 Gigabit Ethernet
IEC 60793-2-10 type Ala.4, ISO/IEC 11801 OM5, TIA/ElA-492AAAE. IEEE 802.3ba 40&100 Gigabit Ethernet
ITU-T Recommendation G.652.D/G.655/G.657.A1/G.657.A2/G.657.B2/G.657.B3
IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2/ B6.b3 Optical Fiber Specification.
ANSI/TIA/EIA 568C.3 ROHS Compliant Directive 2011/65/EU(ROHS2.0)

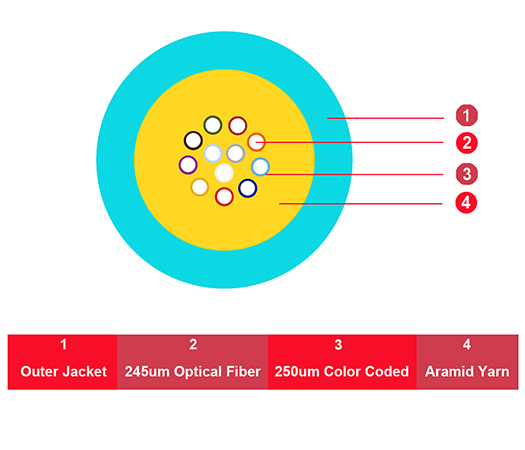

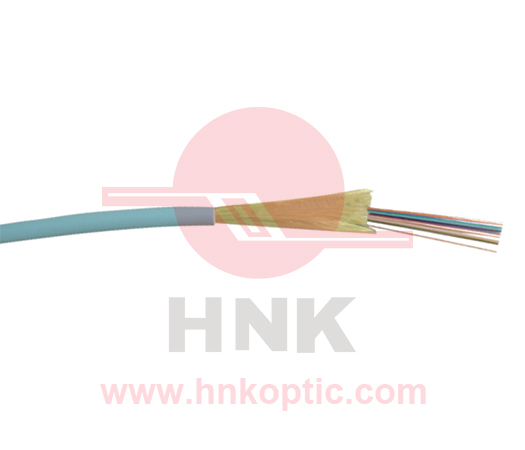

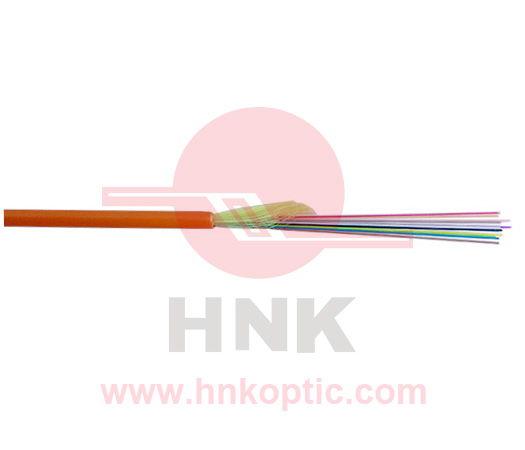

Each fiber strand is color coded for easy identification. 250µm fiber locates in the center of cable core and uses lightweight, flexible aramid yarns to enhance strength. The cable is completed with a PVC or LSZH jacket.
It is the ideal cable for applications in high density connectivity including data centers, co-locations, and central office facilities where higher data rates are desired. Supported applications include gigabit, 10 gigabit and 40 gigabit Ethernet.
Mechanical & Environmental Characteristics
Max. Tensile Load (Short Term) | 100N | Max. Tensile Load (Long Term) | 30N |
Max. Crush Load (Short Term) | 500N/100mm | Max. Crush Load (Long Term) | 100N/100mm |
Bend Radius-Dynamic (mm) | 20D | Bend Radius-Static (mm) | 10D |
UL Fire Rated | OFNR | ||
Outer Diameter (mm) | 3.0mm (4~24 F) | ||
Outer Jacket Material | Standard: PVC Optional: LSZH or other | ||
Operating Temperature | -20°C to +60°C | Storage Temperature | -20°C to +60°C |
Ordering Information
Part Number： OC-XX-A(B)CDCL
Ordering Guide
XX | A | B | C | D | CL |
Cable Type Code | Jacket | Fiber/Per Loose Tube or Fiber/Per Sub Unit | Fiber Count | Fiber Type | Jacket Color(CL) |
GJFV | 1=PVC 2=LSZH 3=PE | 2=2 Fibers/Loose Tube 12=12 Fibers/Loose Tube …… 2=2 Fibers/Sub Unit 12=12 Fibers/Sub Unit | No. Of Fiber 004F, 048F | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 OM5=50/125 OM5, G652D=9/125 G652D G655=9/125 G655, G657A1=9/125 G657A1 G657A2=9/125 G657A2, G657B3=9/125 G657B3 | As noted in Color code chart |
Color Code
Ordering Sample
Part Number | Description |
OC-GJFV-112OM3AQ | 12 Cores Multimode OM3 GJFV Fiber Optic Cable, PVC Jacket, Aqua Color. |
|
