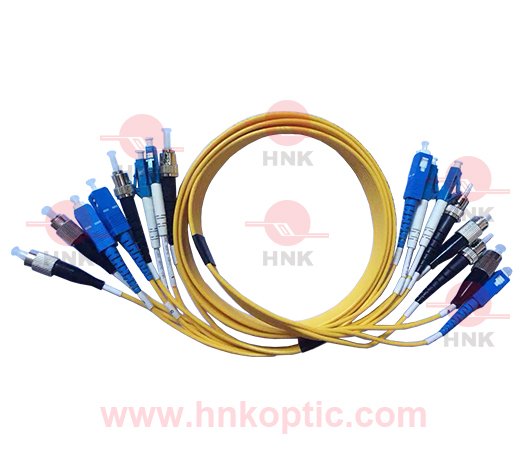

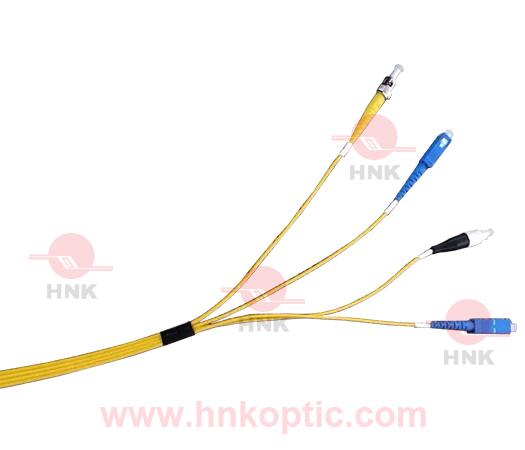

| 4~8 Cores Parallel Ribbon Cable Fiber Optic Patch Cord | |||||||||
|
|||||||||
Standards Compliance.
. Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
. Cable flame resistant rate: OFNR or IEC60332-3 standard
Features
. 100% tested on optical performance (insertion loss & return loss).
. Cable outer jacket available in PVC, LSZH (low smoke zero halogen).
. PC, UPC, APC connectors polishing type available.
. High concentricity 2.5mm ceramic ferrule for FC, ST, SC connectors and 1.25mm ceramic ferrule for LC and MU connectors.
. Available in G652D, G657A1, G657A2, OM1, OM2, OM3 and OM4 fiber.
. Connectors with number label to identify.

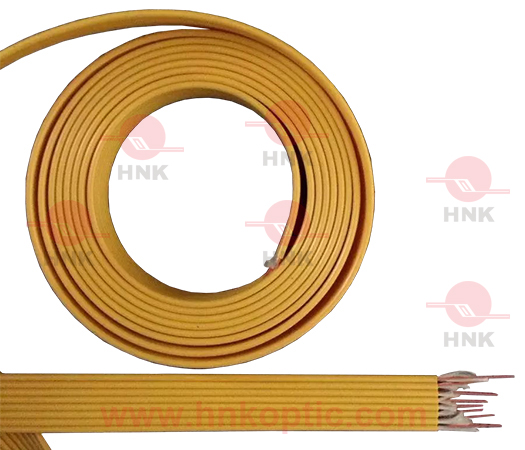

. Supports multiple fiber signals running parallel to each other on the same flat surface.
. Space-saving, higher-density wiring than conventional patch cord
Mechanical Data
Range of Mode | Singlemode or Multimode | Outer Jacket | PVC or LSZH |
Connector Style | SC, FC, ST, LC, MU, MTRJ, E2000, DIN, D4 | Cable Diameter | 4F (8.4x2.0mm) 8F (16.8x2.0mm) |
Polish or Ferrule Interface Type | PC, UPC, APC | Cable Lengths | Custom Lengths |
Optical Performance Data
Item | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) | ||||
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A | ||
Pull Strength | ≥98N | ≥98N | ||||
|
