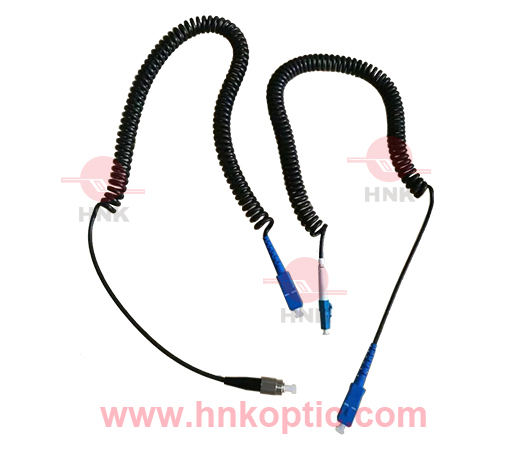

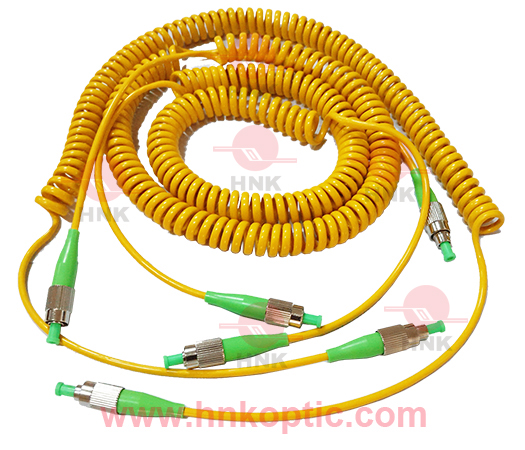

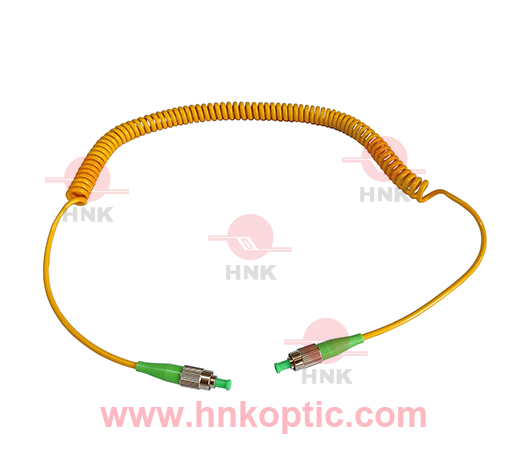

| Retractable Curl/Spiral Simplex Fiber Optic Patch Cord | |||||||||
|
|||||||||
Standards Compliance
. Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables.
. ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0.
. Cable flame resistant rate: OFNR or IEC60332-3 standard.
. ITU-T Recommendation G.657.B3 and the IEC 60793-2-50 type B1.3 Optical Fiber Specification.
Features
. 100% tested on optical performance (insertion loss & return loss).
. PC, UPC, APC connectors polishing type available.
. High concentricity 2.5mm ceramic ferrule for FC, ST, SC connectors and 1.25mm ceramic ferrule for LC and MU connectors.
. Available in 0.9mm, 2.0mm, 3.0mm sizes or customization.
. Extensive elastic range, can adjust length of cable when use.
. Durable stretch and shrink properties, without deteriorating the optical characteristics.
. Used for movable parts of machines and as a connecting cord for instruments.
Mechanical, Environmental & Material Data
Range of Mode | Singlemode G657B3 | Cable Type | Simplex | |
Connector Style | SC, FC, ST, LC, MU, MTRJ, E2000, DIN, D4 | Polish or Ferrule Interface Type | PC, UPC, APC | |
Cable Diameter | 0.9mm, 2.0mm, 3.0mm | Outer Jacket | PU (only) | |
Cable Color | Yellow or customization | Cable Lengths | Customization | |
Durability | 500 cycles (0.2 dB max increase), 1000 mate/demate cycles | |||
Operating Temp | -25 ˚C to +70˚C/+85˚C (armoured) | Storage Temp | -40 ˚C to +85˚C | |
Optical Performance Data
Item | Single mode | ||
PC | UPC | APC | |
Insert Loss | 0.2dB Max. (0.15dB typ.) | ||
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB |
Pull Strength | ≥98N | ||
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： RCPC-AA-BB-CDEFGHICL
Ordering Guide
AA | BB | C | D | E | F |

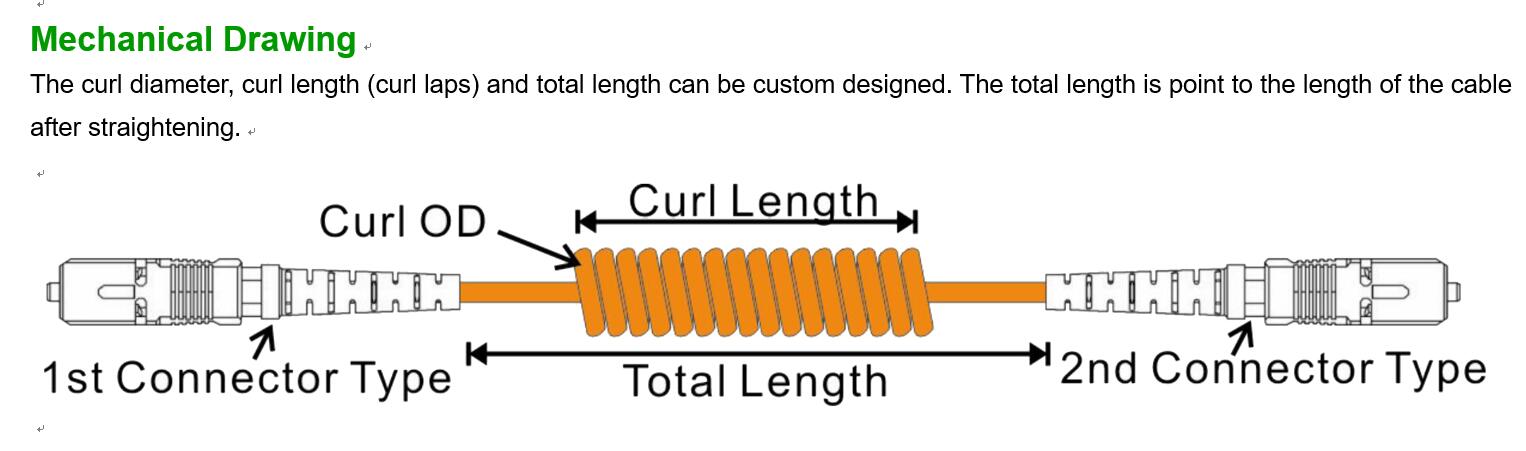

Connector Type | Connector Type | Fiber Type | Fiber Count | Cable Diameter(mm) | Curl Diameter(mm) |
FP, SP, SA, LP | FP, SP, SA, LP | G657B3= 9/125 G657B3 | SX=Simplex | 09=0.9mm, 20=2.0mm 30=3.0mm | 15=Φ15mm, 18=Φ18mm 20=Φ20mm |
G | H | I | CL |
Curl Length(cm) | Total Length(cm) | Jacket Materia | Jacket Color (CL) |
05=5cm, 15=15cm, 20=20cm | 015=150cm, 050=500cm 080=800cm, 100=1000cm | 1=PVC, 2=LSZH 3=PE, 4=PU | As noted in color code chart |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |
Color Code
Ordering Sample
Part Number | Description |
RCPC-FA-FA-G657B3SX3018150504YE | FC/APC-FC/APC Retractable Curl Fiber Optic Patch Cord, Singlemode G657B3, Simplex, Cable Diameter 3.0mm, Curl Diameter 18mm, Curl Length 15cm, PU Jacket, Yellow, Total Length 5M. |
|
