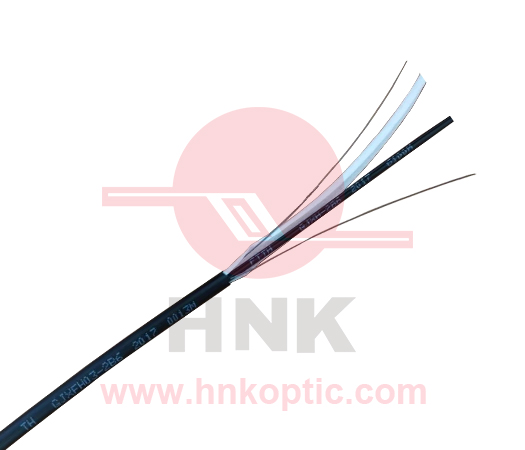

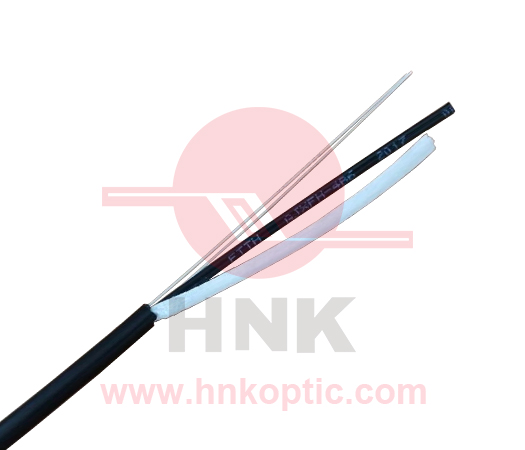

| 1~4 Cores Duct Round Fiber Optic Drop Cable | |||||||||
|
|||||||||
Complied with or Exceeds Standard
ITU-T Recommendation G.652.D/G.655/G.657.A1/G.657.A2/G.657.B2/G.657.B3
IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2/ B6.b3 Optical Fiber Specification.
ANSI/TIA/EIA 568C.3 ROHS Compliant Directive 2011/65/EU(ROHS2.0)

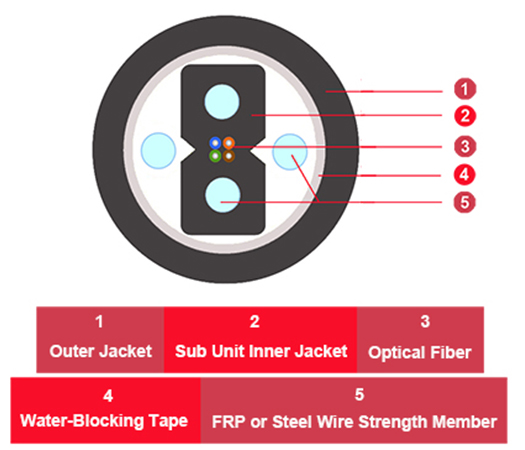

With LSZH flame-retardant inner jacket and abrasion resistant PE outer jacket, FRP or steel wire as strength member, good lateral waterproof performance and excellent tensile resistance, this cable can be especially used in aerial and duct access cabling, suitable for the connection between indoor and outdoor. It can also be directly terminated connecting to communication equipment.
Mechanical & Environmental Characteristics
Min. Tensile Load (Short Term) | 600N | Min. Tensile Load (Long Term) | 300N |
Min. Crush Load (Short Term) | 2200N/100mm | Min. Crush Load (Long Term) | 1000N/100mm |
Bend Radius-Dynamic (mm) | 20D | Bend Radius-Static (mm) | 10D |
UL Fire Rated | OFNR | Inner Jacket Material | LSZH |
Outer Diameter (mm) | 6.2mm±0.1 | Sheath Material | Standard: PE |
Operating Temperature | -40°C to +70°C | Storage Temperature | -40°C to +70°C |
Note: “D” is Cable Outer Diameter.
Optical Characteristics
Charac Teristic | Condition | Unit | G657A2 | G657A1 | G652D | |
Attenuation | 1310 nm | [dB/km] | ≤0.36 | ≤0.40 | ||
1550 nm | [dB/km] | ≤0.25 | ≤0.30 | |||
Zero Dispersion Wavelength | [nm] | 1300-1324 | ||||
Zero Dispersion Slope
Typical value
Typical value | [ps/(nm².km)] | ≤0.092 | ≤0.091 | |||
Cable Cutoff Wavelength λсс | [nm] | ≤1260 | ||||
Mode Field Diameter (MFD) | 1310 nm
| [µm] | 8.4~9.2 | 8.7~9.5 | ||
1550 nm
| [µm] | 9.3~10.3 | 9.9~10.9 | |||
Macro Bending Induced Attenuation | 10 Turns Around a Mandrel @ 15mm Radius | 1550 nm | [dB] | ≤0.03 | ≤0.25 | - |
10 Turns Around a Mandrel @ 15mm Radius | 1625 nm | [dB] | ≤0.1 | ≤1.00 | - | |
1 Turn Around a Mandrel @ 10mm Radius | 1550 nm | [dB] | ≤0.1 | ≤0.75 | - | |
1 Turn Around a Mandrel @ 10mm Radius | 1625 nm | [dB] | ≤0.2 | ≤1.50 | - | |
1 Turn Around a Mandrel @ 7.5mm Radius | 1550 nm | [dB] | ≤0.2 | - | - | |
1 Turn Around a Mandrel @ 7.5mm Radius | 1625 nm | [dB] | ≤0.5 | - | - | |
Ordering Information
Part Number： OC-XX-A(B)CDCL
Ordering Guide
XX | A | B | C | D | CL |
Cable Type Code | Jacket | Fiber/Per Loose Tube or Fiber/Per Sub Unit | Fiber Count | Fiber Type | Jacket Color(CL) |
GJYXFH03, GJYXH03 | 1=PVC 2=LSZH 3=PE | 2=2 Fibers/Loose Tube 12=12 Fibers/Loose Tube …… 2=2 Fibers/Sub Unit 12=12 Fibers/Sub Unit | No. Of Fiber 004F, 048F | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 OM5=50/125 OM5, G652D=9/125 G652D G655=9/125 G655, G657A1=9/125 G657A1 G657A2=9/125 G657A2, G657B3=9/125 G657B3 | As noted in Color code chart |
Color Code
Ordering Sample
Part Number | Description |
OC-GJYXFH03-32G657A1BK | 2 Cores Singlemode G657A1 GJYXFH03 Type Drop Cable, PE Jacket, Black Color, GJXFH Cable Sub Unit. |
|
