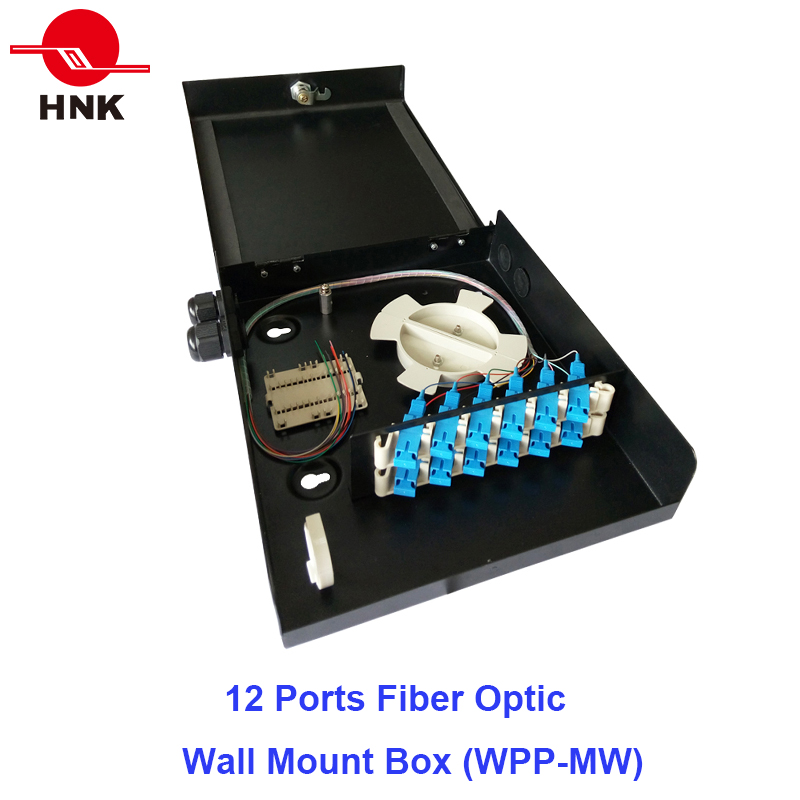

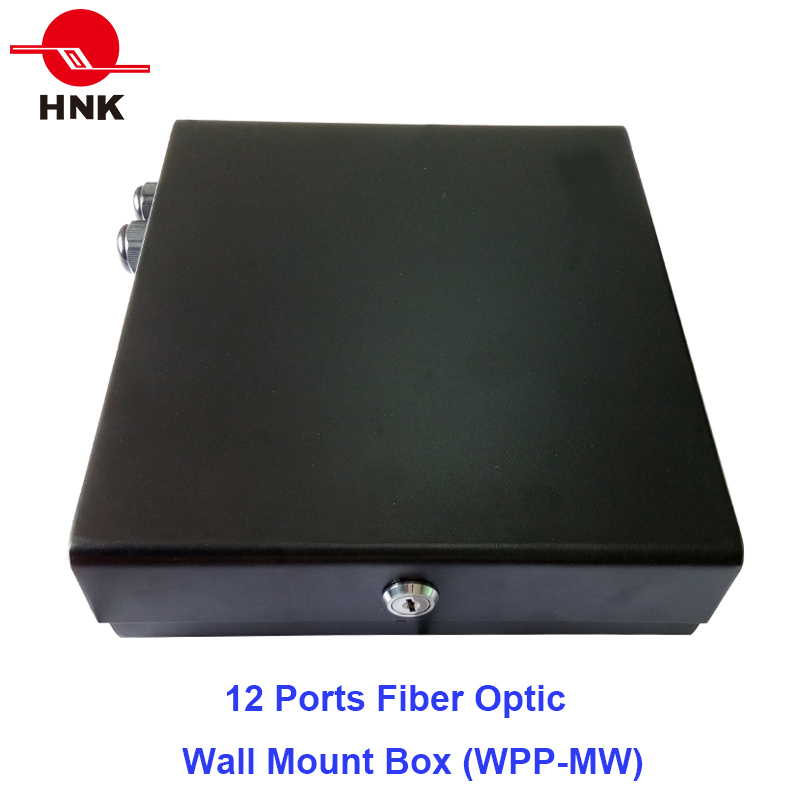

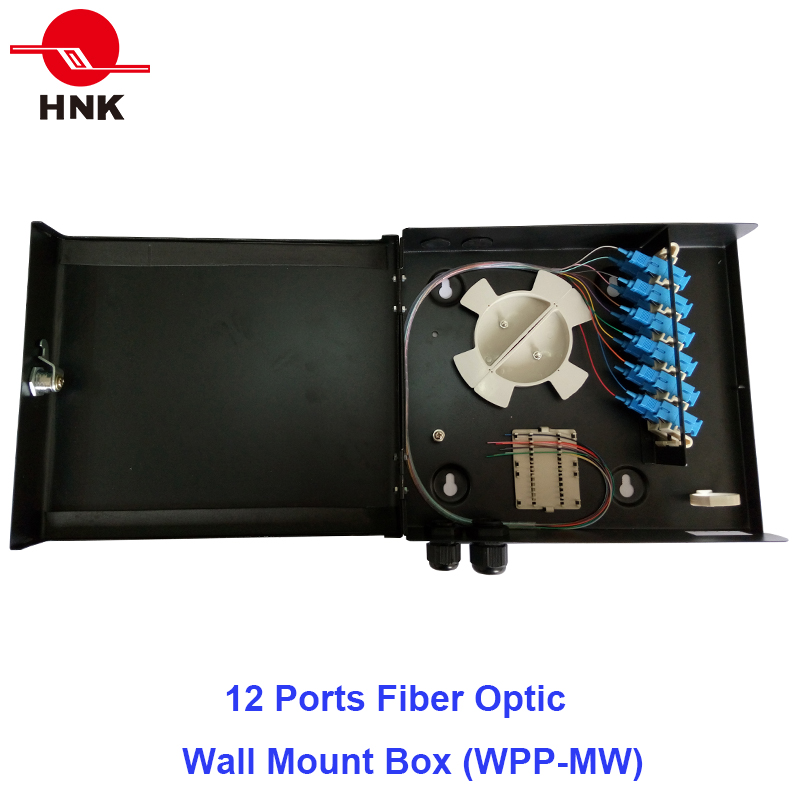

| 12 Ports Fiber Optic Wall Mount Box | |||||||||
|
|||||||||
Certification and Compliance
. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Features
. Screwless adapter mounting, quick and convenient.
. 45° plastic panel, can be changed according to the cable managing directions.
. Plastic panel able to fit different adapters interface, such as SC, FC, ST, E2000, LC, MU etc.

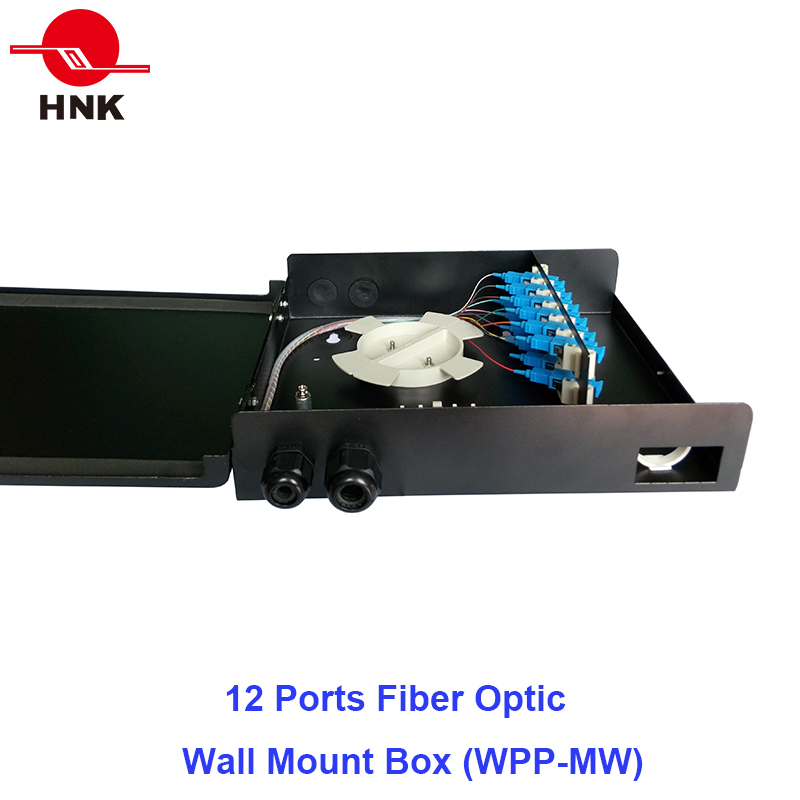

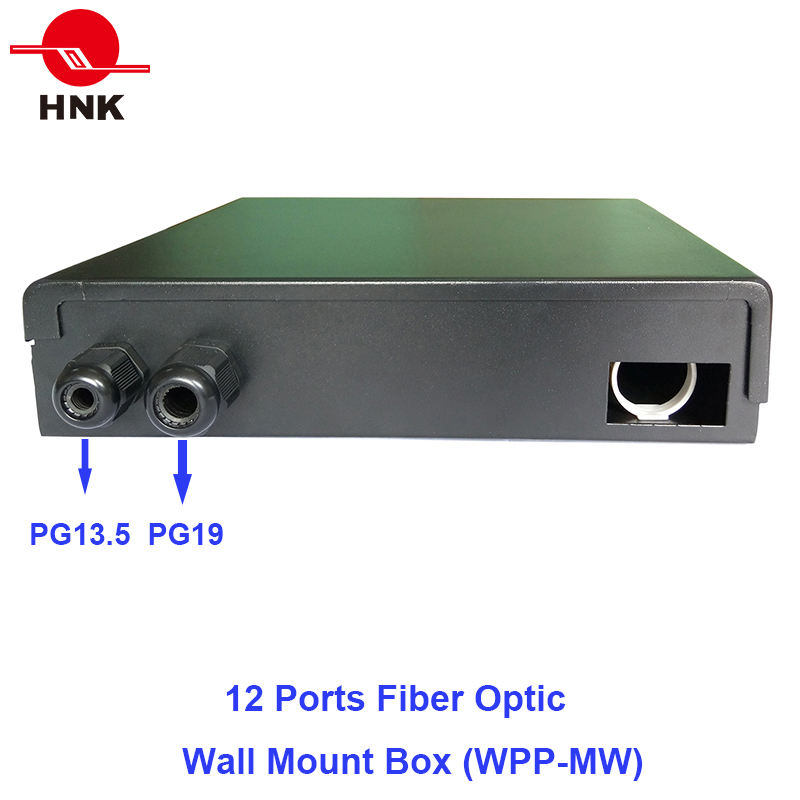

. 2 PG13.5 cable glands and 2 PG19 cable glands, can be used according to the working environment.
. Fiber Cable is fixed by screw to tight, more solid.
. All cable inlets/outlets with rubber seal.
Specifications
Patch Panel | |||
Size (W * H * D) mm | 282(W) x 240 (H) x 63(D) | Weight (kg) | 1.8 |
Material | 1.2mm Cold Rolled Steel | Humidity | 0-90%, non-condensing |
Material Coating | Powder | Operating Temperature | -10°C to 60°C |
Colour | RAL 9004 | Storage Temperature | -40°C to 85°C |
Adaptor | |||
Multimode Insertion Loss | 0.2dB Maximum | Multimode Adaptor Wavelength | 850 to 1300nm |
Singlemode Insertion Loss | 0.2dB Maximum | Singlemode Adaptor Wavelength | 1310 to 1550nm |
Mating durability | >500 Mating Cycles | ROHS Compliant | Yes |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DEF)
Ordering Guide
XX | Patch Panel Type | WPP=Wall Mount Patch Panel, RPP=Rack Mount Patch Panel |
AA | Product ID | MW |
BB | Port Capacity | 12=12 Ports, 18=18 Ports, 24=24 Ports, 36=36 Ports |
C | Configuration | E=only patch pane, L=With Adaptor Panels, F=With Adaptor Panels and Pigtails |
D | Connector Type | FP, SP, SA, LP |
E | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
F | Fiber Length | 05=0.5M, 10=1M, 20=2M |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Ordering Sample
Part Number | Description |
WPP-MW-E | WPP-MW Type Wall Mount Patch Panel Without Adaptor Plate And Pigtail. |
WPP-MW-12FSPG652D05 | 12 Fibers WPP-MW Type Wall Mount Patch Panel With Simplex Flangeless SC/PC SM Adaptor And 0.5M Singlemode G652D SC/PC Pigtail. |
|
