| Waterproof cable | |||||||||
|
|||||||||
Complied with or exceeds Standard:
. ITU-T G652.D
. ITU-T G657.A
. ITU-T G651.1 OM1 OM2 OM3 OM4
. IEC60793-2-10 type A1a.1/A1b OM1/OM2
. IEC60793-2-10 type A1a.2 OM3
. IEC60793-2-10 type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702
. IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3
. ROHS Compliant Directive 2011/65/EU(ROHS2.0)

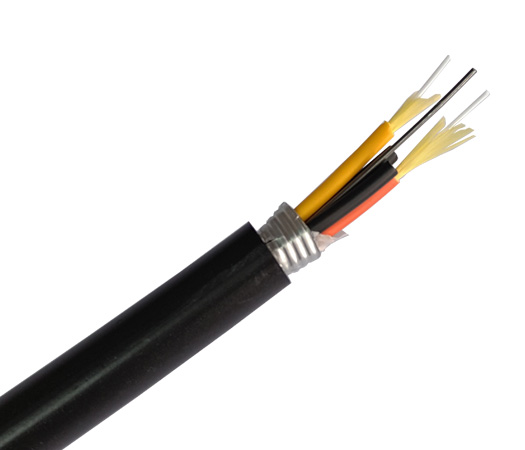

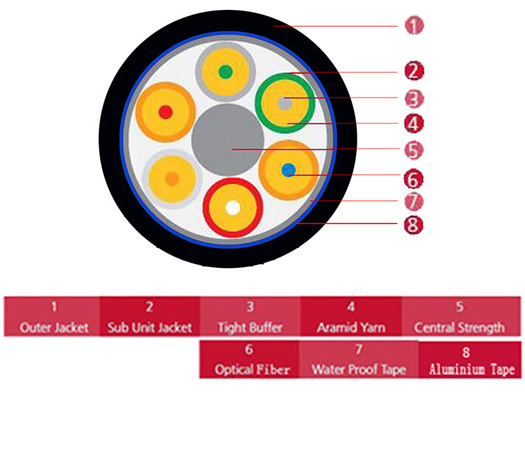

These cables are constructed bundling tight buffered simplex optical fiber (Ф900μm tight buffer fibre, aramid yarn as strength member) in an outer jacket. Steel wire central strength member in the cable give it good tensile strength. An Aluminium tape and PE outer sheath give this cable excellent mechanical, ultraviolet, environmental protection, water and moisture resistance.
Mechanical & Environmental Characteristics
| ITEM | Value |
| Max. Tensile Load (Short Term) | 1500N |
| Max. Tensile Load (Long Term) | 600N |
| Max. Crush Load (Short Term) | 1000N/100mm |
| Max Crush Load (Long Term) | 300N/100mm |
| UL Fire Rated | OFNR |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Sheath Material | Standard: PE Optional: LSZH or other |
Optical Characteristics
Of all the differences between multimode & singlemode fiber, the most fundamental differences are the size of the fiber’s core and the associated attenuation or loss and bandwidth of the fiber. The smaller the core diameter, the higher the fiber’s bandwidth and the lower the attenuation (loss in dB per kilometer). The fiber’s attenuation and bandwidth are also dependent on wavelength.
Singlemode was for high-speed long distance transmission and multimode (in either the 50 µm or 62.5 µm core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the data carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below.
| Fiber Type | Max. Attenuation (dB/km) | Min.Overfill Launch Bandwidth (Mhz.km) | Min.Gigabit Ethernet Link Distance (m) | ||||||
| Gigabit | 10Gigabit | ||||||||
| 850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nnm | |
| OM1 62.5/125µm | ≤2.7 | ≤0.6 | - | - | ≥500 | ≥600 | 275 | 550 | - |
| OM2 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥500 | ≥500 | 750 | 600 | 150 |
| OM3 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
| OM4 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1100 | 600 | 550 |
| G652D 9/125µm | - | - | ≤0.30 | ≤0.18 | - | - | - | - | - |
| G657A 9/125µm | - | - | ≤0.35 | ≤0.21 | - | - | - | - | - |
ANSI/TIA/EIA-598-B Standard Fiber Color Code
| Fiber Number | Fiber Color | Fiber Number | Fiber Color |
| Fiber 1 | Blue | Fiber 7 | Red |
| Fiber 2 | Orange | Fiber 8 | Black |
| Fiber 3 | Green | Fiber 9 | Yellow |
| Fiber 4 | Brown | Fiber 10 | Purple |
| Fiber 5 | Gray | Fiber 11 | Pink |
| Fiber 6 | White | Fiber 12 | Aqua |
| Fiber 13 and higher The color code is repeated with added black stripe or dash Note: Fiber Tube color will be followed with same order. | |||
Color Code
Ordering Information
Part Number： OC-XX-ABCDCL
Ordering Guide
| XX | A | B | C | D | CL |
| Cable Type | Jacket | Fiber/Sub | Fiber Count | Fiber Type | Jacket Color(CL) |
| GJJA | 1=PVC 2=LSZH 3=PE | 01=01 Fiber/S 02=02 Fiber/S …… 11=11 Fiber/S 12=12 Fiber/S | No. Of Fiber 004F，048F | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A | As noted in Color code chart |
Ordering Sample
| Part Number | Description |
| OC-GJJA-3112G652DBK | 12 cores Singlemode G652D GJJA Fiber Optic Cable, 1 Fiber/Sub, PE jacket, Black color. |
|
