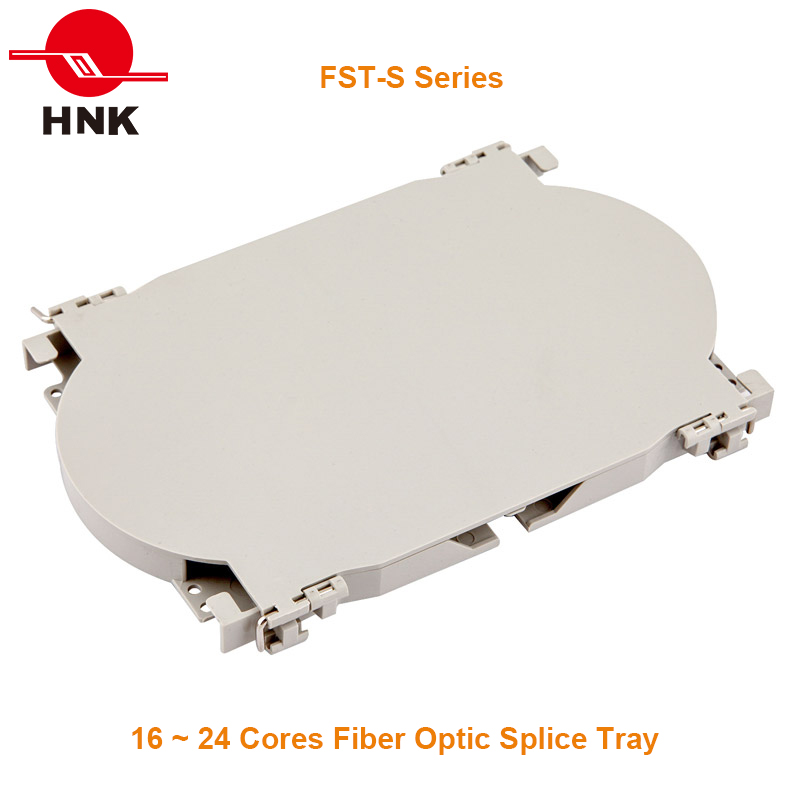

| Fiber optic Splice Tray (FST-S Series) | |||||||||
|
|||||||||
Complied with or exceeds Standard
▪ TIA/EIA 568.C (Optical Fiber Cabling Components Standard).
▪ ISO/IEC 11801(Generic cabling for customer premises).
▪ IEC 61073-1, Mechanical splices and fusion splice protectors for optical fibers and cables .
▪ EN50173( Telecommunications Infrastructure Standard for Data Centres).
▪ 2011/65/EU(ROHS2.0, Directive on Restriction of Hazardous Substances.).
Features
▪ Center holes for mounting of the tray.
▪ Multiple tie down holes for securing incoming fiber.
▪ Storage and protect splice fibers.
▪ Scientific design with large bent radius, simple to install and operate.
▪ Durable injection-molded plastic trays and covers; used for long time; repeatable operation.
▪ Accommodate standard heat shrink sleeves in 40~60mm lengths with 2.5 mm diameter.
▪ Installable in Wall Mount & slidable patch panel & splice closures
Specification
Part Number | FST-S16 | FST-S24 |
Dimension(L x W x H) | 175 x 110 x 12 mm | |
Body & Cover Material | PC | |
Body & Cover Color | light grey color and black color optional | |
Splice Capacity | 16 | 24 |
Operating Temperature | -40°C to +60°C | |
Ordering Information
Part Number | Description |

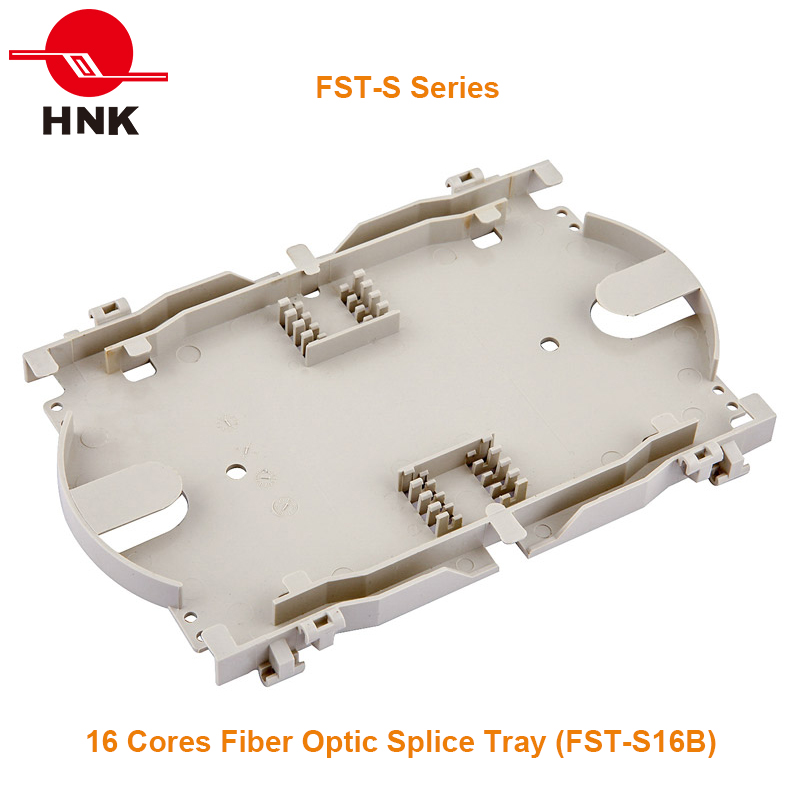

FST-S16 | 16 Cores S Series Splicing Tray. |

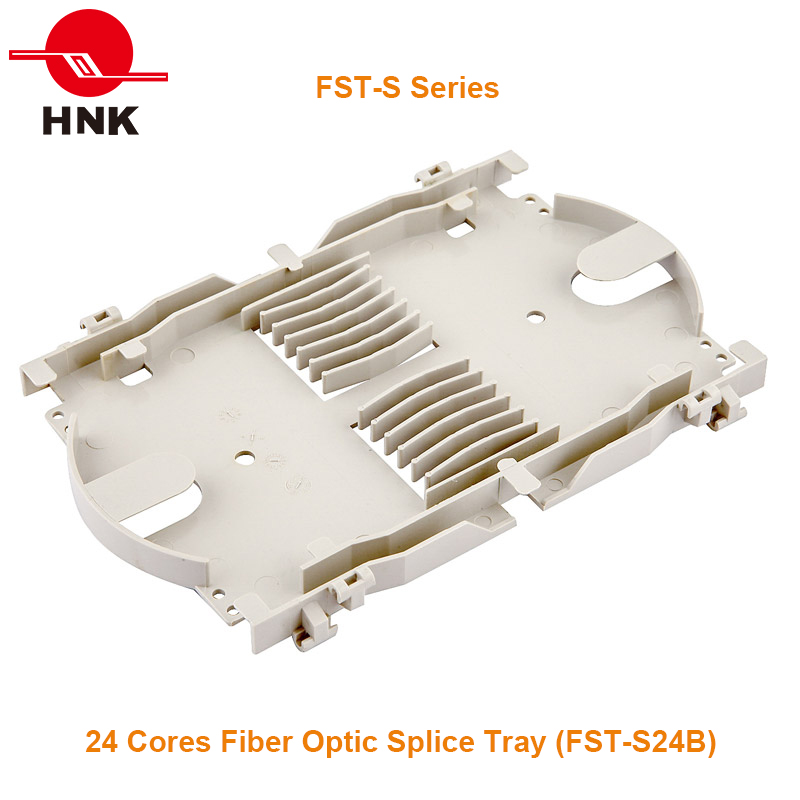

FST-S24 | 24 Cores S Series Splicing Tray. |
|
