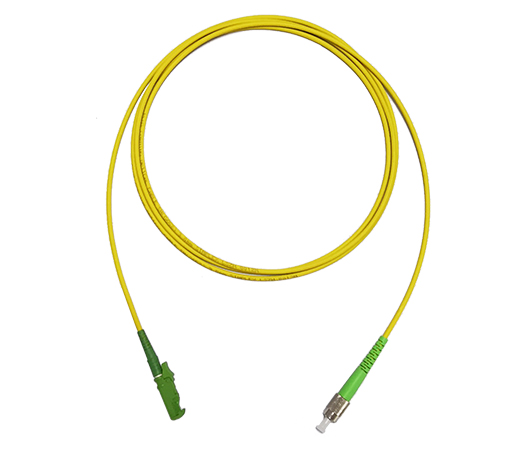

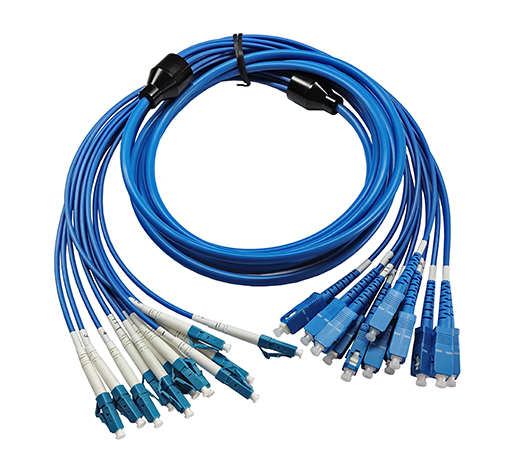

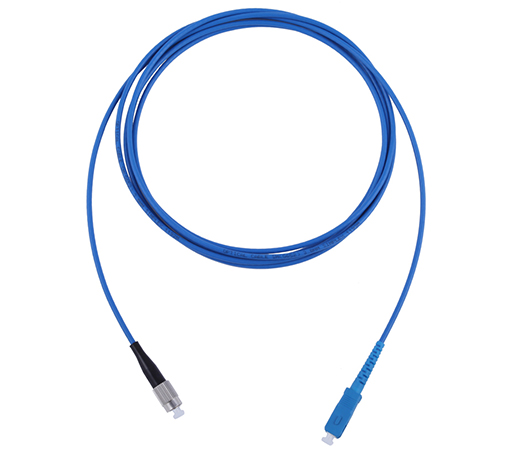

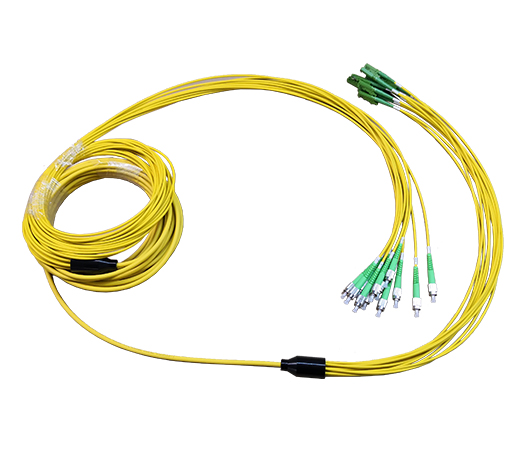

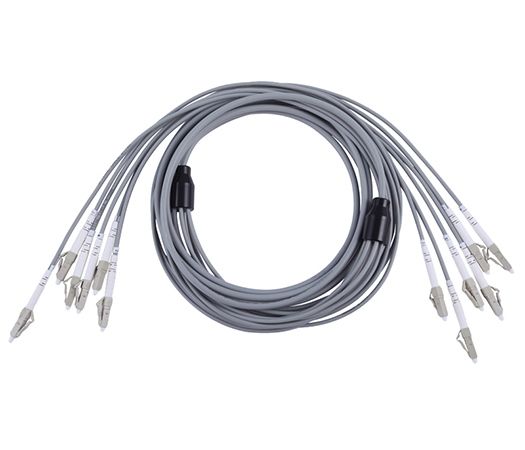

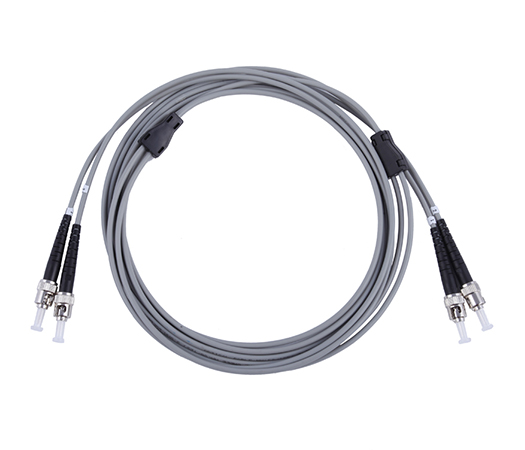

| Armoured Fiber Optic Patch Cord | |||||||||
|
|||||||||
Standards Compliance
. IEC 874-14, TIA/EIA-568-B.3
. ISO/IEC 11801, IEC-61754-7, TIA-604-5
. RoHS, REACH & SvHC Compliant
Features
. Low insertion loss and high return loss, stable transmission.
. Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types.

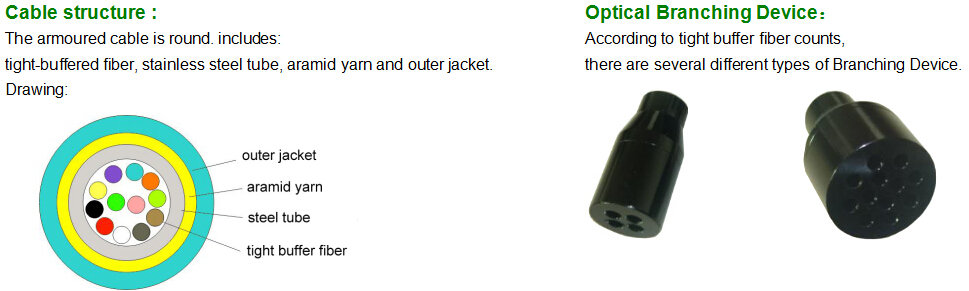

. Built with elasticity stainless steel tube, suitable for different harsh environments application.
. Strong tensile strength, prolong the service life.
. Layouts can be wired much the same way as ordinary electric cable installations.
. Available in standard and custom lengths.
Cable Specification
Item | Simplex | Duplex | 4 cores | 6 cores | 12 cores | |||
Tight Buffer OD (mm) | 0.9 ± 0.05 | 0.6 ± 0.05 | ||||||
Outer diameter (mm) | 2.8 ± 0.1 | 3.0 ± 0.1 | 3.9 ± 0.1 | 4.4 ± 0.1 | 5.9 ± 0.1 | |||
Outer jacket | PVC, LSZH, PE | Minimal Bending radius | ≥20D | |||||
Standard color | Blue or Yellow (Singlemode), Gray (Multimode). other colors available upon request | |||||||
Operating temperature | -40°C to +70°C | Storage temperature | -40°C to +70°C | |||||
Note: “D” is Cable Outer Diameter.
Optical Performance Data
Item | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) | ||||
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A | ||
Pull Strength | ≥98N | ≥98N | ||||
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： APC-AA-BB-CDEFCL
Ordering Guide
| AA | BB | C | D | E | F | CL |
| Connector Type | Connector Type | Fiber Type | Fiber Count | Length | Jacket Materia | Jacket Color(CL) |
| FP,SP,SA,LP | FP,SP,SA,LP | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A | SX=Simplex DX=Duplex 4F=4 cores 6F=6 cores 12F=12 cores | 0015=1.5M 0200=20M | 1=PVC 2=LSZH 3=PE | Blue (Singlemode)， Yellow (Singlemode), Gray (Multimode). |
Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC | MU | MU | DN | DIN |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC | MT | MTRJ | E2 | E2000 |
Ordering Sample
| Part Number | Description |
| APC-LP-LP-G657A6F01001BL | 6 Cores LC/PC-LC/PC Indoor Armoured Fiber Optic Patch Cord, Singlemode G657A, PVC Jacket, Blue, 10M. |
|
