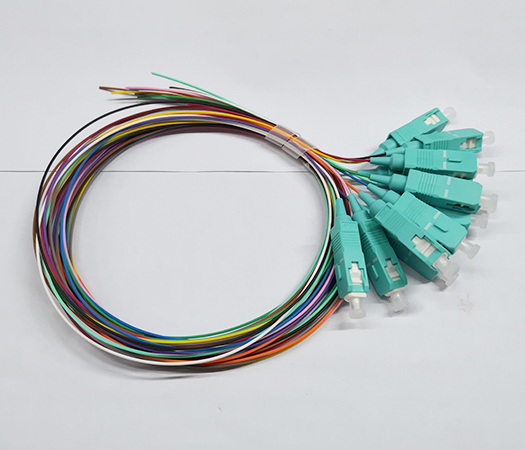

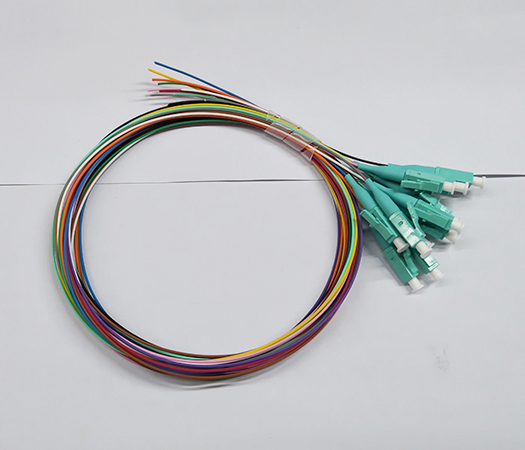

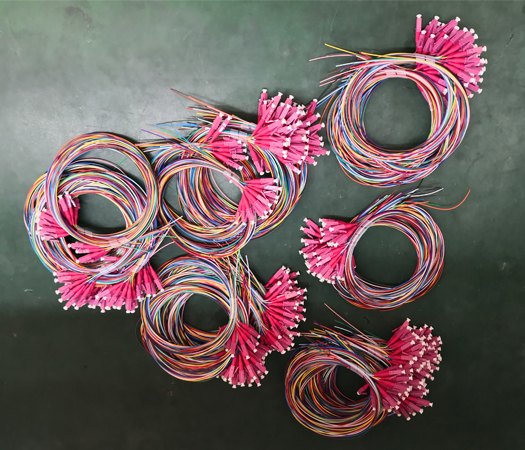

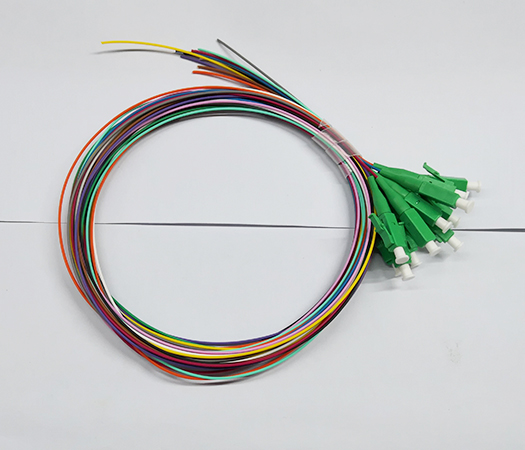

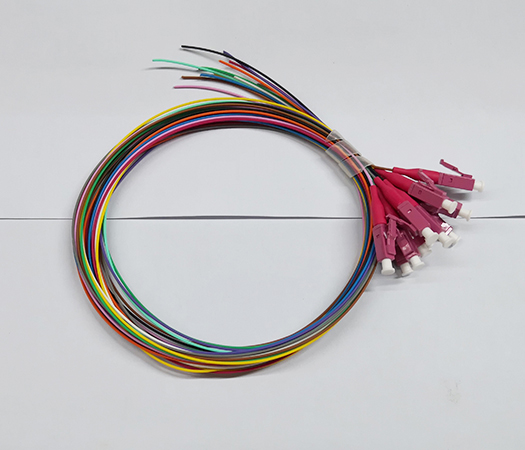

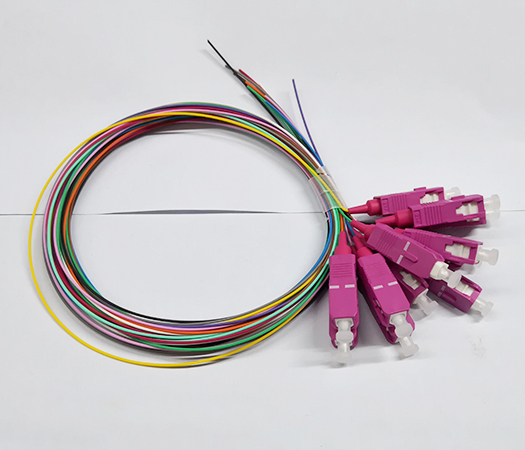

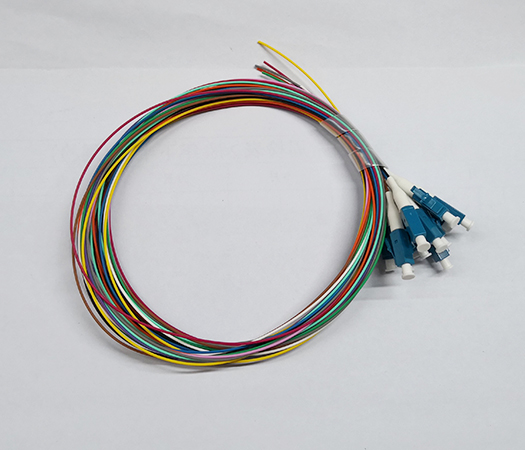

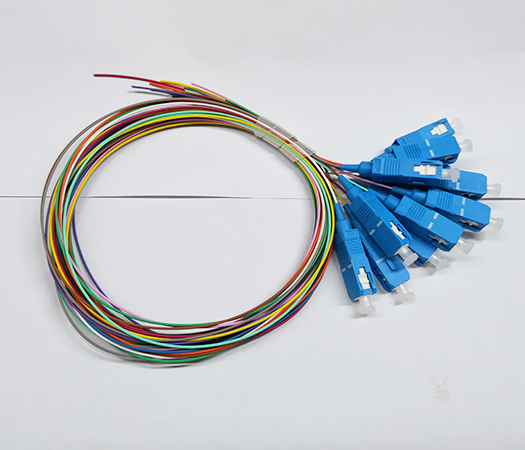

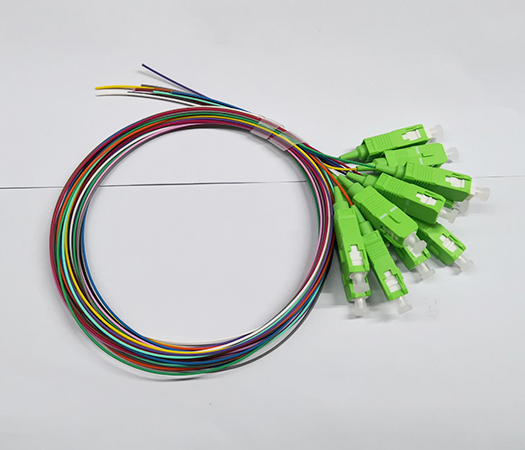

| 12 Cores Color Coded Pigtail | |||||||||
|
|||||||||
Complied with or exceeds Standard
▪ ISO/IEC 11801
▪ TIA-568-C.3
▪ EN50173 -1,ANSI TIA/EIA 568B
Features
▪ Constructed from high quality connectors and standard fibers
▪ Wide range of connector and fiber options available
▪ Tight Buffer 900µm buffer internal construction as standard
▪ Custom lengths, connector combinations and polishes are available
▪ Other Jacket Material and fiber types available on request

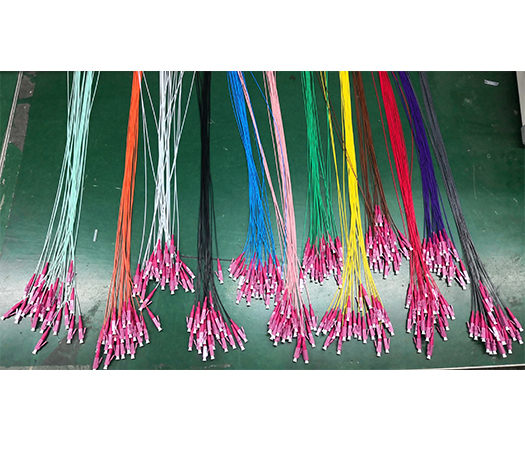

▪ Up to 12 different colors
Optical Characteristics (Fiber)
| Fiber Type | Max. Attenuation (dB/km) | Min.Overfill Launch Bandwidth (Mhz.km) | Min.Gigabit Ethernet Link Distance (m) | ||||||
| Gigabit | 10Gigabit | ||||||||
| 850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nnm | |
| OM1 62.5/125µm | ≤2.7 | ≤0.6 | - | - | ≥500 | ≥600 | 275 | 550 | - |
| OM2 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥500 | ≥500 | 750 | 600 | 150 |
| OM3 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
| OM4 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1100 | 600 | 550 |
| G652D 9/125µm | - | - | ≤0.30 | ≤0.18 | - | - | - | - | - |
| G657A 9/125µm | - | - | ≤0.35 | ≤0.21 | - | - | - | - | - |
Optical Performance Data (Connector)
| connector | ST PC/UPC/APC | SC PC/UPC/APC | FC PC/UPC/APC | LC PC/UPC/APC | MTRJ |
| Insertion Loss (dB) Max. | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.6 |
| Insertion Loss (dB) Typical. | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 |
| Return Loss SM(dB) | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
| Return Loss MM(dB) | ≥45/≥50/≥60 | ≥45/≥50/≥60 | ≥45/≥50/≥60 | ≥45/≥50/≥60 | ≥45 |
| Sheath Material | PVC or LSZH | ||||
| Operating Temperature | -40°C to +80°C | ||||
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： PT12-AA-BCDE
Ordering Guide
| AA | B | C | D | E |
| connector Type | Fiber Type | Length | Jacket Material | Jacket Color(CL) |
| FP,SP,SA,LP | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A | 01=1M 02=2M 03=3M 04=4M | 1=PVC 2=LSZH | As Noted IN Color Code Chart |
Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC | MU | MU | DN | DIN |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC | MT | MTRJ | E2 | E2000 |
Color Code
Ordering Sample
| Part Number | Description |
| PT12-LP-G652D-031 | LC/PC Singlemode Fiber Optic Pigtail, PVC Jacket, 3M, 12 different colors. |
|
