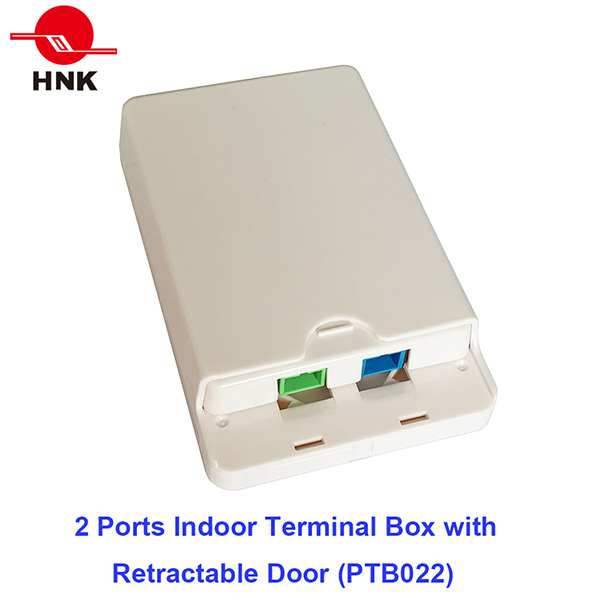

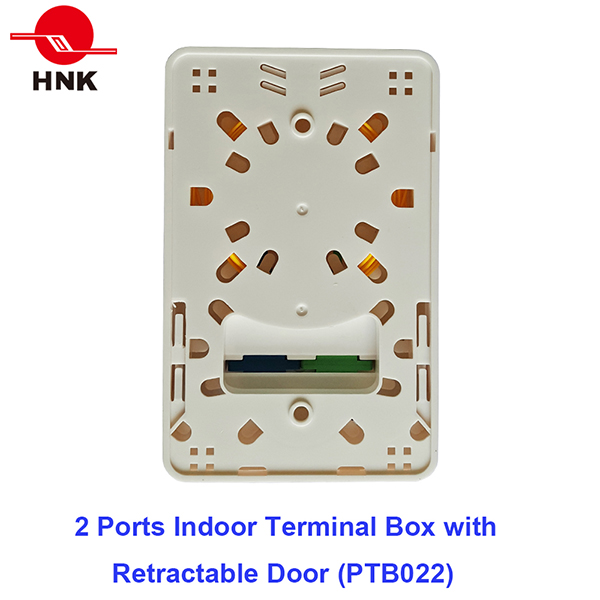

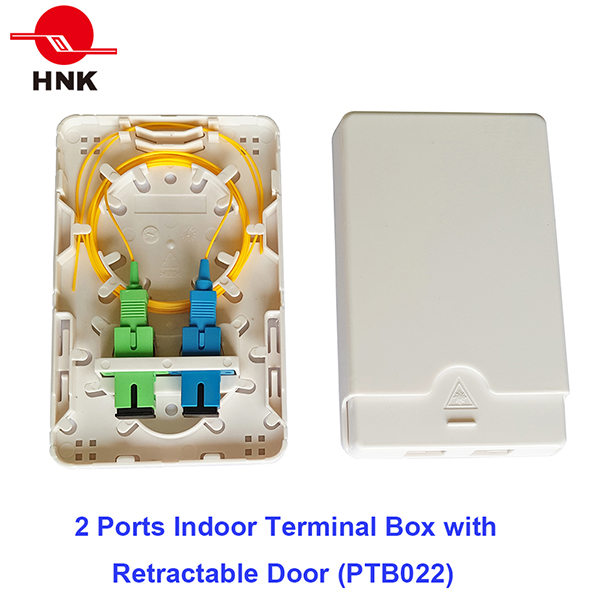

| 2 Ports Indoor Termination Box with Retractable Door | |||||||||
|
|||||||||
Standards Compliance
. TIA/EIA 568.C, Optical Fiber Cabling Components Standard
. IEC61754, Fiber optic connector interfaces Standard
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Product Features
. Modern design concept, graceful appearance and convenience operation.
. Desktop or Wall mounted, white color, graceful style and good adaptability to environment.
. Made of high quality ABS, anti-collision, flame retardant, resistance to impact.
All the materials complied with ROHS standard.
. Embedded type surface, easy for installation and removal.
. With retractable protective door, dust proof.
. Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
. Cable fixing units(Tie-warps) provided for fixing the input optical cable.
. Remarkable laser warning identification.
Specifications
| Working Temperature | -25~+60°C | Storage Temperature | -40~+70°C |
| Humidity | 93%(+30°C) | Air Pressure | 70KPa~106KPa |
| Size(W×H×D) mm | 82 x 128 x 24 | Weight (kg) | 0.051 |
| Color | White | Material | ABS |
| Capacity (Cores) | 2(SC simplex), 4(LC duplex) | Connect Models | Fusion splicing |
| Number of Outlets | 2 | Number of Cable Entre Points | 11 |
| Installation Models | Desktop or Wall Mounted | Drop Cable (Flat) | Indoor Flat Drop cable 2mm×3mm |
| Drop Cable (Round) | ≤Φ5mm | Curvature Radius (mm) | ≥15 |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC-(DCLEF)
Ordering Guide
XX | Termination box Type | PTB=Plastic Termination box, MTB=Metal Termination box |
AA | Product ID | please see the referrence below |
BB | Port Capacity | 01=1 Port, 04=4 Ports, 16=16 Ports |
C | Configuration | E=only Termination box, L=With Adapters, F=With Adapters and Pigtails |
D | Adapter Connector Type | FP,SP,SA,LP |
CL | Adapter Color(CL) | BL/Blue for Singlemode PC Standard, BG/Beige for Multimode Standard, AQ/Aqua for OM3 Standard, GR/Green for Singlemode APC Standard and PU/Purple for OM4 Standard (Metal Structure Unsuited) |
E | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
F | Fiber Length | 05=0.5M, 10=1M |
Adapter Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Ordering Sample
Part Number | Description |
PTB022-02E | 2 ports PTB022 type termination box, without adapter and pigtail. |
PTB022-02LSAGR | 2 ports PTB022 type termination box with simplex SC/APC adapters, without pigtail. |
PTB022-02FSAGRG652D10 | 2 ports PTB022 type termination box with simplex SC/APC adapters and 1M singlemode SC/APC pigtails. |
|
