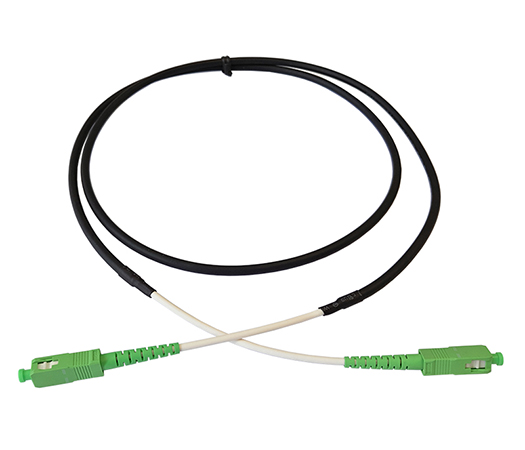

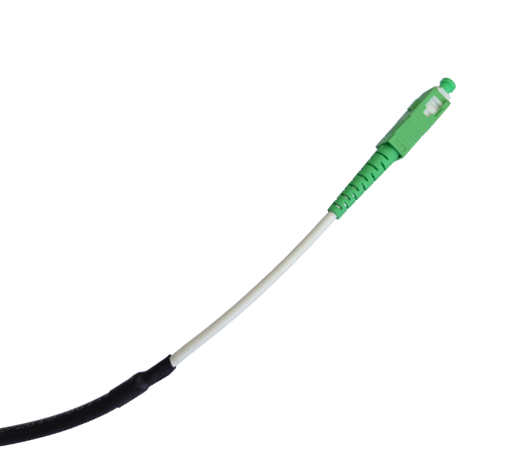

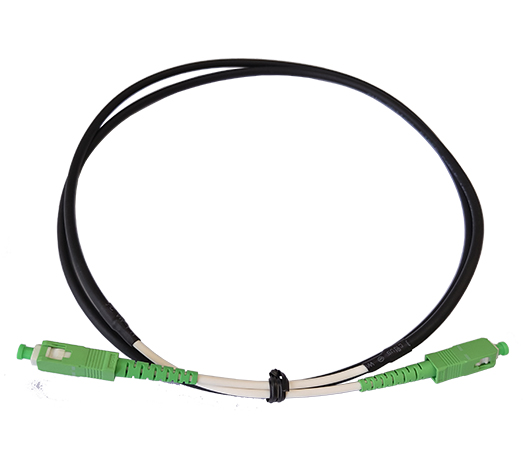

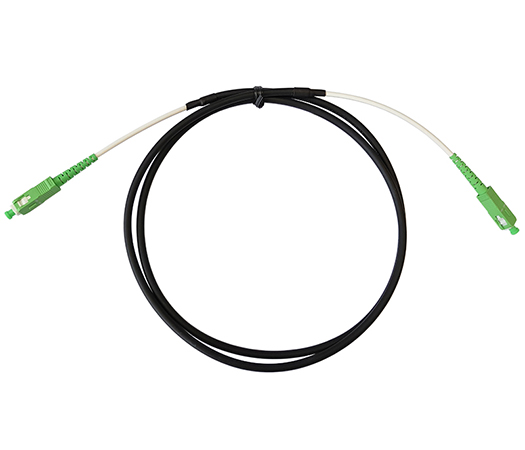

| Outdoor Double Sheathed Simplex Fiber Optic Patch Cord | |||||||||
|
|||||||||
Complied With or Exceeds Standard
. Telcordia GR-326-CORE Generic requirements for Single mode
optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. Comprehensive wiring standard: ANSI/TIA-568-C.3,
ISO/IEC 11801 2nd Ed., CENELEC EN 50173,
. Cable flame resistant rate:OFN or IEC60332-3 standard
. RoHS Compliant Directive 2011/65/EU
Features.
. Available in G652D, G657A1, G657A2, OM1, OM2, OM3 and OM4 fiber types.

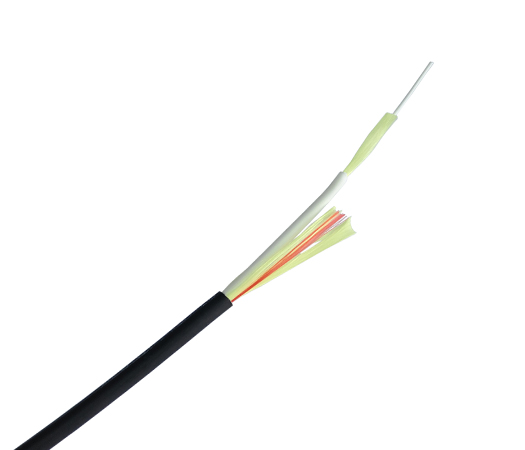

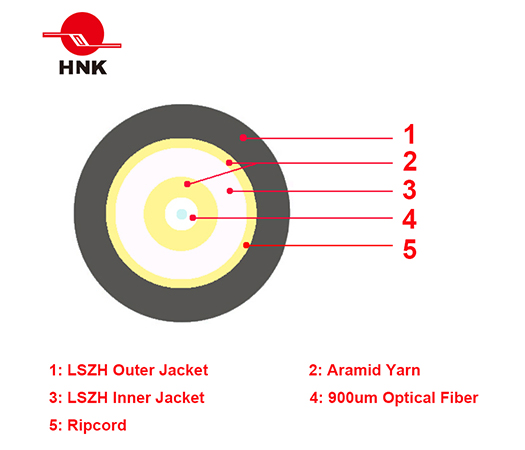

. All dielectric construction with aramid yarn for physical protection and mechanical strength.
. Double LSZH sheath cable gives more excellent tensile strength, mechanical, rodent, ultraviolet and environmental protection.
. Patch cord will be produced to different kind of connectors and different length according to the construction need.
Mechanical, Environmental & Material Data
Fiber Mode | Singlemode or Multimode | Fiber Count | 1 |
Connector Style | SC, FC, ST, LC, | Polish or Ferrule Interface Type | PC, UPC, APC |
Inner Jacket Color | White | Outer Jacket Color | Black |
Jacket Material | LSZH | Strength Member | Aramid Yarn |
Inner Jacket Diameter(mm) | Φ3.0 ±0.1 | Outer Jacket Diameter(mm) | Φ4.6 ±0.1 |
Min. Tensile Load (Short Term) | 400N | Min. Tensile Load (Long Term) | 150N |
Min. Crush Load (Short Term) | 1000N/100mm | Min. Crush Load (Long Term) | 300N/100mm |
Bend Radius-Dynamic (mm) | 20D | Bend Radius-Static (mm) | 10D |
Operating Temperature(°C) | -40°C to 70°C | Storage Temperature(°C) | -40°C to 70°C |
Optical Performance Data
Item | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) | ||||
Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A | ||
Pull Strength | ≥98N | ≥98N | ||||
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： DSPC-AA-BB-CD
Ordering Guide
AA | BB | C | D |
Connector Type | Connector Type | Fiber Type | Length |
FP, SP, SA, LP | FP, SP, SA, LP | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 G652D=9/125 G652D, G657A1=9/125 G657A1, G657A2=9/125 G657A2 | 0015=1.5M 0200=20M 1000=100M |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |
Ordering Sample
Part Number | Description |
DSPC-SP-LA-G657A11000 | SC/PC-LC/APC Outdoor Double Sheathed Simplex Fiber Optic Patch Cord, Singlemode G657A1, 100M. |
|
