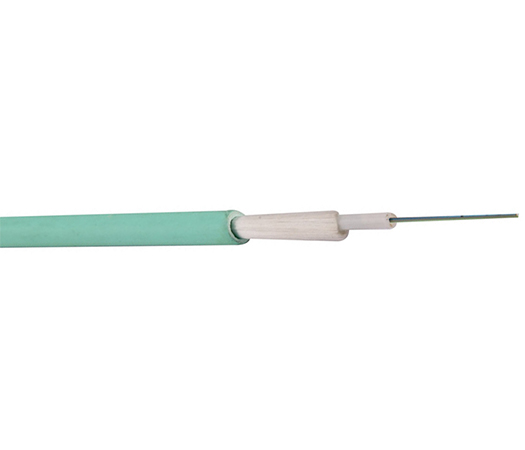

The cable has excellent UV-stabilized and water blocking performance for outdoor duct application (PE outer jacket) or Indoor/ Outdoor application (LSZH outer jacket). The cable combines robust characteristics of outdoor cable and flexibility of indoor cable. By installing this cable costly splice at building entry can be avoided and cable can be routed from outside plant to telecommunication closets or main distribution frames (MDF) through the riser of building and eliminate “50 foot rule” for outdoor cables. The cable is mostly used in LAN application for intra building backbone and interconnections (Campus LAN).

MECHANICAL & ENVIRONMENTAL CHARACTERISTICS


Optical Characteristics
Of all the differences between multimode & singlemode fiber, the most fundamental differences are the size of the fiber’s core and the associated attenuation or loss and bandwidth of the fiber. The smaller the core diameter, the higher the fiber’s bandwidth and the lower the attenuation (loss in dB per kilometer). The fiber’s attenuation and bandwidth are also dependent on wavelength.

Singlemode was for high-speed long distance transmission and multimode (in either the 50 µm or 62.5 µm core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the data carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below.

ANSI/TIA/EIA-598-B Standard Fiber Color Code

Color Code


Ordering Information
Part Number： OC-XX-ABCDCL

Ordering Guide

Ordering Sample
