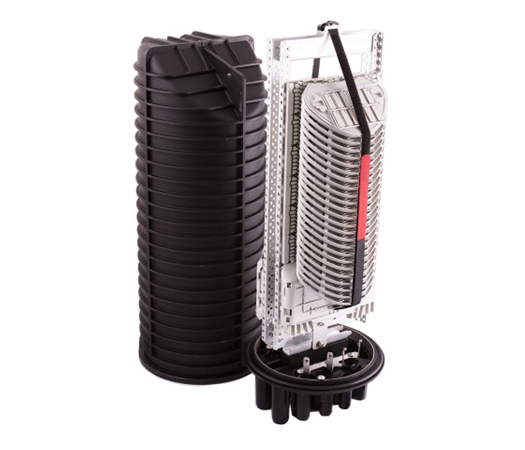

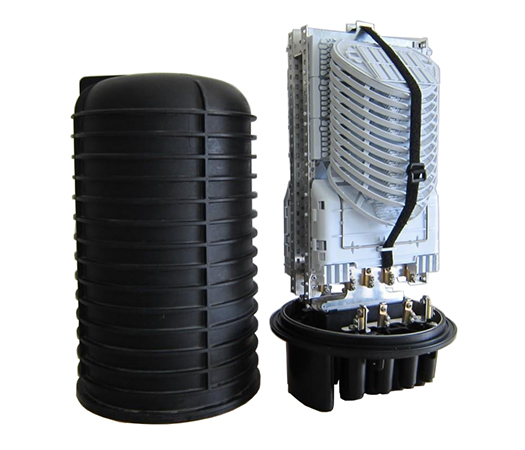

| 288/672 Fibers Dome Fiber Optic Splice Closure | |||||||||
|
|||||||||
. YD/T814.1-2004,
. YD/T814.2-2005
. ITU L.13-2003,
. IEC1073-1：1994
Features
. To adopt high-quality PP and other chemical assistant agent (ageing resistance & ultraviolet radiation resistance) make the splice closure has longer life time.
. The base and dome are sealed with a silicone rubber O-ring and a hoop locking system.
. Hoop locking structure system, no special tools are needed to open the splice closure, and it can be easy opened and used repeatedly.
. The inner parts and fixing parts are made of stainless steel.
. Closure with an earthing device protect it from damage by lightning.

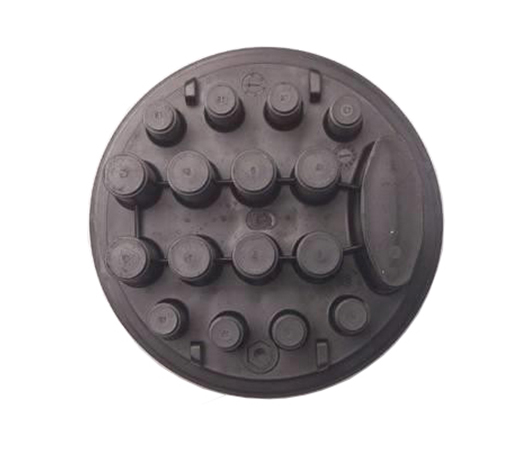

. 16 round entry/exit ports for drop cables and 1 oval port for looped cable.
. The inlet/outlet cables adopt heat-shrinkable for ease of installation and reentry.
. Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber.
. Modular groove plate and Splice trays are easy to insert and remove, can accommodate 24 splice trays (D03E1) or 56 splice trays (D03E2).
. Storage baskets are available for mass storage of fibers of central core cable constructions.
Specifications
Working Temperature | -25～+60°C | Storage Temperature | -40～+70°C |
Humidity | 93%(+30°C) | Air Pressure | 70KPa～106KPa |
Closure Material | PP | Splice Tray Material | ABS |
Color | black | Max. Capacity (Per Tray) | 12 |
Dimension (mm) | Φ298*504 (D03E1) Φ312*679 (D03E2) | Max. Capacity of Splice Trays | 24 (D03E1) 56 (D03E2) |
Max. Capacity (Fibers) | 288 (D03E1, single fiber) | Max. Capacity (Fibers) | 672 (D03E2, single fiber) |
Cables Entry & Exit | 8 round ports (Φ16mm), 8 round ports (Φ21.2mm) | Suitable for Cable Diameter of Round Port(Φ16mm) | Φ6-Φ16mm |
Suitable for Cable Diameter of Round Port(Φ21.2mm) | Φ6-Φ21mm | ||
1 oval port(31.6x90.6mm) | Suitable for Cable Diameter of Oval Port | Φ10-Φ25mm (x 2 cables) | |
Protective Level | IP68 | Sealing Method | mechanical and heat-shrinkable seals |
|
