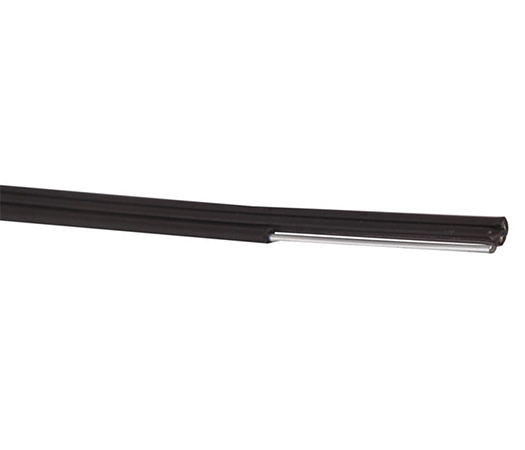

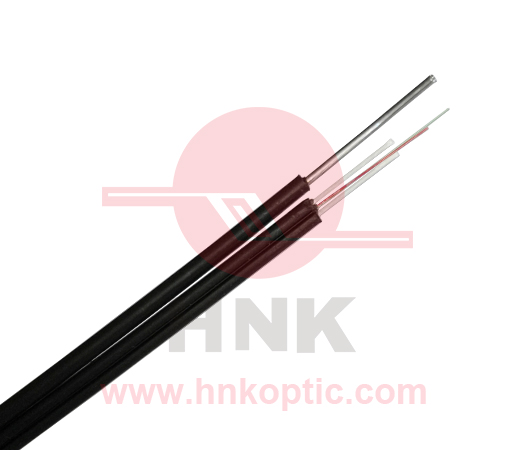

| 1~12 Cores Outdoor Self-Supporting Fiber Optic Drop Cable | |||||||||
|
|||||||||
Complied with or Exceeds Standard
ITU-T Recommendation G.652.D/G.655/G.657.A1/G.657.A2/G.657.B2/G.657.B3
IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2/ B6.b3 Optical Fiber Specification.
ANSI/TIA/EIA 568C.3 ROHS Compliant Directive 2011/65/EU(ROHS2.0)
Outdoor self-supporting flat drop cable is a good design that has high tensile strength and flexibility in a compact cable size, which used for FTTH medium span aerial installations project solution.

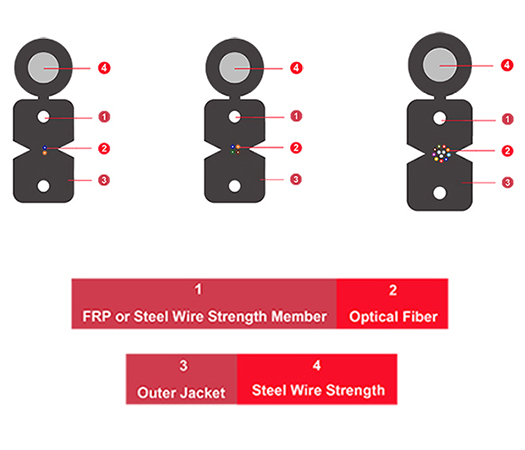

The messenger cables support the fiber cables to withstand the tensile force for aerial installations. Strength member by dielectric fiber reinforced plastic (FRP) or steel wire.
It is very light in construction and easy to install, generally used for connecting Main distribution frame to consolidation point in home, apartment or offices. Industry standard connectors can be used for direct termination because of standard 250µm fiber size.
Mechanical & Environmental Characteristics
Cable Type | GJYXFCH | GJYXCH | ||||
Min. Tensile Load | Short Term: 600N | Long Term: 300N | Short Term: 600N | Long Term: 300N | ||
Min. Crush Load | Short Term: 2200N/100mm | Long Term: 1000N/100mm | Short Term: 2200N/100mm | Long Term: 1000N/100mm | ||
Bend Radius- Dynamic | 60mm (G652D), 30mm (G657A1, G657A2) | |||||
Bend Radius- Static | 30mm (G652D), 15mm (G657A1, G657A2) | |||||
Outer Jacket Material | Standard: LSZH Optional: TPU, PVC or other | |||||
Outer Diameter (mm) | (2.0±0.1) x (5.0±0.1) mm (1~4 Cores), (2.8±0.1) x (6.3±0.1) mm (6~12 Cores) | |||||
UL Fire Rated | OFNR | Fiber Type | G652D, G657A1, G657A2 | |||
Operating Temperature | -40°C to +70°C | Storage Temperature | -40°C to +70°C | |||
Note: The minimum bend radius is only applicable to drop cable without messenger wire.
Optical Characteristics
Charac Teristic | Condition | Unit | G657A2 | G657A1 | G652D | |
Attenuation | 1310 nm | [dB/km] | ≤0.36 | ≤0.40 | ||
1550 nm | [dB/km] | ≤0.25 | ≤0.30 | |||
Zero Dispersion Wavelength | [nm] | 1300-1324 | ||||
Zero Dispersion Slope
Typical value
Typical value | [ps/(nm².km)] | ≤0.092 | ≤0.091 | |||
Cable Cutoff Wavelength λсс | [nm] | ≤1260 | ||||
Mode Field Diameter (MFD) | 1310 nm
| [µm] | 8.4~9.2 | 8.7~9.5 | ||
1550 nm
| [µm] | 9.3~10.3 | 9.9~10.9 | |||
Macro Bending Induced Attenuation | 10 Turns Around a Mandrel @ 15mm Radius | 1550 nm | [dB] | ≤0.03 | ≤0.25 | - |
10 Turns Around a Mandrel @ 15mm Radius | 1625 nm | [dB] | ≤0.1 | ≤1.00 | - | |
1 Turn Around a Mandrel @ 10mm Radius | 1550 nm | [dB] | ≤0.1 | ≤0.75 | - | |
1 Turn Around a Mandrel @ 10mm Radius | 1625 nm | [dB] | ≤0.2 | ≤1.50 | - | |
1 Turn Around a Mandrel @ 7.5mm Radius | 1550 nm | [dB] | ≤0.2 | - | - | |
1 Turn Around a Mandrel @ 7.5mm Radius | 1625 nm | [dB] | ≤0.5 | - | - | |
Ordering Information
Part Number： OC-XX-A(B)CDCL
Ordering Guide
XX | A | B | C | D | CL |
Cable Type Code | Jacket | Fiber/Per Loose Tube or Fiber/Per Sub Unit | Fiber Count | Fiber Type | Jacket Color(CL) |
GJYXFCH,GJYXCH | 1=PVC 2=LSZH 3=PE | 2=2 Fibers/Loose Tube 12=12 Fibers/Loose Tube …… 2=2 Fibers/Sub Unit 12=12 Fibers/Sub Unit | No. Of Fiber 004F, 048F | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 OM5=50/125 OM5, G652D=9/125 G652D G655=9/125 G655, G657A1=9/125 G657A1 G657A2=9/125 G657A2, G657B3=9/125 G657B3 | As noted in Color code chart |
Color Code
Ordering Sample
Part Number | Description |

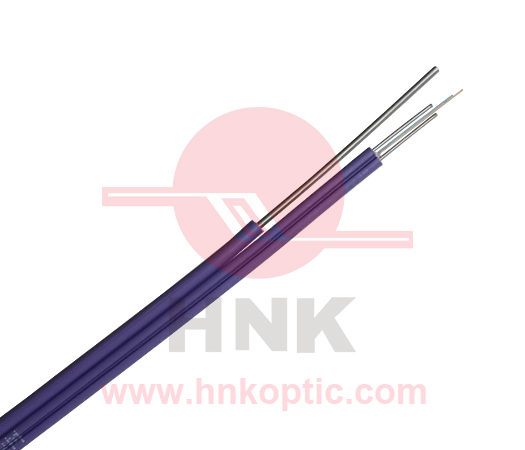

OC-GJYXCH-22G657A1PU | 2 Cores Singlemode G657A1 GJYXCH Drop Cable, LSZH Jacket, Purple Color. |
|
