Splitter & Module & Patch Panel-HNK Optic Equipment Co.,Limited

Standard Compliance
▪  Telcordia GR-1221-CORE-1999 & GR-1209-CORE-2001
▪  TIA/EIA-568B.3 Fiber Optic Cabling Components Standard
▪  IEE802.3z Standards for Fiber Optic Cabling
▪  RoHS Certified for European Market Requirements

Features & Benefits
▪  Low insertion losses, High Uniformity, High Reliability, High directivity
▪  Ultra-broadband performance (1250-1650nm)
▪  Low Polarization Dependant Loses (PDL) and Polarization Mode Dispersion (PMD)
▪  1 or 2 input channels and up to 64 output channels
▪  Ultra small, easy installation, suitable for all applications
▪  Available with all type of packages and connectors
▪  Ready for use in uncontrolled environment

Specifications
Telcordia 1209 & 1221 Test results：

Name of the test	Condition	Duration
Temperature- Humidity aging	85°C and 85% RH	7 days
Vibration	10 - 55Hz, 1.52mm double amplitude, in three axes	1 hour
Component Impact Test	Impact of 500g (mass<=0.125kg), 1ms , half sine pulse	2 impacts
Temperature Cycling Test	-40°C to + 70°C , Ramp rate: 1°C /min, Dwell time >15min	10 cycles
Temperature- Humidity cycling	-40°C to + 85°C , between 10°C and 23°C - 85% RH, at 85°C -20%RH, between 23°C and 85°C - maintain a linear change in RH, below 10°C - uncontrolled RH	14 days
Water Immersion	43 ± 2°C , PH 5.5 ± 0.5	7 days
Fiber Side Pull test	0.23 kg load, 90° angle , 2 directions	5 seconds
Fiber Side Pull test	0.45 Kg load for Single Input Fiber , 1.5 Kg load for 8 Fiber Ribbon Outputs	5 seconds

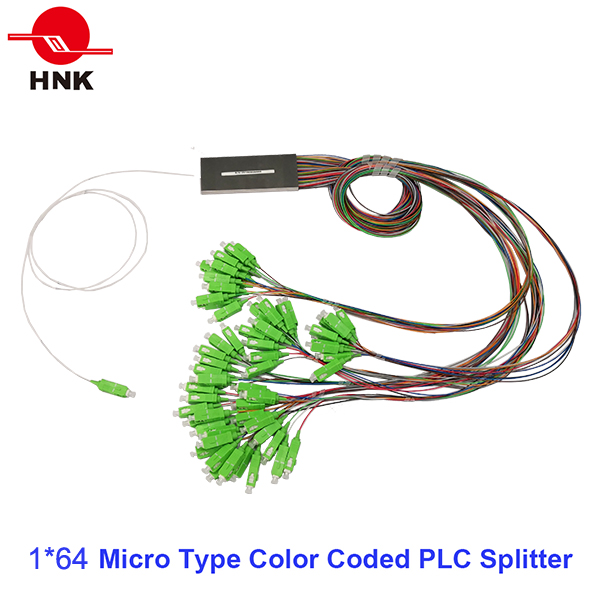

1 x N
Parameter		Unit	1 x 2	1 x 4	1 x 8	1 x 16	1 x 32	1 x 64
Insertion Loss	Max.	dB	3.8	7.0	10.4	13.9	17.2	22.0
Channel Uniformity	Max.	dB	0.6	0.5	0.5	1.4	1.6	2.5
Polarization Dependent Loss	Max.	dB	0.2	0.3	0.3	0.3	0.3	0.3
Wavelength Dependent Loss	Max.	dB	0.3	0.3	0.3	0.3	0.3	0.3
Temperature Dependent Loss	Max.	dB	0.5	0.5	0.5	0.5	0.5	0.5
Connector Dependent Loss	Max.	dB	0.2	0.2	0.2	0.2	0.2	0.2
Operating Wavelength	Min.-Max	nm	1250 ~ 1650
Return Loss	Min.	dB	55
Directivity	Min.	dB	55
Operating Temperature		°C	-40 ~ + 85
Storage Temperature		°C	-40 ~ + 85
Maximum Input Power	Max.	mW	500
Fiber Type		-	ITU G.652D or G.657A

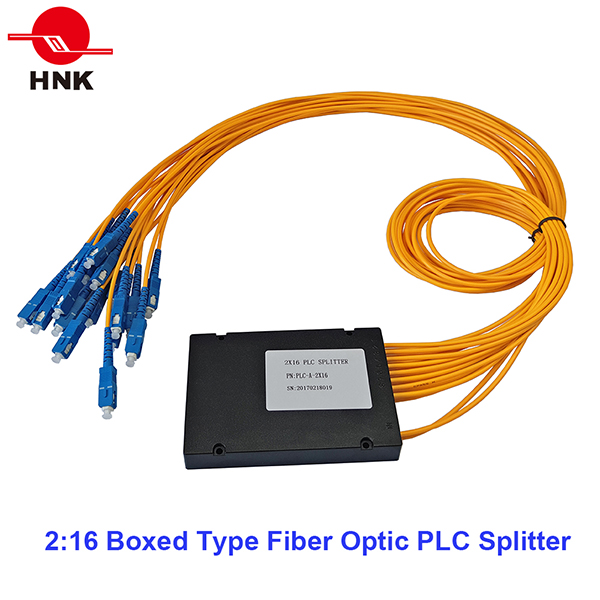

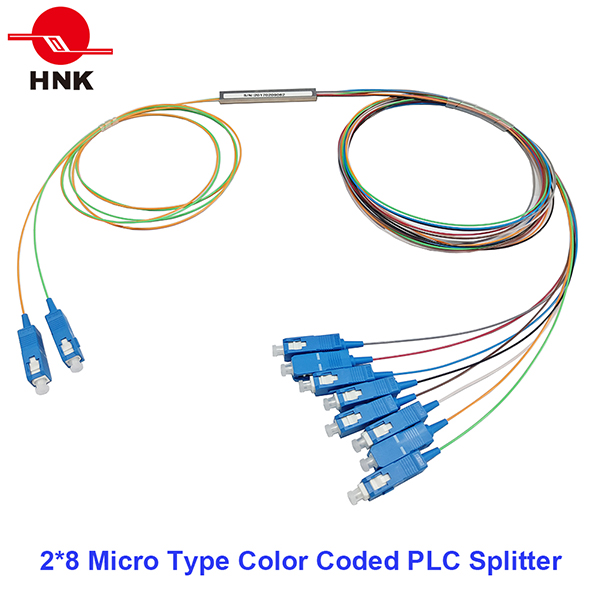

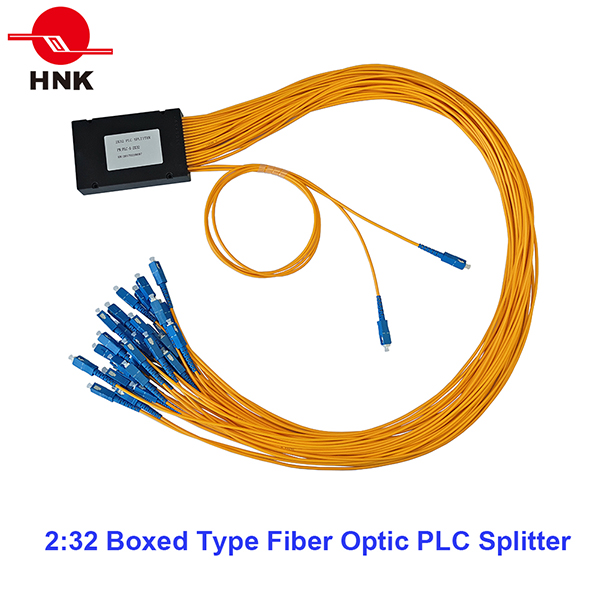

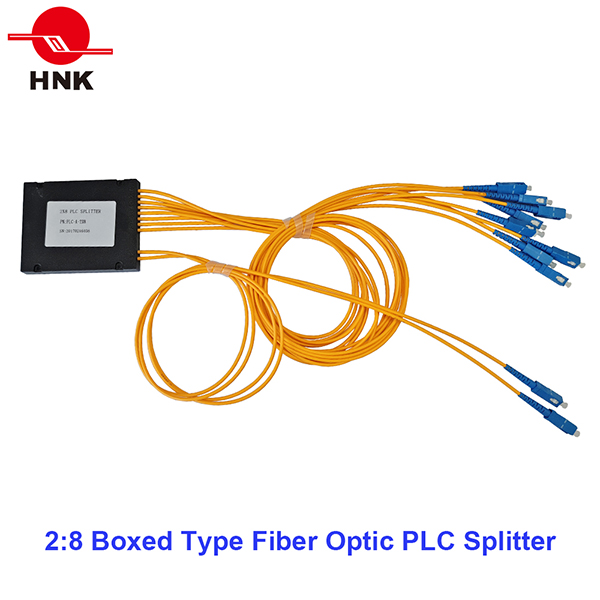

2 x N
Parameter		Unit	2 x 2	2 x 4	2 x 8	2 x 16	2 x 32	2 x 64
Insertion Loss	Max.	dB	4.0	7.3	10.7	14	17.5	22.5
Channel Uniformity	Max.	dB	0.8	1.0	1.0	1.5	1.8	3.0
Polarization Dependent Loss	Max.	dB	0.2	0.3	0.3	0.3	0.3	0.4
Wavelength Dependent Loss	Max.	dB	0.3	0.3	0.3	0.3	0.3	0.3
Temperature Dependent Loss	Max.	dB	0.5	0.5	0.5	0.5	0.5	0.5
Connector Dependent Loss	Max.	dB	0.2	0.2	0.2	0.2	0.2	0.2
Operating Wavelength	Min.-Max.	nm	1250 ~ 1650
Return Loss	Min.	dB	55
Directivity	Min.	dB	55
Operating Temperature		°C	-40 ~ + 85
Storage Temperature		°C	-40 ~ + 85
Maximum Input Power	Max.	mW	500
Fiber Type		-	ITU G.652D or G.657A

Ordering Information

Using the available configurations amend/create product codes using the formula below.

Part Number： PLC-ABC-DEF-GHI

Ordering Guide

A	Input Port	1=1 Port, 2=2 Ports
B	Output Port	02=2 Ports, 16=16 Ports, 64=64 Ports

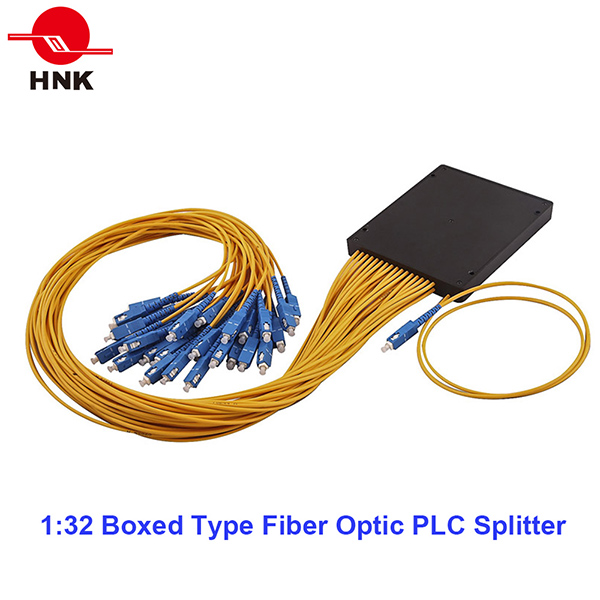

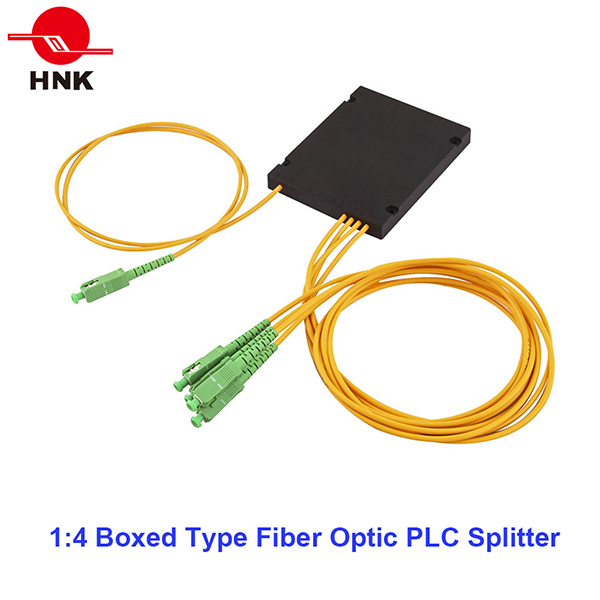

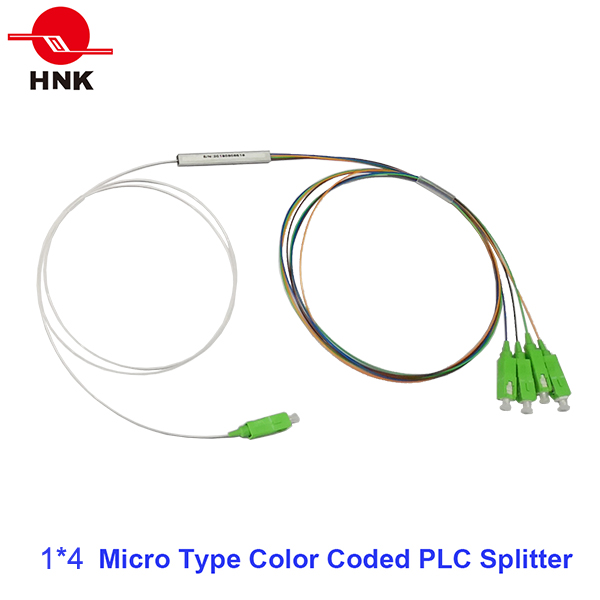

C	Packaging Type	B=Boxed Type, M=Micro Type
D	Diameter of Input Fiber	09=0.9mm, 20=2.0mm, 30=3.0mm
E	Input Fiber Connector type	FP, SP, SA, LP (As noted in Connector type code chart )
F	Input Fiber Length	10=1M, 15=1.5M, 20=2M
G	Diameter of Output Fiber	09=0.9mm, 20=2.0mm, 30=3.0mm
H	Output Fiber Connector type	FP, SP, SA, LP (As noted in Connector type code chart )
I	Output Fiber Length	05=0.5M, 10=1M, 15=1.5M, 20=2M

Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC	MU	MU	DN	DIN
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC	MT	MTRJ	E2	E2000

Ordering Sample

Part Number

Description

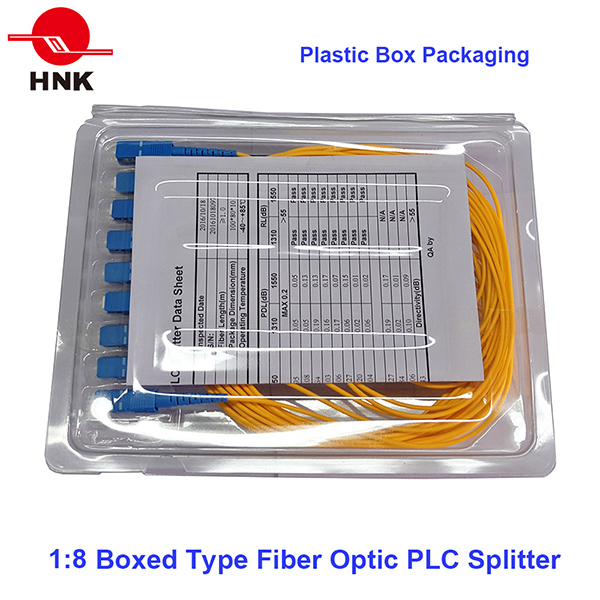

PLC-108B-30SP05-30SP05

1*8 PLC splitter, boxed type package, input and output fiber Ф 3, length 0.5M, and connector SC/PC.

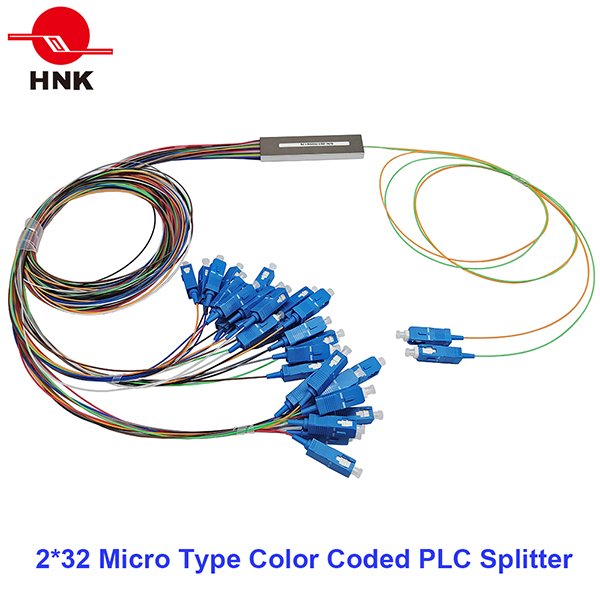

PLC-232M-09SP10-09SP10

2*32 PLC splitter, micro type package, input and output fiber Ф 0.9, length 1M, and connector SC/PC.
