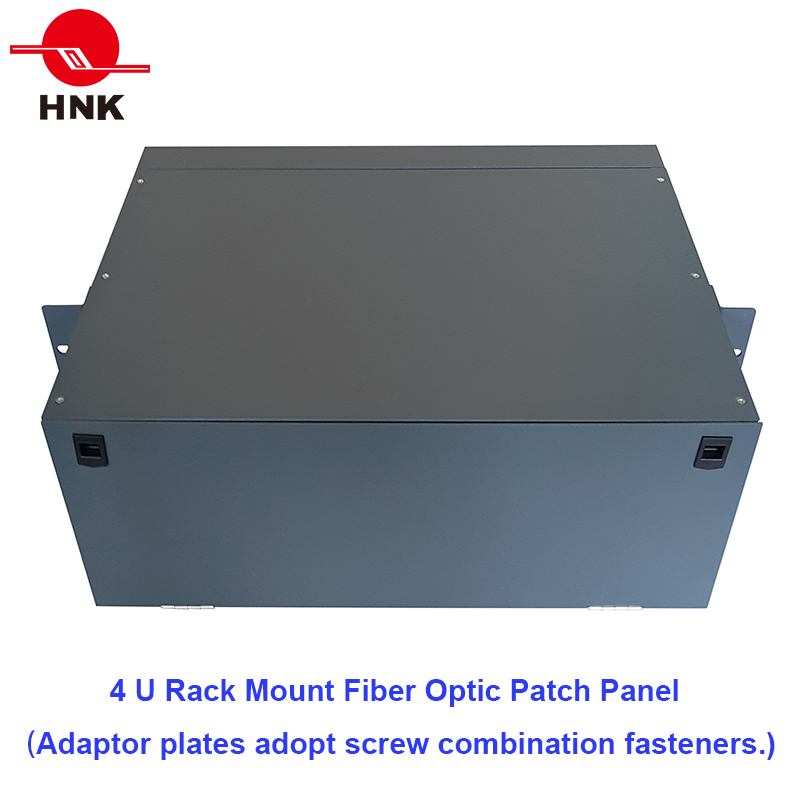

| New 4U Rack Mount Patch Panel | |||||||||
|
|||||||||
Standards Compliance
. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Features
. Providing protective connections for optical fibers and distribution pigtails.
. Insulating fiber metal components from fiber-end shells and conveniently leading out grounding wires.
. Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
. Multiple installation methods are available, e.g. rack-mounting in the trough.
. Can be loaded with up to 12 long adaptor plates with 6-port or 12-port, FC, SC, ST, LC connector are applied.

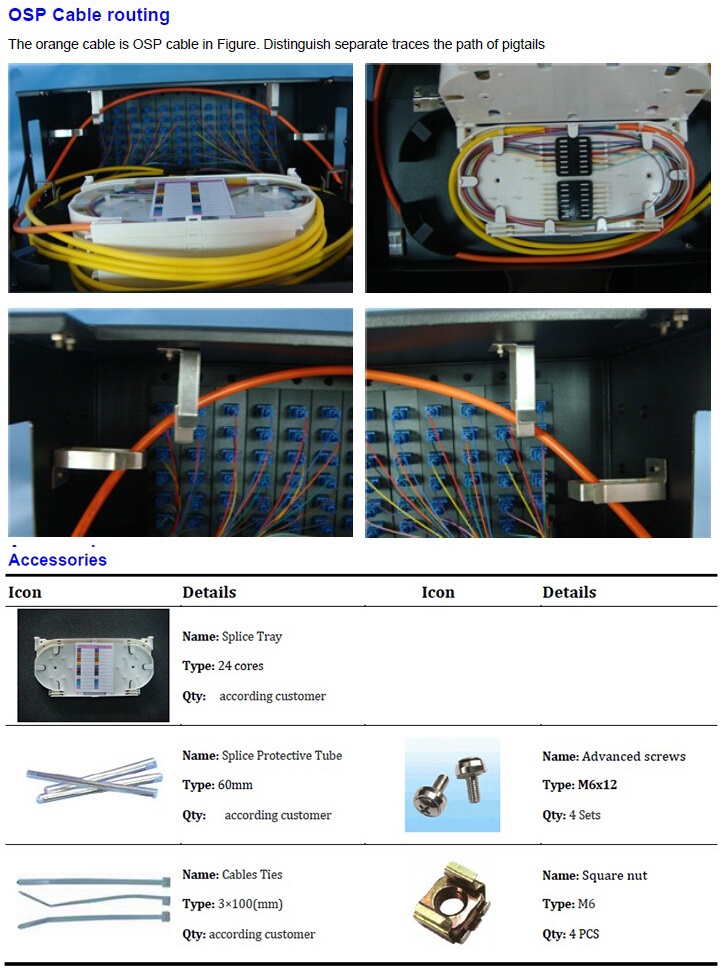

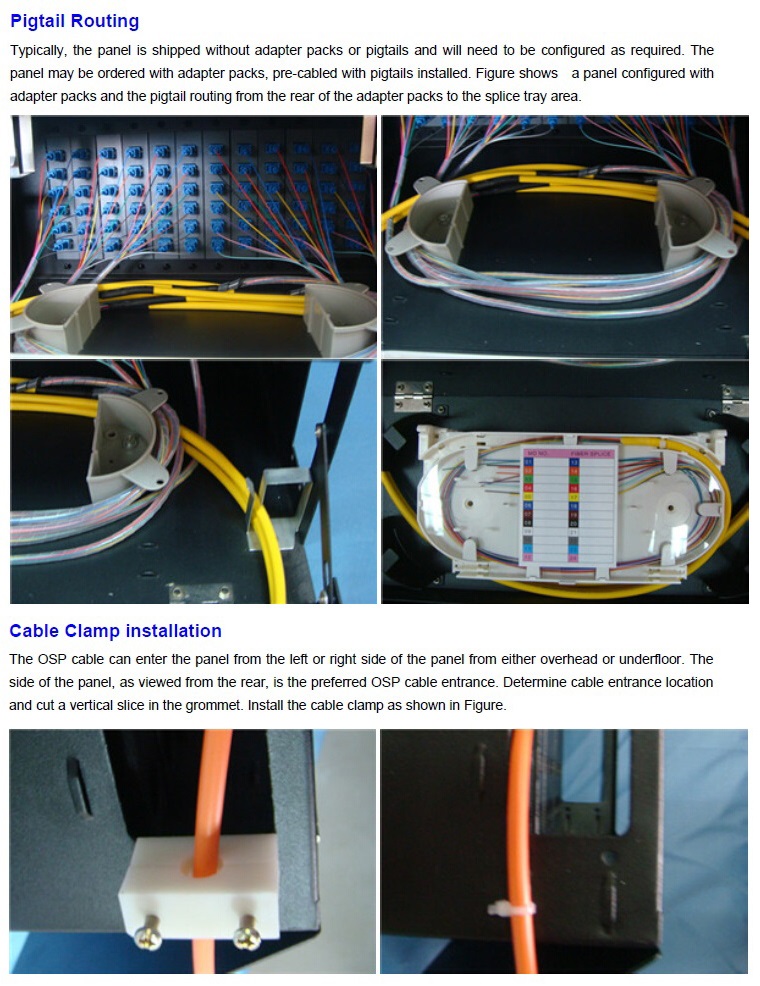

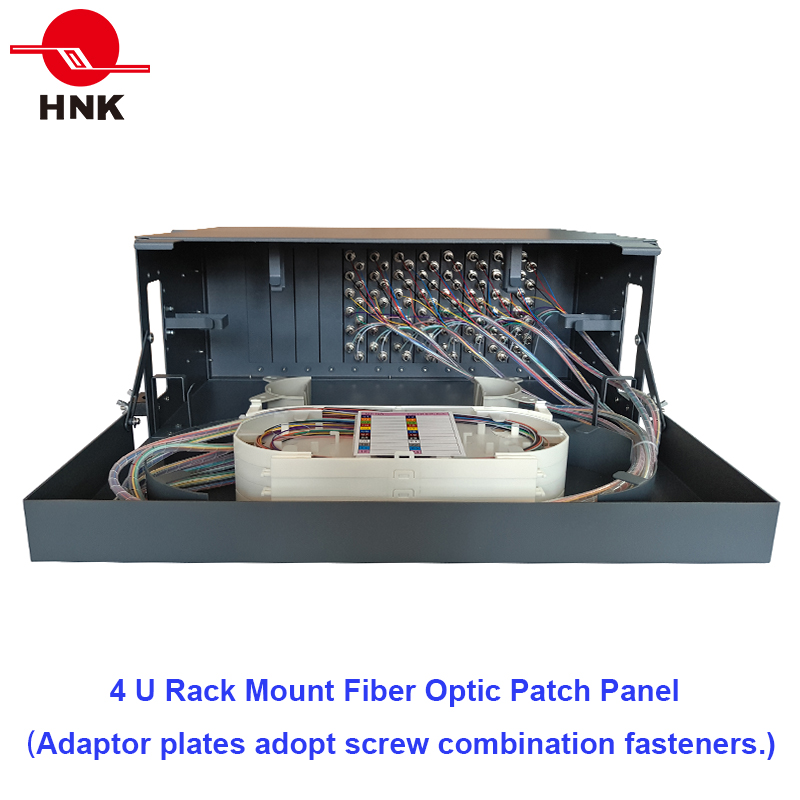

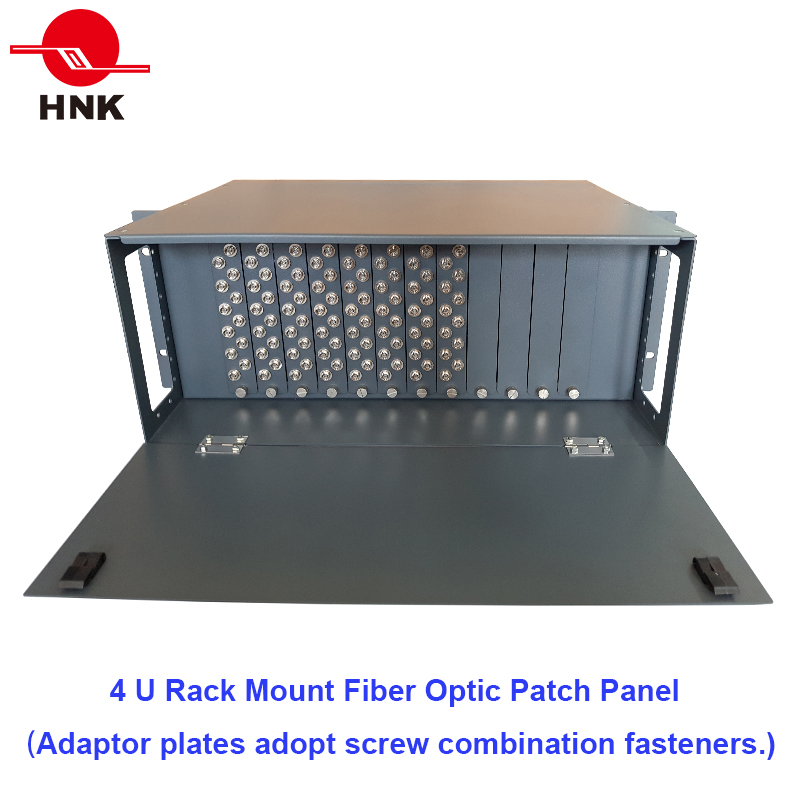

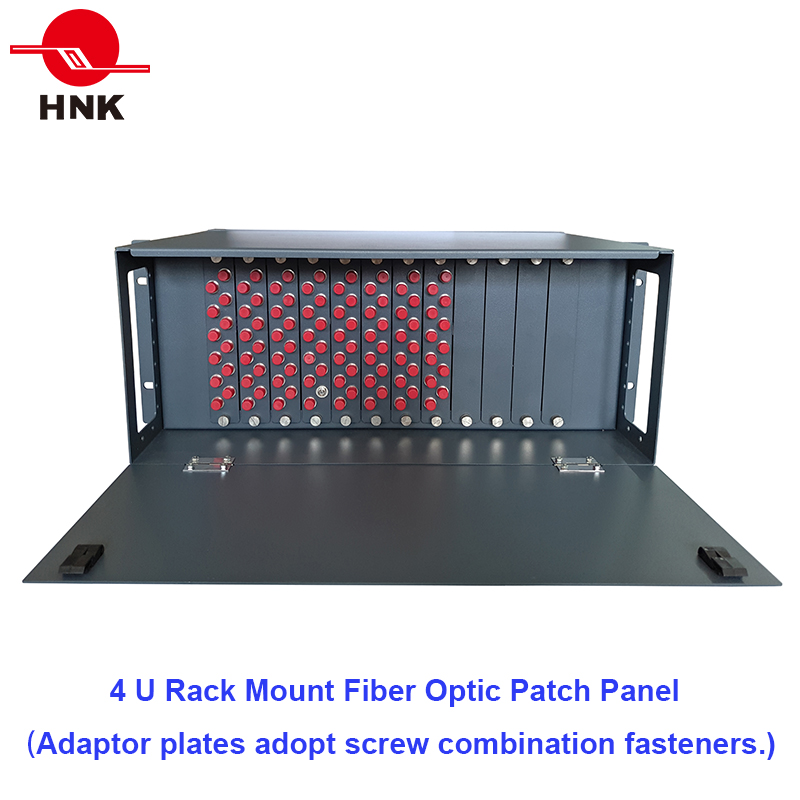

. Adaptor plate fixing assembly adopt screw combination fasteners, install more firmly.
Specifications
Patch Panel | Adaptor | ||
Size（H×W×D ）mm | 4U(H) x 19”(W) x 350mm(D) | Multimode Insertion Loss | 0.2dB Maximum |
Material | 1.2mm Cold Rolled Steel | Singlemode Insertion Loss | 0.2dB Maximum |
Material Coating | Powder | Mating durability | >500 Mating Cycles |
Humidity | 0-90%, non-condensing | Multimode Adaptor Wavelength | 850 to 1300nm |
Operating Temperature | -10°C to 60°C | Singlemode Adaptor Wavelength | 1310 to 1550nm |
Storage Temperature | -40°C to 85°C | ROHS Compliant | Yes |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DEF)
Ordering Guide
| XX | patch panel Type | WPP=wall mount patch panel, RPP=rack mount patch panel |
| AA | Product ID | HPS |
| BB | Port Capacity | 012=12 Ports, 018=18 Ports, 024=24 Ports, 036=36 Ports |
| C | configuration | E=only patch pane, L=With Adapter Panels, F=With Adapter Panels and Pigtails |
| D | Connector Type | FP,SP,SA,LP |
| E | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
| F | Fiber Length | 05=0.5M, 10=1M, 20=2M |
Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
| MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |
Ordering Sample
| Part Number | Description |
| RPP-HPS-E | 4U RPP-HPS Type Rack Mount Patch Panel without adaptor plate and pigtail. |
| RPP-HPS-72FSPG652D15 | 4U 72 Fibers RPP-HPS Type Rack Mount Patch Panel With Simplex SC/PC SM Adapter and 1.5M Singlemode G652D SC/PC Pigtail. |
|
