| Armored Optical Fiber Cable | |||||||||
|
|||||||||
Complied with or Exceeds Standard
IEC 60793-2-10 type A1b, TIA/EIA-492AAAA-A IEC 60793-2-10 type A1a.1, TIA/EIA-492AAAB-A.
IEC 60793-2-10 type A1a.2, ISO/IEC 11801 OM-3, TIA/EIA-492AAAC IEEE 802.3z Gigabit Ethernet
IEC 60793-2-10 type A1a.3, ISO/IEC 11801 OM-4, TIA/EIA-492AAAD. IEEE 802.3ae 10 Gigabit Ethernet
IEC 60793-2-10 type Ala.4, ISO/IEC 11801 OM5, TIA/ElA-492AAAE. IEEE 802.3ba 40&100 Gigabit Ethernet
ITU-T Recommendation G.652.D/G.655/G.657.A1/G.657.A2/G.657.B2/G.657.B3
IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2/ B6.b3 Optical Fiber Specification.
ANSI/TIA/EIA 568C.3 ROHS Compliant Directive 2011/65/EU(ROHS2.0)
The outer jacket provides protection against abrasion and twist. The flexible metal tube keeps the fiber protected from damage, it will provide additional crush resistant and rodent attack prevention. And the aramid yarn is placed inside the outer jacket to cover the metal tube. All component materials meet the EU RoHS and REACH Directive standards.

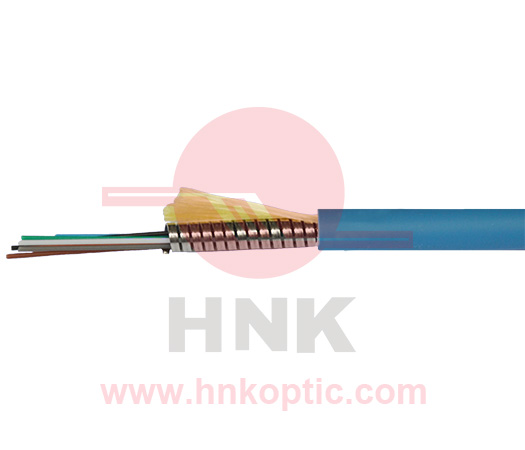

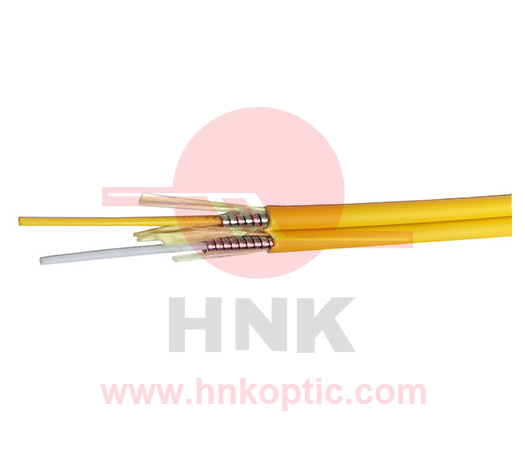

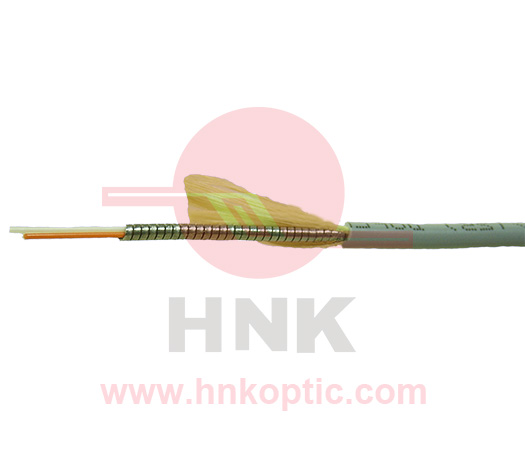

Armored fiber optic cable retains all the features of standard patch cables, but are much stronger and tougher to withstand crush, pressure and rodents. It possesses high flexibility and durability when used in harsh environment or limited space. The superior features make armored fiber cable widely used in various terrible environment.
Mechanical & Environmental Characteristics

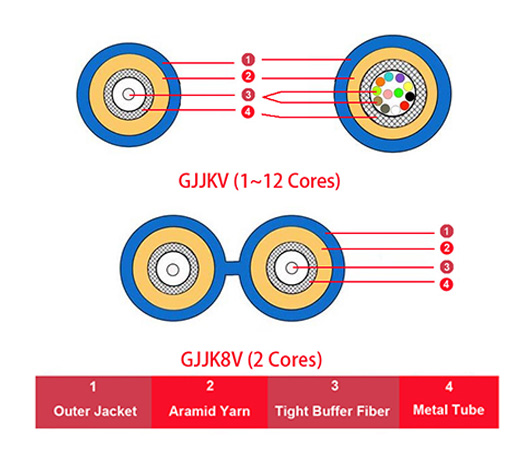

Cable Type | GJJKV | GJJK8V | ||||||
Fiber Capacity | 1 | 2 | 4 | 6 | 8 | 12 | 2 | |
Min. Tensile Load (Short Term) | 400 | 400 | 400 | 600 | 800 | 800 | 400 | |
Min. Tensile Load (Long Term) | 200 | 200 | 200 | 300 | 400 | 400 | 200 | |
Min. Crush Load (Short Term) | 5000 | Min. Crush Load (Long Term) | 3000 | |||||
Bend Radius-Dynamic (mm) | 20D | Bend Radius-Static (mm) | 10D | |||||
Outer Diameter (mm) | 2.0/3.0±0.1 | 3.0±0.1 | 3.9±0.1 | 4.4±0.1 | 4.4±0.1 | 5.9±0.1 | 2.85x5.7±0.1 | |
Outer Jacket Material | Standard: PVC Optional: LSZH or other | UL Fire Rated | OFNR | |||||
Outer Jacket Color | Standard: Blue or Yellow (Singlemode), Gray (Multimode) Optional: Depending on the customer’s demands | |||||||
Operating Temperature | -40°C to +70°C | Storage Temperature | -40°C to +70°C | |||||
Note: “D” is Cable Outer Diameter.
Ordering Information
Part Number： OC-XX-A(B)CDCL
Ordering Guide
XX | A | B | C | D | CL |
Cable Type Code | Jacket | Fiber/Per Loose Tube or Fiber/Per Sub Unit | Fiber Count | Fiber Type | Jacket Color(CL) |
GJJKV | 1=PVC 2=LSZH 3=PE | 2=2 Fibers/Loose Tube 12=12 Fibers/Loose Tube …… 2=2 Fibers/Sub Unit 12=12 Fibers/Sub Unit | No. Of Fiber 004F, 048F | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 OM5=50/125 OM5, G652D=9/125 G652D G655=9/125 G655, G657A1=9/125 G657A1 G657A2=9/125 G657A2, G657B3=9/125 G657B3 | As noted in Color code chart |
Color Code
Ordering Sample
Part Number | Description |
OC-GJJKV-112G652DBL | 12 Cores Singlemode G652D Armored Fiber Optic Cable, PVC Jacket, Blue Color. |
|
