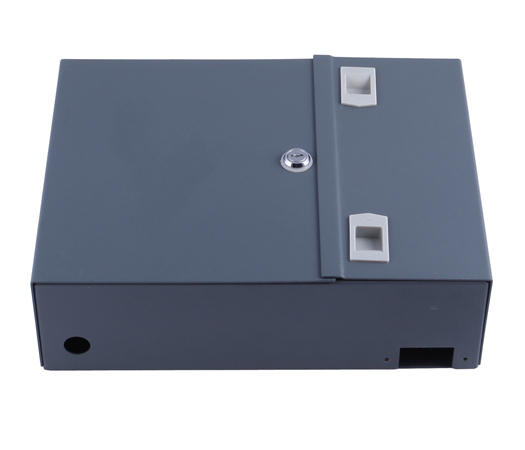

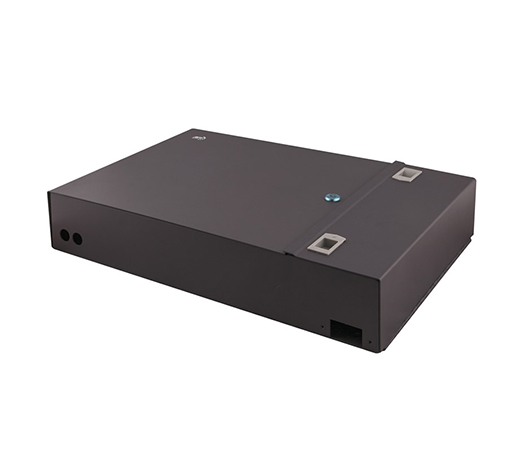

Wall Mount-HNK Optic Equipment Co.,Limited

Certification and Compliance
. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )

Features
. Providing protective connections for optical fibers and distribution pigtails.
. Insulating fiber metal components from fiber-end shells and conveniently leading out grounding wires.

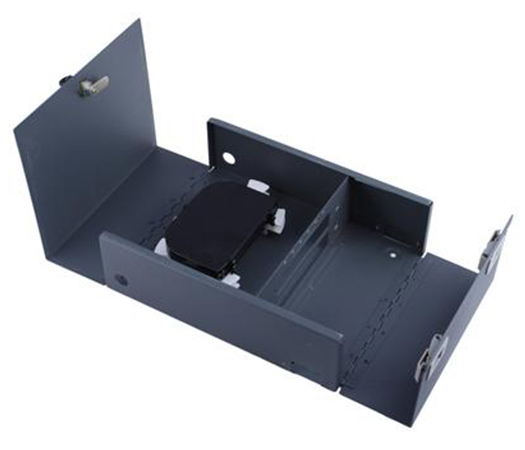

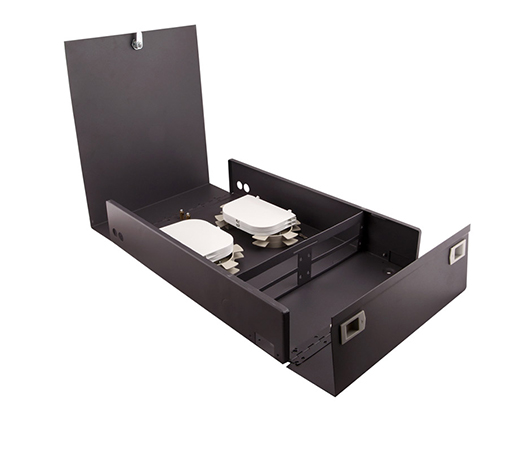

. Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
. Multiple installation methods are available, e.g. rack-mounting in the trough.

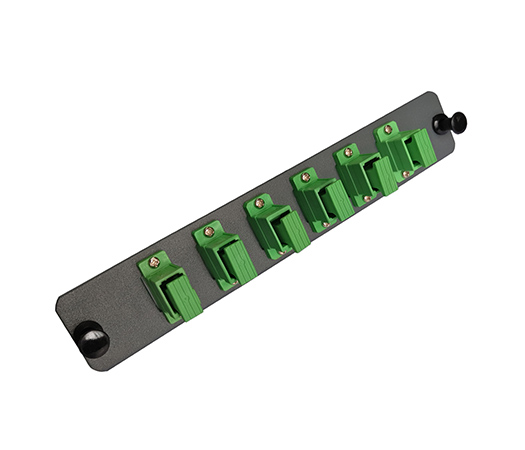

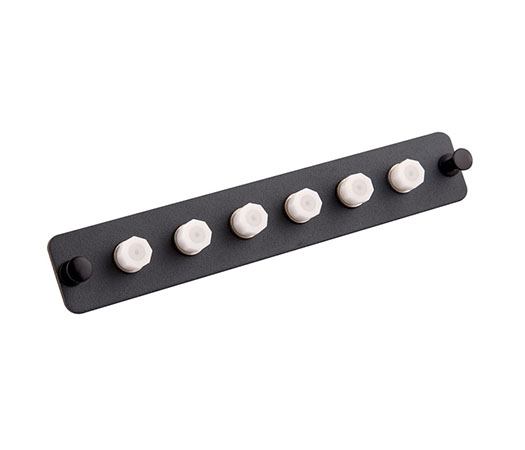

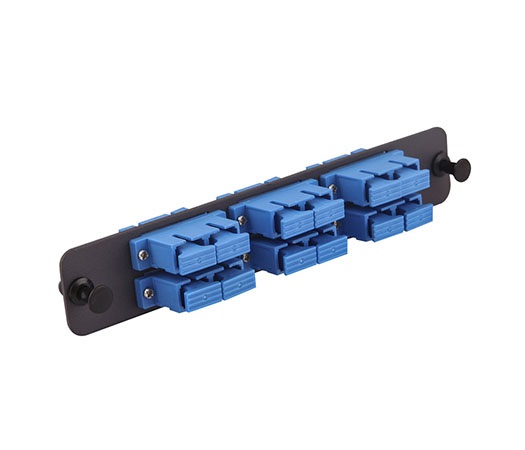

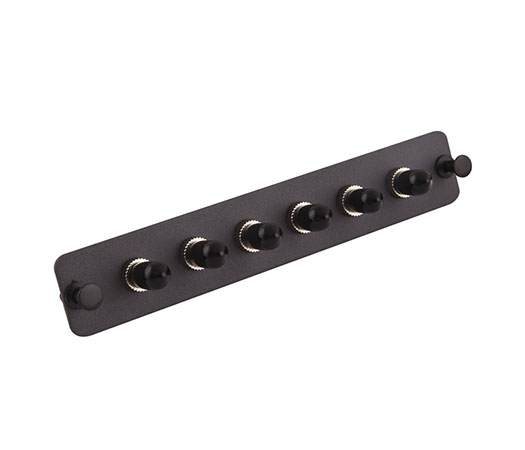

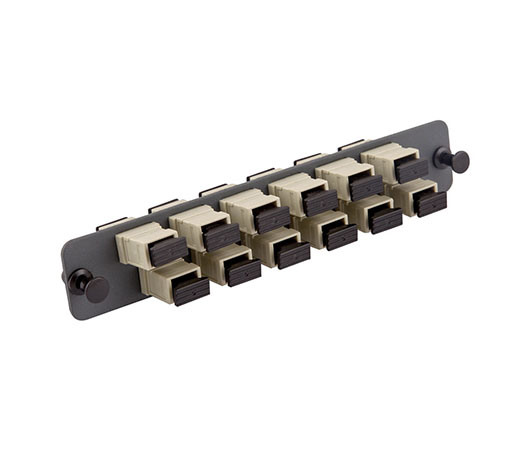

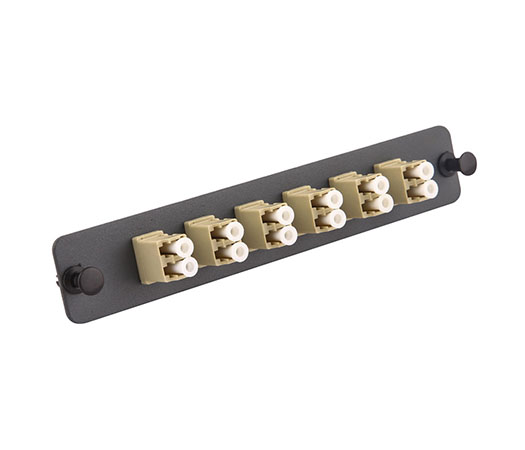

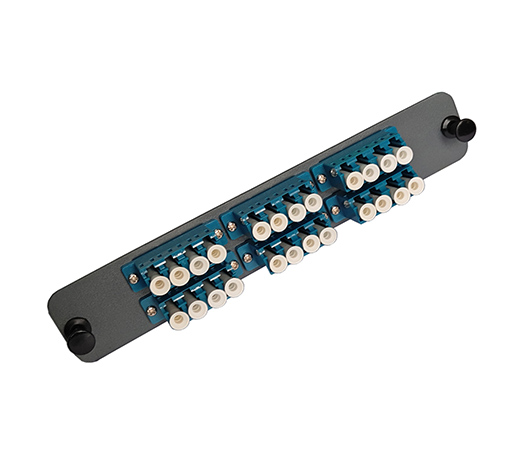

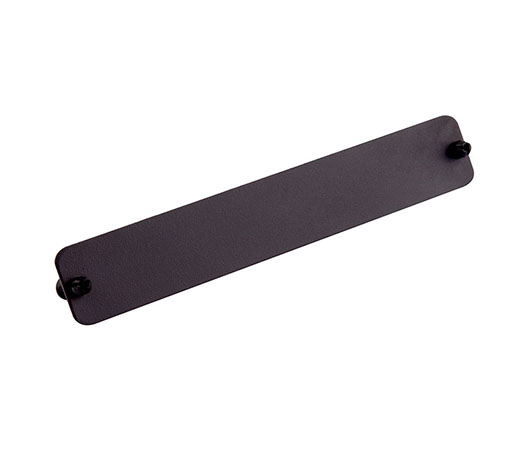

. 6-port or 12-port adapter panel , FC, SC, ST, Double LC connector are applied.

Specifications

Patch Panel		Adaptor
Size（H×W×D ）mm	24 Fiber：260 x 335(W) x 100mm(D) 48 Fiber：350 x 520(W) x 100mm(D)	Multimode Insertion Loss	0.2dB Maximum
Material	1.2mm Cold Rolled Steel	Singlemode Insertion Loss	0.2dB Maximum
Material Coating	Powder	Mating durability	>500 Mating Cycles
Humidity	0-90%, non-condensing	Multimode Adaptor Wavelength	850 to 1300nm
Operating Temperature	-10°C to 60°C	Singlemode Adaptor Wavelength	1310 to 1550nm
Storage Temperature	-40°C to 85°C	ROHS Compliant	Yes

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： WPP-AA-BBC(DEF)

Ordering Guide

XX	patch panel Type	WPP=wall mount patch panel, RPP=rack mount patch panel
AA	Product ID	OW1=24 Fibers Patch Panel, OW2=48 Fibers Patch Panel.
BB	Port Capacity	012=12 Ports, 018=18 Ports, 024=24 Ports, 036=36 Ports
C	configuration	E=only patch pane, L=With Adapter Panels, F=With Adapter Panels and Pigtails
D	Connector Type	FP,SP,SA,LP
E	Fiber Type	OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A
F	Fiber Length	05=0.5M, 10=1M, 20=2M

Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC
MU	MU	DN	DIN	MT	MTRJ	E2	E2000

Ordering Sample

Part Number	Description
WPP-OW1-E	24 Fibers WPP-OW1 Type Wall Mount Patch Panel without adaptor plate and pigtail.
WPP-OW2-E	48 Fibers WPP-OW2 Type Wall Mount Patch Panel without adaptor plate and pigtail.
WPP-OW1-24FSPG652D10	24 Fibers WPP-OW1 Type Wall Mount Patch Panel With Duplex SC/PC SM Adapter and 1M Singlemode G652D SC/PC Pigtail.
WPP-OW2-48FLPG652D15	48 Fibers WPP-OW2 Type Wall Mount Patch Panel With Duplex LC/PC SM Adapter and 1.5M Singlemode G652D LC/PC Pigtail.
