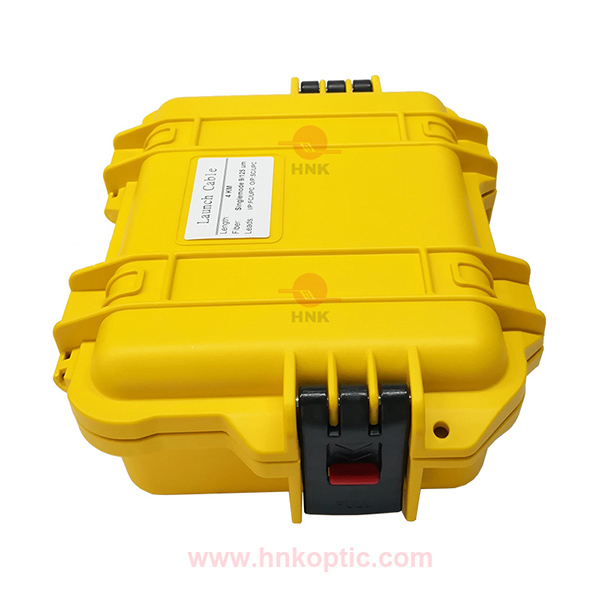

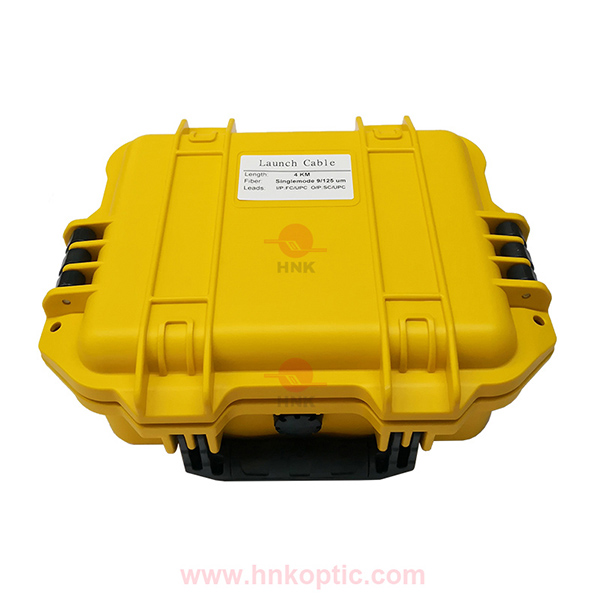

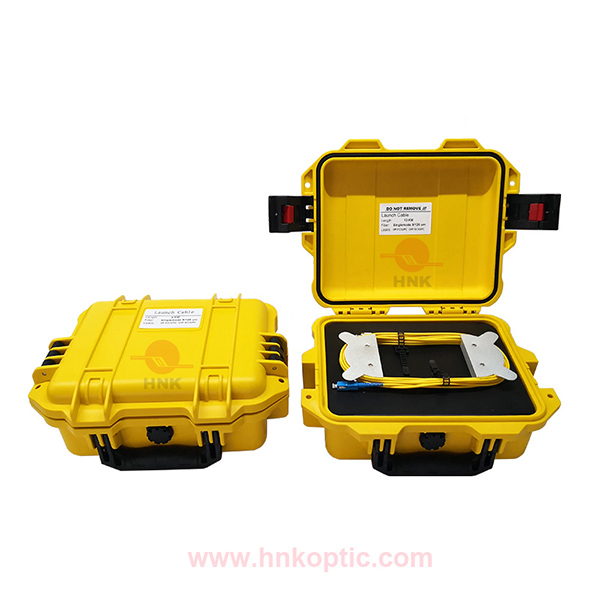

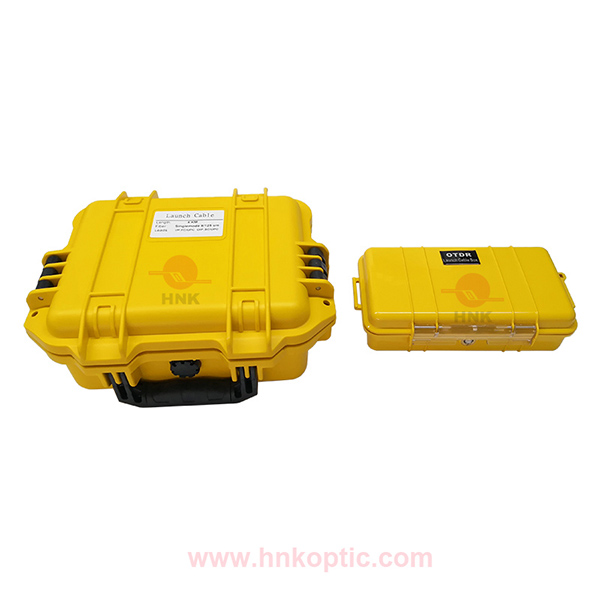

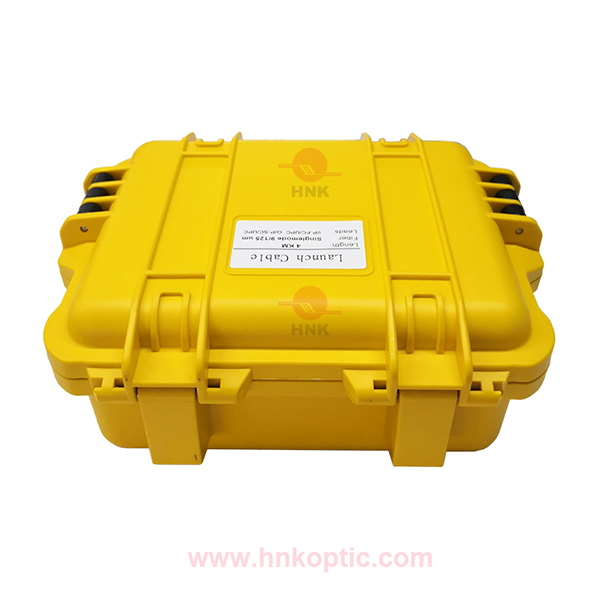

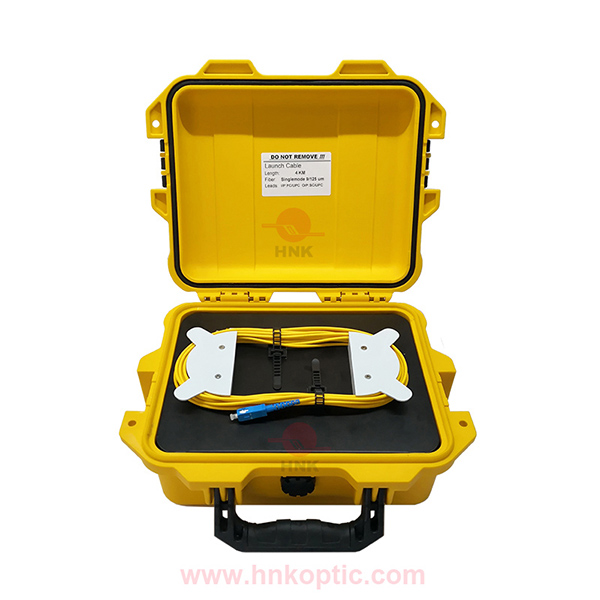

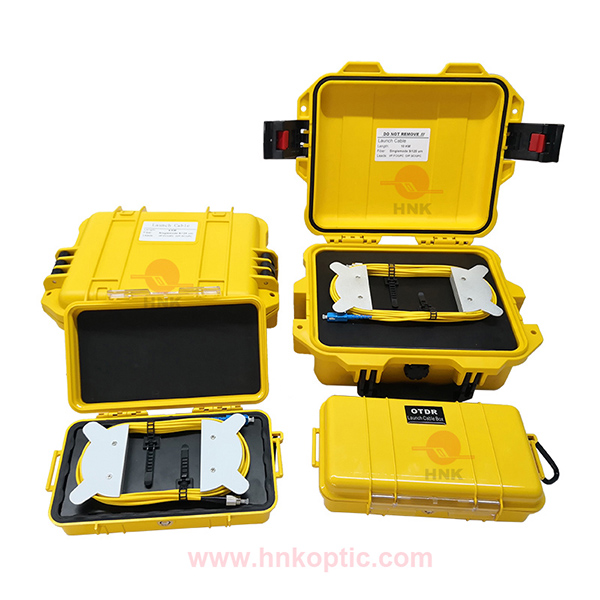

| 20KM Launch Cable Big Box | |||||||||
|
|||||||||
Complied with or exceeds Standard
. ITU-T G652.D, G656.A
. ITU-T G651.1 OM1 OM2 OM3 OM4
. IEC60793-2-10 type A1a.1/A1b OM1/OM2, type A1a.2 OM3, type A1a.3 OM4
. Telcordia (formerly Bellcore) GR-326-CORE
. RoHS Compliant Directive 2011/65/EU
Features
. Standard boxes along with custom configurations for OTDR applications.
. Compact and rugged packaging.
. Portable for field use.
. Prevents fiber damage and ensures accurate results.
. Compound latch for positive seal and easy opening with locking feature.
. Water and dust prove allowing the unit to be taken into almost any environment.
. Case can house up to 2,0000 meters of fiber.
Specifications
Material | SR Polypropylene | Color | Yellow |
Weight(kg) | 2.1kg (without fiber, connector) | Humidity | 0 to 95%, non-condensing |
Size (L x W x H) | 304 x248 x 120mm | Packaging | Rugged, hard-shell transit case |
Connector | SC, LC, ST, FC | Polish | PC, UPC, APC |
Fiber Types | G652D, G657A, OM1, OM2, OM3, OM4 | Fiber Length (m) | up to 20000 (max) |
Storage Temperature | -40°C to +85°C | Operating Temperature | -40°C to +85°C |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： BOPC-AA-BB-CDE(x1~3)
Ordering Guide
AA | BB | C | D | E |
Input connector Type | Output connector Type | Tail Length | Fiber Type | Fiber Length |
FP, SP, SA, LP | FP, SP, SA, LP | 01=1M 02=2M 03=3M 04=4M | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 G652D=9/125 G652D, G657A=9/125 G657A | 100=1000M 2000=20000M |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Ordering Sample
Part Number | Description |
BOPC-SP-SP-03G652D1000 | SC/PC-SC/PC Singlemode G652D 10KM OTDR Launch Cable Big Box with 3M Tails. |
|
