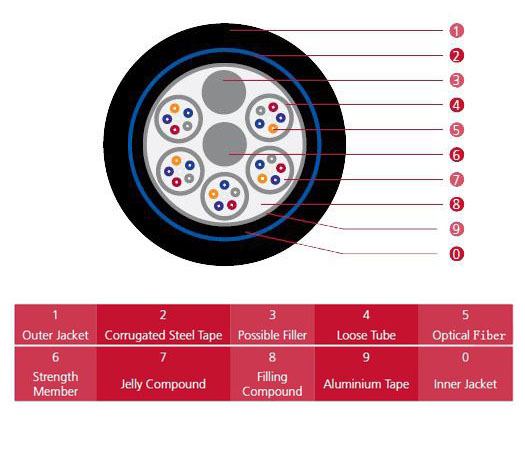

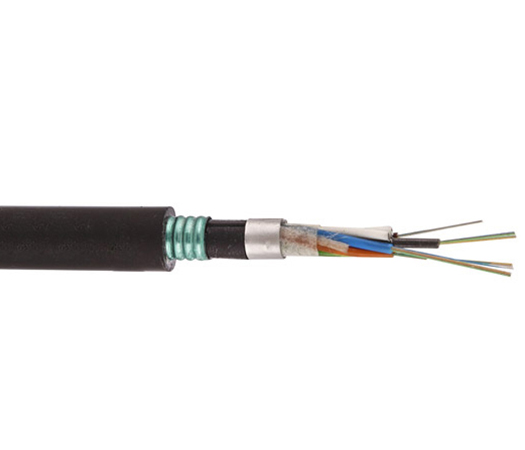

Metallic / Non metallic FRP strength members in the cable give it good tensile strength, water blocking jelly in the tube and tape over the tube give it excellent water and moisture resistance. Double sided PE corrugated steel armouring and PE outer sheath give this cable excellent tensile strength, mechanical, rodent, ultraviolet and environmental protection. They come in larger delivery length, so can also be used in long distance communication system, building interconnections, trunk lines, LAN, distribution networks.

Mechanical & Environmental Characteristics


Optical Characteristics
Of all the differences between multimode & singlemode fiber, the most fundamental differences are the size of the fiber’s core and the associated attenuation or loss and bandwidth of the fiber. The smaller the core diameter, the higher the fiber’s bandwidth and the lower the attenuation (loss in dB per kilometer). The fiber’s attenuation and bandwidth are also dependent on wavelength.

Singlemode was for high-speed long distance transmission and multimode (in either the 50 µm or 62.5 µm core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the data carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below.

ANSI/TIA/EIA-598-B Standard Fiber Color Code

Color Code


Ordering Information
Part Number： OC-XX-ABCDCL

Ordering Guide

Ordering Sample
