| New 1U & 2U Rack Mount Patch Panel with Telescopic Rails | |||||||||
|
|||||||||
Standards Compliance
. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Features
. Easy access with Telescopic rail pull-out system.
. Providing protective connections for optical fibers and distribution pigtails.
. Insulating fiber metal components from fiber-end shells and conveniently leading out grounding wires.
. Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
. 6-port or 12-port long adaptor plate, FC, SC, ST, LC connector are applied.

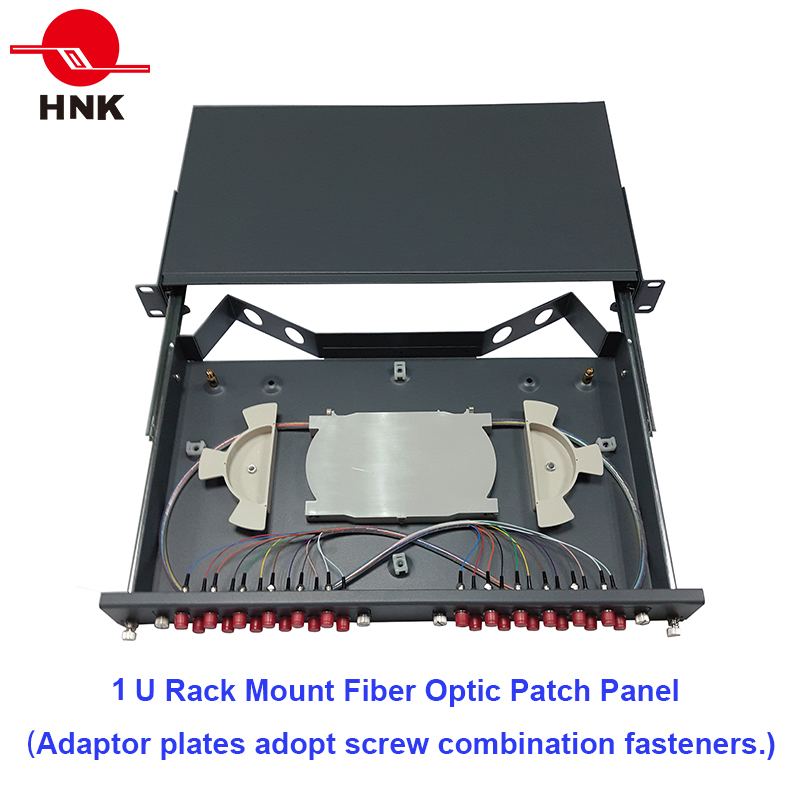

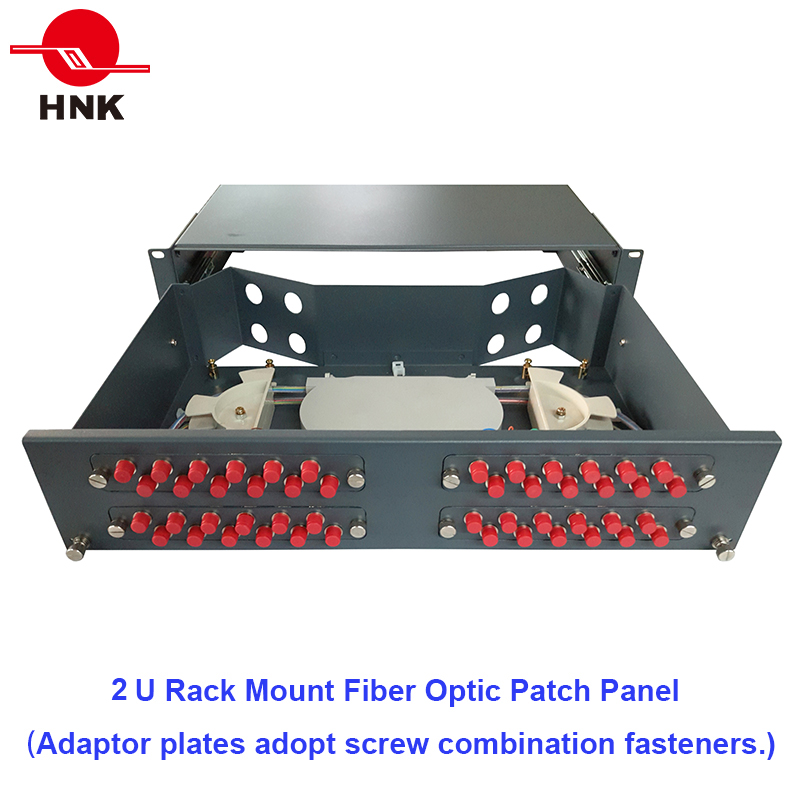

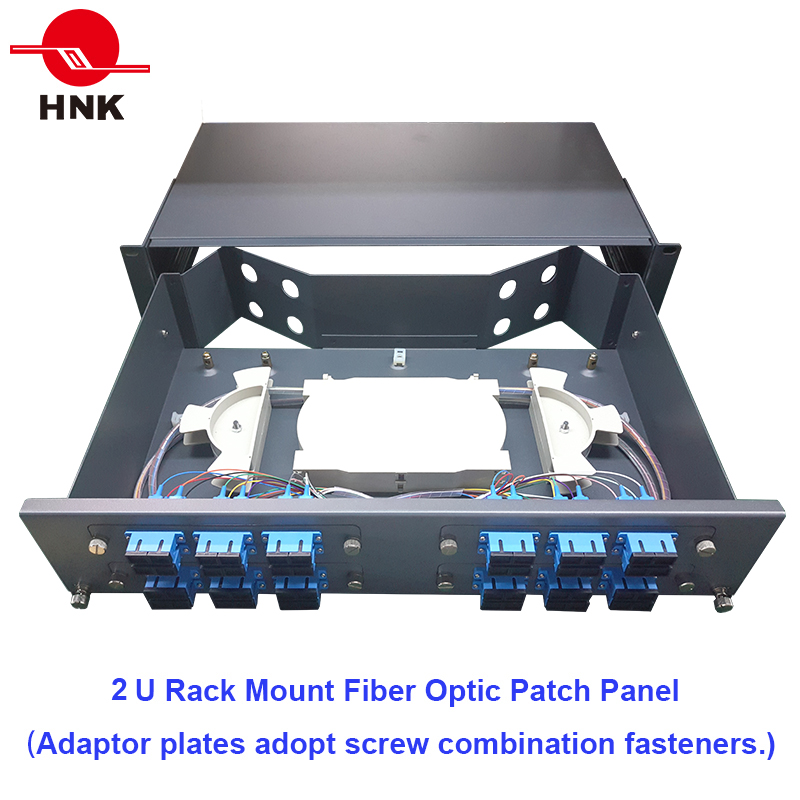

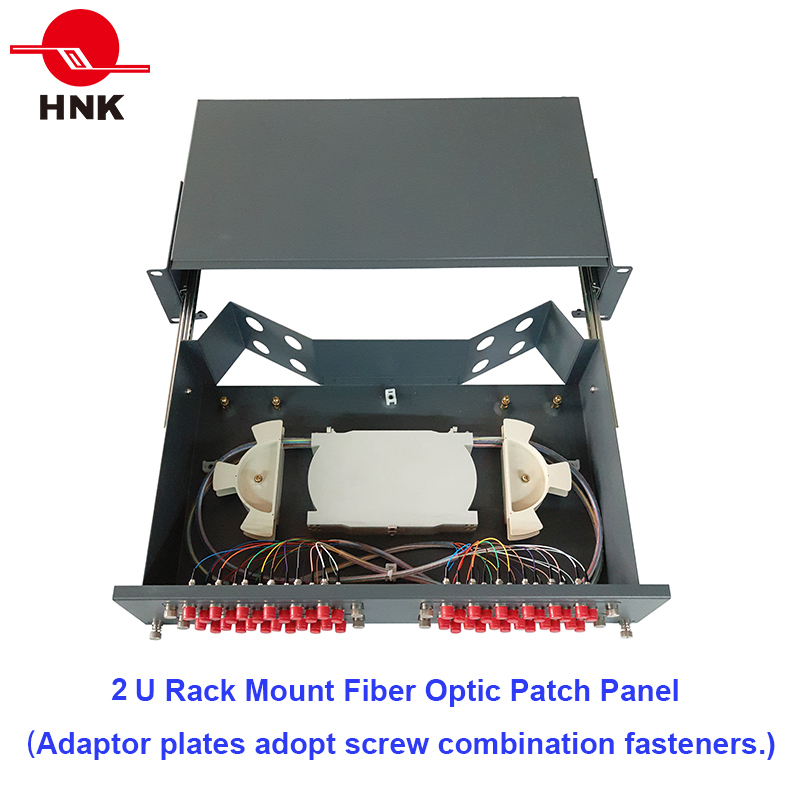

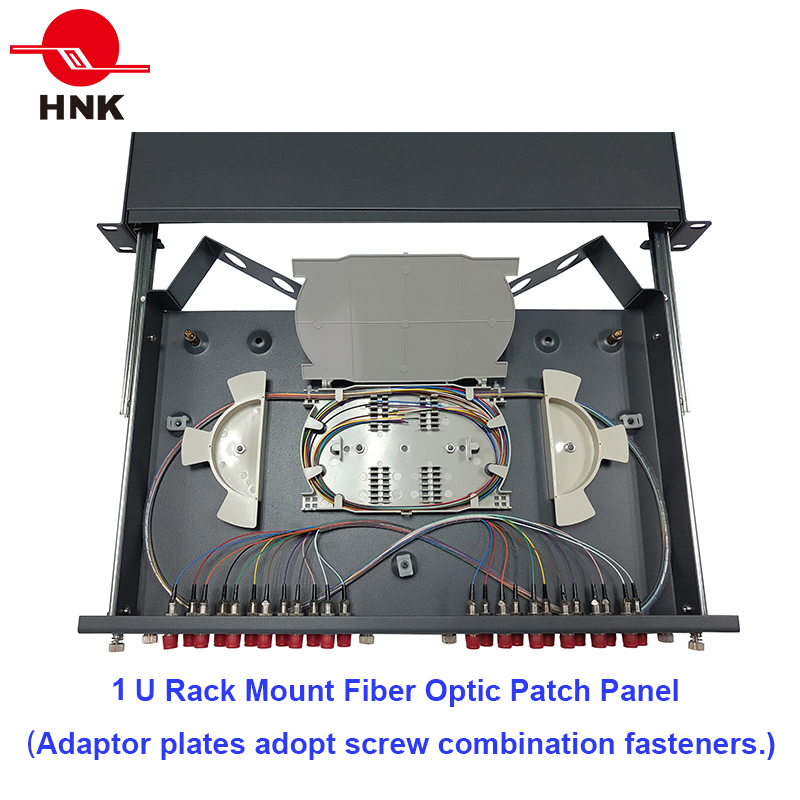

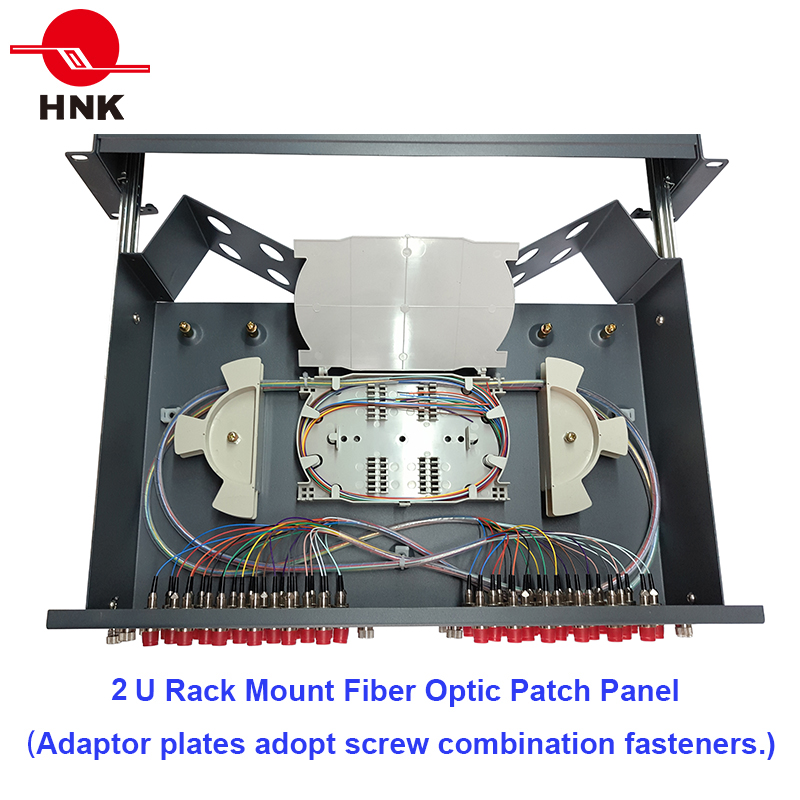

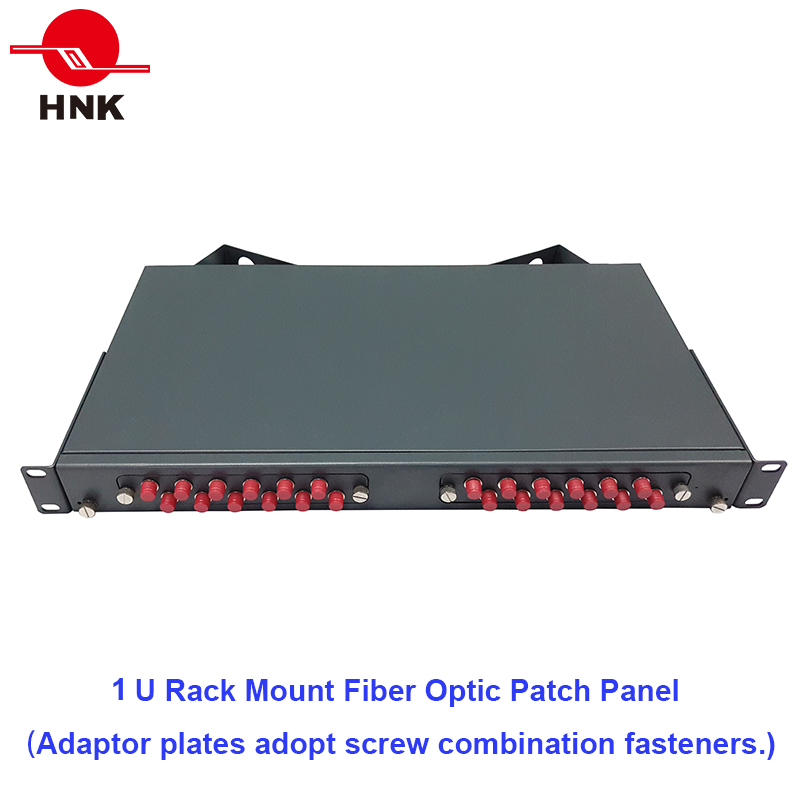

. Adaptor plate fixing assembly adopt screw combination fasteners, install more firmly.
Specifications
Patch Panel | Adaptor | ||
Size（H×W×D ）mm | 1U(H) x 19” (W) x 300mm(D) 2U(H) x 19” (W) x 300mm(D) | Multimode Insertion Loss | 0.2dB Maximum |
Material | 1.2mm Cold Rolled Steel | Singlemode Insertion Loss | 0.2dB Maximum |
Material Coating | Powder | Mating durability | >500 Mating Cycles |
Humidity | 0-90%, non-condensing | Multimode Adaptor Wavelength | 850 to 1300nm |
Operating Temperature | -10°C to 60°C | Singlemode Adaptor Wavelength | 1310 to 1550nm |
Storage Temperature | -40°C to 85°C | ROHS Compliant | Yes |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DEF)
Ordering Guide
XX | Patch Panel Type | WPP=Wall Mount Patch Panel, RPP=Rack Mount Patch Panel |
AA | Product ID | APS1=1U, APS2=2U, |
BB | Port Capacity | 12=12 Ports, 18=18 Ports, 24=24 Ports, 36=36 Ports |
C | Configuration | E=only patch pane, L=With Adaptor Panels, F=With Adaptor Panels and Pigtails |
D | Connector Type | FP, SP, SA, LP |
E | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
F | Fiber Length | 05=0.5M, 10=1M, 20=2M |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Ordering Sample
Part Number | Description |
RPP-APS1-24FSPG652D10 | 1U 24 Fibers RPP-APS Type Rack Mount Patch Panel With Duplex SC/PC SM Adaptor And 1M Singlemode G652D SC/PC Pigtail. |
|
