Standards Compliance
.UL-V0 flammability rating
.TIA/EIA-568-C.3 (Optical Fiber Cabling Components Standard)
.ANSI/TIA/EIA 455B (Standard Test Procedure for Standard Fiber Optic Fibers, Cables, Connecting & Terminating Devices, and Other Components)
.IPC-8497-1 (Cleaning Methods & Contamination Assessment for Optical Assembly)
.Compliant with IEC 61754-13 & CECC 86 115-801 standards.
.RoHS, REACH SvHC compliant
Features
.High quality ceramic components and Material
.End-face geometry requirement complies to Telcordia GR-326-CORE
.100% tested on optical performance (Insertion Loss & Return Loss)
.Simplex, duplex and higher core densities
.900 micron, 2mm, 3mm cable applications

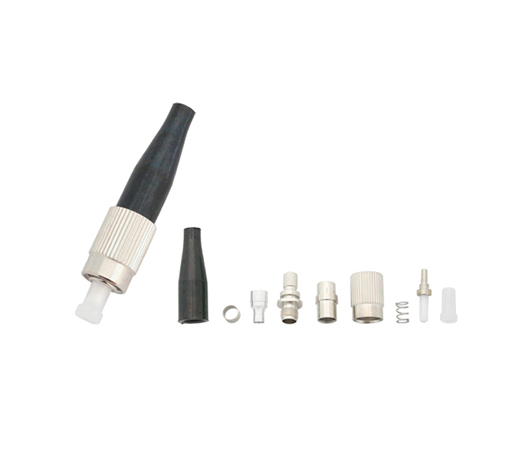

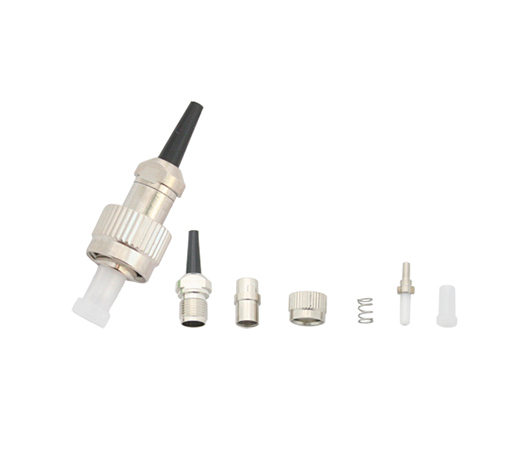

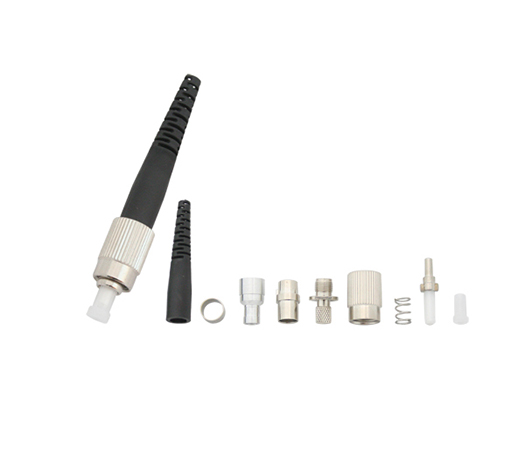

Design & Materials
| Connector Ferrule |
Ceramic |
| Alignment Sleeve |
Ceramic |
| Connector Body |
UL 94V-0 rated Thermoplastic to meet standard flammability ratings |
| Crimp Insert/Crimp Tube |
Nickel-Plated Brass/Thermoplastic Elastomer Polymer |
| Dust Cap |
Nylon or PVC |
| Strain Relief Boot |
Flame retardant (UL-Rated 94-V0) polymer |
| Connector Style |
SC, FC, ST, LC, MTRJ, |
| Polish |
PC, UPC, APC |
| Capillary Diameter Tolerance |
126 ± 0.5μm(Single Mode), 127 ± 0.5μm (Multimode) |
| Ferrule Diameter |
2.5 ± 0.001mm(FC,SC,ST),1.25± 0.001mm (LC) |
Environmental & Mechanical Data
| Operating Temperature |
-40 to +85º C |
| Storage Temperature |
-40 to +85º C |
| Temperature Cycling (61300-2-18) |
-40 to +75º C, 40 cycles=0.2dB change |
| High Temperature (61300-2-18) |
70˚c for 96Hrs, <0.4dB change |
| Damp Heat(61300-2-19) |
40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair (61300-2-1) |
10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability (61300-2-2) |
500 Mating Cycles, clean every 25, <0.2dB change |
Optical Performance Data
| Item |
Single mode |
Multimode |
| PC |
UPC |
APC |
62.5/125 |
50/125 |
50/125 10G |
Insert Loss/connector
(single Fiber) |
0.3dB Max. (0.2dB typ.) |
0.3dB Max. (0.2dB typ.) |
| Return Loss |
≥45 dB |
≥50 dB |
≥60 dB |
N.A |
| Insert Loss/MTRJ Connector |
0.5dB Max. (0.45dB typ.) |
0.5dB Max. (0.45dB typ.) |
| Pull Strength |
≥98N |
≥98N |
Specifications
| Ferrule Diameter |
2.5mm |
| Coupling Type |
Screw thread fitting |

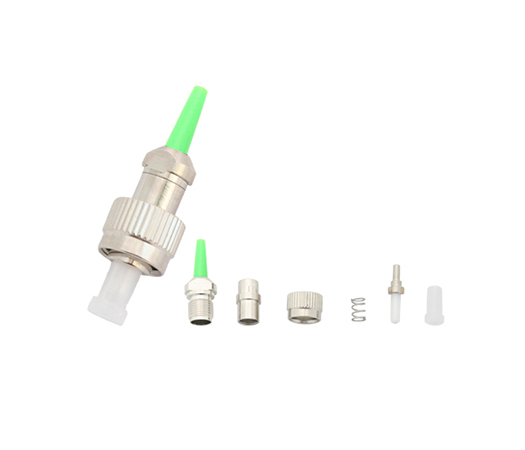

| 2mm or 3mm Boot Color |
Black/Green |
| 900μm Boot Color |
Black/Green |
| Shell Connector versions available for |
2mm, 3mm Cable, 900μm Buffered Fiber |
| Shell Tensile Strength Cable retention |
>50N for 2 mm boot versions |
| >98N for 3mm & 0.9mm |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： SCN-
AA-
BB-
CD
Ordering Guide
| AA |
BB |
C |
D |
| Connector Type |
Connector Boots diameter |
Fiber count |
Mode |
| FP,SP,SA,LP |
20=2.0mm
30=3.0mm
09=0.9mm |
SX=Simplex
DX=Duplex |
SM=Singlemode PC
MM=Multimode PC
APC=Singlemode APC |
Connector Type Code
| FP |
FC/PC, FC/UPC |
FA |
FC/APC |
MU |
MU |
| SP |
SC/PC, SC/UPC |
SA |
SC/APC |
MT |
MTRJ |
| TP |
ST/PC, ST/UPC |
TA |
ST/APC |
DN |
DIN |
| LP |
LC/PC, LC/UPC |
LA |
LC/APC |
E2 |
E2000 |
Ordering Sample
| Part Number |
Description |
| SCN-FP30SXMM |
FC/PC 3.0mm Simplex Multimode Fiber Optic Connector. |
| SCN-FA09SXAPC |
FC/APC 0.9mm Simplex Singlemode Fiber Optic Connector. |
