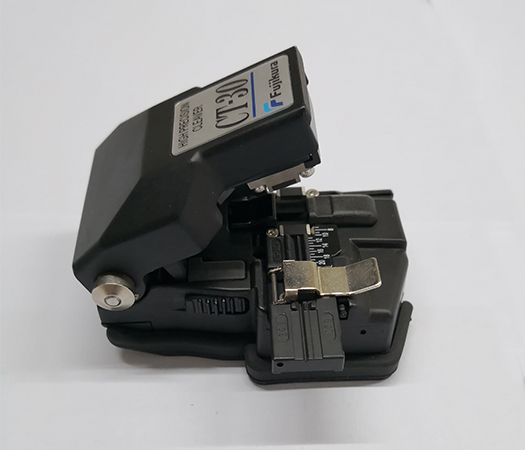

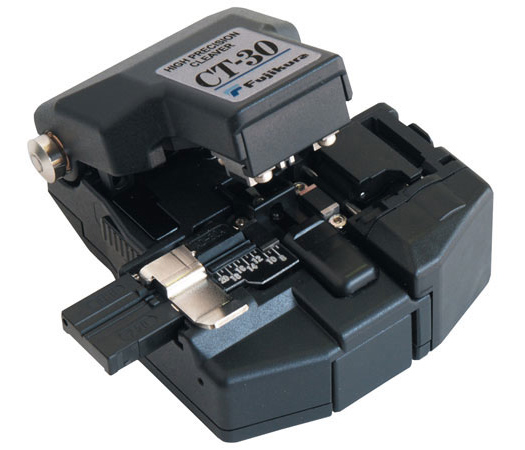

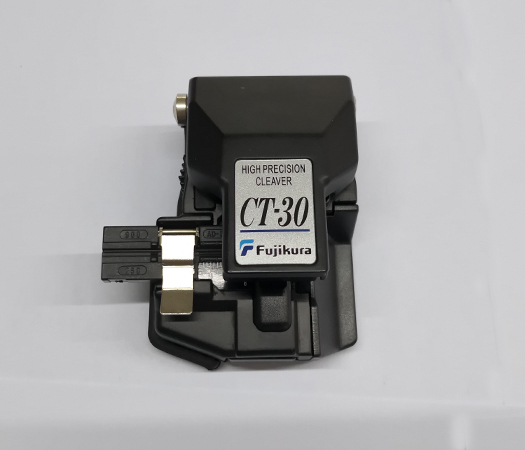

| Fujikura CT-30 Series Fiber Cleaver | |||||||||
|
|||||||||
2011/65/EU(ROHS2.0)
Features
. New High Precision Fibber Cleaver CT-30/New Original Fiber Optic Cleaver.
. Used for Single Fiber Cleaving.
. Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency.
. Prevents Double Scoring of the Fibers.
. Has Superior Blade Height and Rotational Adjustment.
. Available with automatic fiber scrap collection.
Specifications
Applicable fibers | Silica optical fiber |
Bare fiber diameter | 125mm |
Cleaving angle | 0.5 degrees with single fiber |
Blade life | 48,000 fibers (1,000 fibers x 3 height x 16 positions) |
Blade positions | 3 height and 16 rotating positions |
Dimensions | 102W x 82D x 46H (mm) with FC-02 and FDB-03 |
Weight | 210g with FC-02 and FDB-03 |
Variation
Model | Cladding diameter | Fiber count | Cleaving length | Fiber placing |
CT-30 | 125mm | Up to 12 | 10mm | Fiber holder |
CT-30A | 125mm | Single | 6 to 20mm | Fiber plate (AD-30A) |
CT-30B | 125mm | Single | 16mm | Fiber plate (AD-30B) |
|
