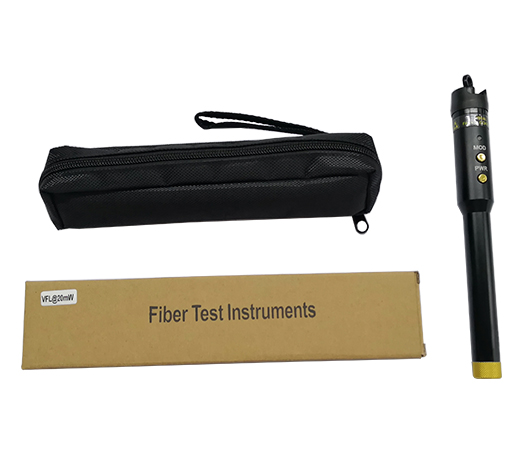

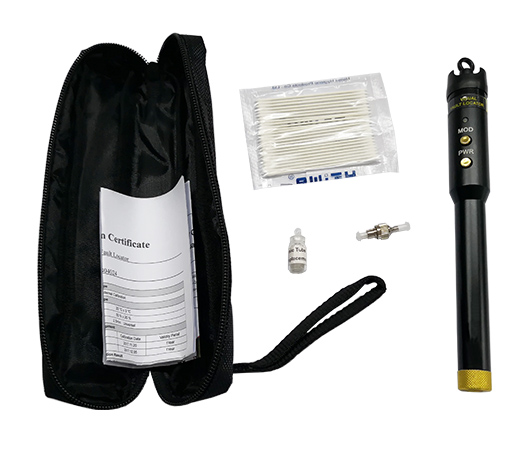

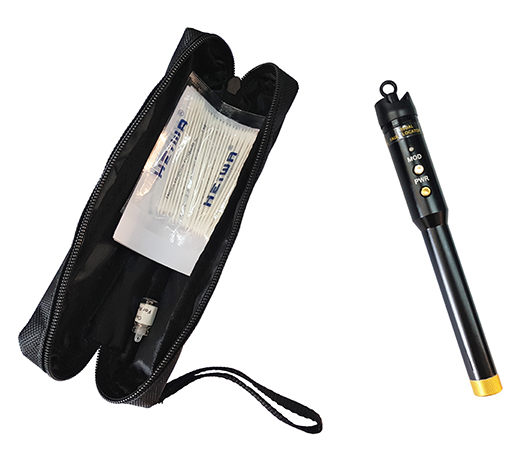

| Fiber Optic Visual Fault Locator | |||||||||
|
|||||||||
Standards Compliance
. RoHS：Free of hazardous substances according to RoHS 2002/95/EG
. IEC 60825-1-2011：Safety of laser products - Part 1: Equipment classification and requirements
Features

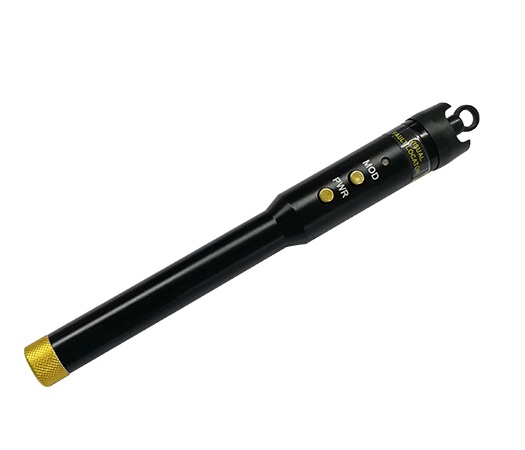

. Metal case, Rugged and durable
. Pen pattern design, convenient for use and carry.
. Integrated case, to avoid the case intermediate broken
. Low battery indication, to avoid leakage and wrong judgment
. ESD protection design, Protect the LD effectively

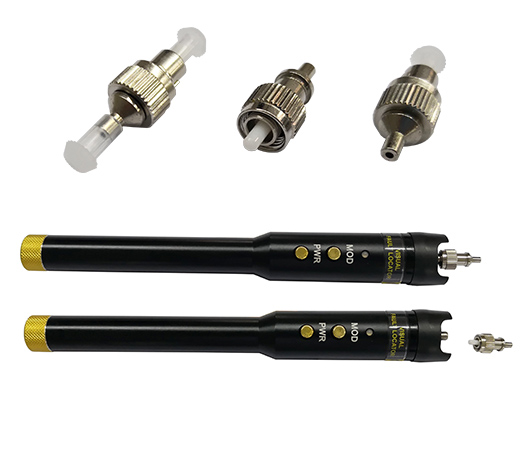

. FC, SC, ST general 2.5mm interface
. 2.5mm male to 1.25mm female converter optional
. Long inspection distance, steady power output;
. Long battery life, up to 60 hours＠1mW

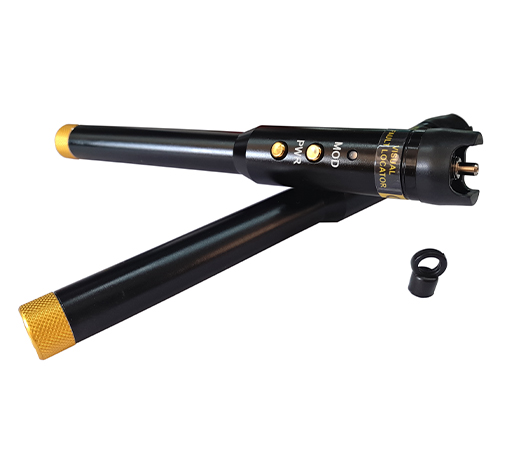

. Re-changeable ceramic tube, to avoid returning to manufacturer for this small fault
Specifications
Type | VFL-25 |
Central Wavelength | 650nm±10nm (635nm can be required on request) |
Emitter Type | FP-LD |
Output Power (mW) | 1 or 10, up to 50 |
Optical Connector | 2.5mm universal connector. (For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer’s requests) |
Operating Model | Both CW and Pulse available |
Pulse Frequency | 2~3Hz |
Power Supply | 2 AA alkaline batteries |
Battery Operating Time | 650nm@1mw ≥65hours, 650nm@10mw≥15hours Test with Panasonic LR6 AA ALKALINE battery |
Operating Temperature (℃) | -10~+45 |
Storage Temperature(℃) | -40~+70 |
Dimension (mm) | Φ15x180 |
Weight(g) | 120 (Without battery) |
Ordering Information
| Part Number | Description |
| VFL-25-XX | VFL Pocket 650 nm, 2.5 mm, Pulsed & CW, XX-Output Power. |
|
