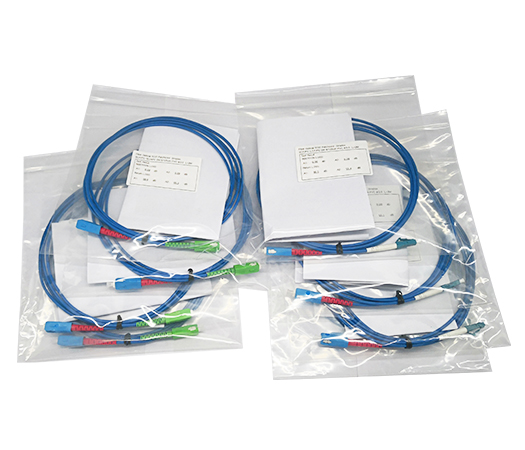

| Test Standard Fiber Optic Patch Cord (Pass 3D) | |||||||||
|
|||||||||
Standards Compliance.
. Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
. Cable flame resistant rate: OFNR or IEC60332-3 standard
Features
. 100% tested on optical performance (Insertion Loss & Return Loss).
. 100% 3D test past, more than IEC standard.
. High concentricity wear-resistant Ceramic Ferrule.
. All patch cords are extruded from high quality Corning glass and DuPont yarn.
. All connectors are polished by automated machinery to ensure consistent performance.

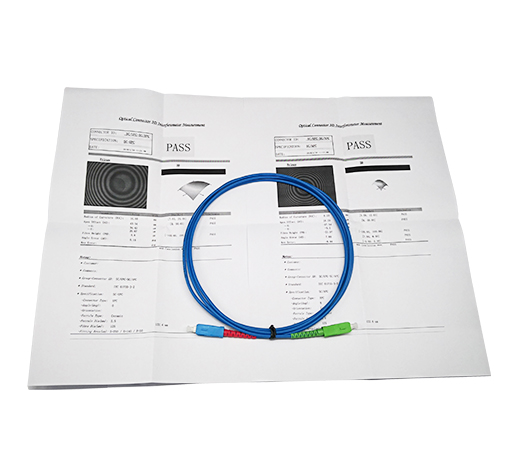

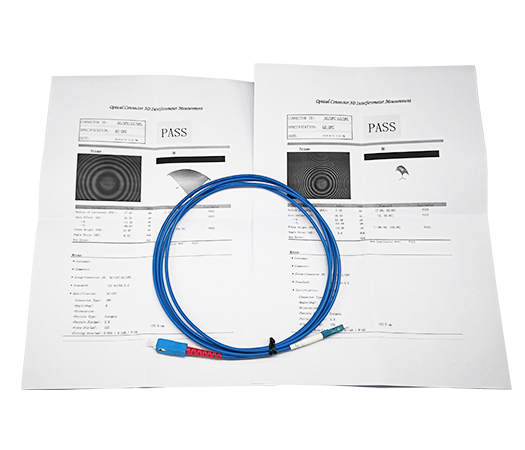

. The surface of the connector in 3D images and generate the data and report automatically.
3D Interferometer Measurement Standard
Polish | UPC | APC | ||
Connector Type | SC, FC, ST | LC | SC, FC | LC |
Mode | SM/MM | SM/MM | SM | SM |
Angle Error (°) | 0±0.2 | 8±0.2 | ||
Radius of Curvature (mm) | 10-25 | 7-20 | 5-12 | |
Apex Offset (μm) | ≤50 | ≤30 | ||
Fiber Undercut X(μm) | ≤50 | |||
Fiber Protrusion Y(μm) | ≤50 | |||
Fiber Height (nm) | ±50 | |||
Durability | 500 cycles (0.1 dB max increase), 1000 mate/demate cycles | |||
Connector Data
Connector Type | SC/FC/ST | LC |
Connector Ferrule | Ceramic | |
Ferrule Diameter (mm) | 2.4990±0.0003 | 1.2490±0.0003 |
Concentricity Error (μm) | ＜0.3 | |
Angular Alignment Error (°) | 0.2 | |
Operating Temperature | -40°C to +85°C | |
Optical Performance Data
Connector Type | FC、SC、LC、ST | ||
Mode | SM | MM | |
Polish | UPC | APC | UPC |
Insert Loss (dB) | ≤0.1 | ≤0.15 | ≤0.1 |
Return Loss (dB) | ≥50 | ≥60 | ≥35 |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： TSPC-AA-BB-CDEFGCL
Ordering Guide
AA | BB | C | D | E | F | G | CL |
Connector Type | Connector Type | Fiber Type | Fiber Count | Boot fit for cable diameter | Length | Jacket Materia | Jacket Color(CL) |
FP, SP, SA, LP | FP, SP, SA, LP | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D | SX=Simplex DX=Duplex | 20=2.0mm 30=3.0mm | 015=1.5M 020=2M | 1=PVC 2=LSZH | As noted in Color code chart |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Color Code
Note: Yellow Jacket for SM, Orange Jacket for OM1~OM2, Aqua Jacket for OM3 and Purple Jacket for OM4.
(other colors may be available upon request).
Ordering Sample
Part Number | Description |
TSPC-SP-LA-G652DSX300301BL | SC/UPC-LC/APC Test Standard Fiber Optic Patch Cord, Corning Singlemode G652D, Simplex, 3.0mm, PVC, Blue, 3M. |
|
