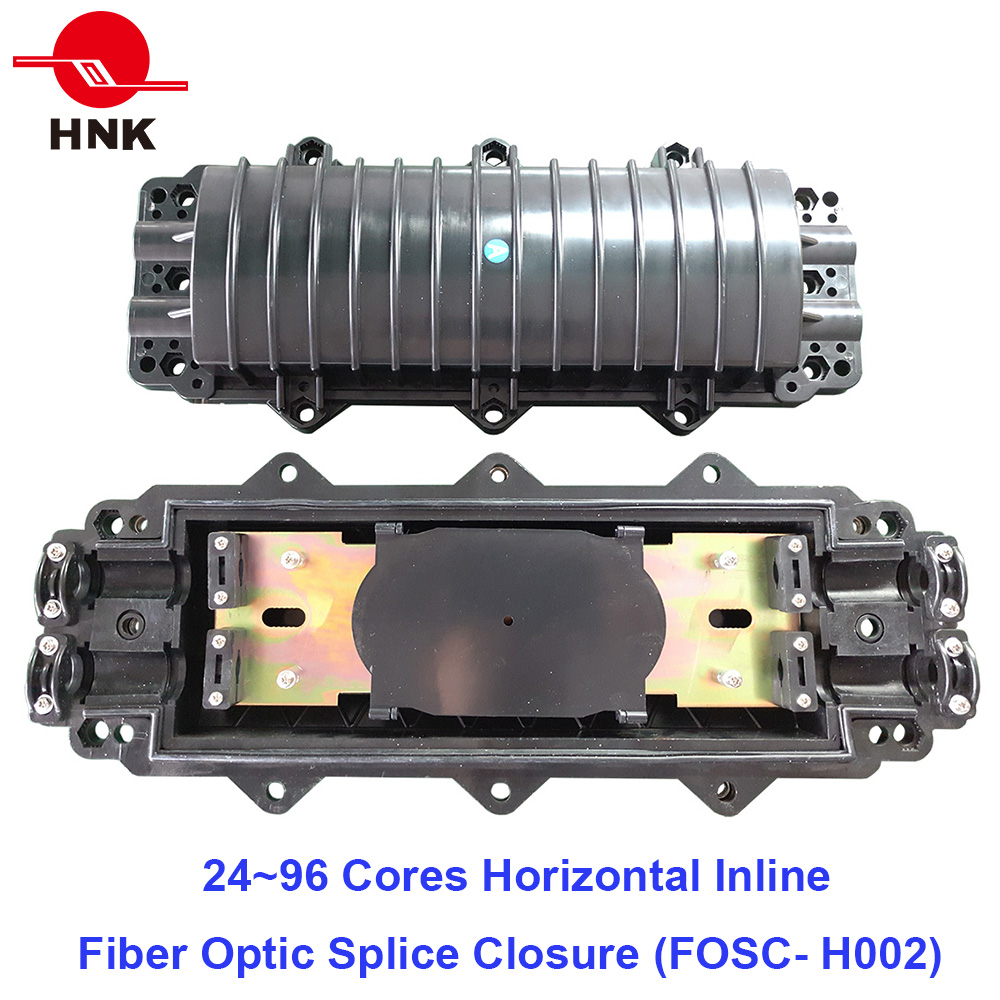

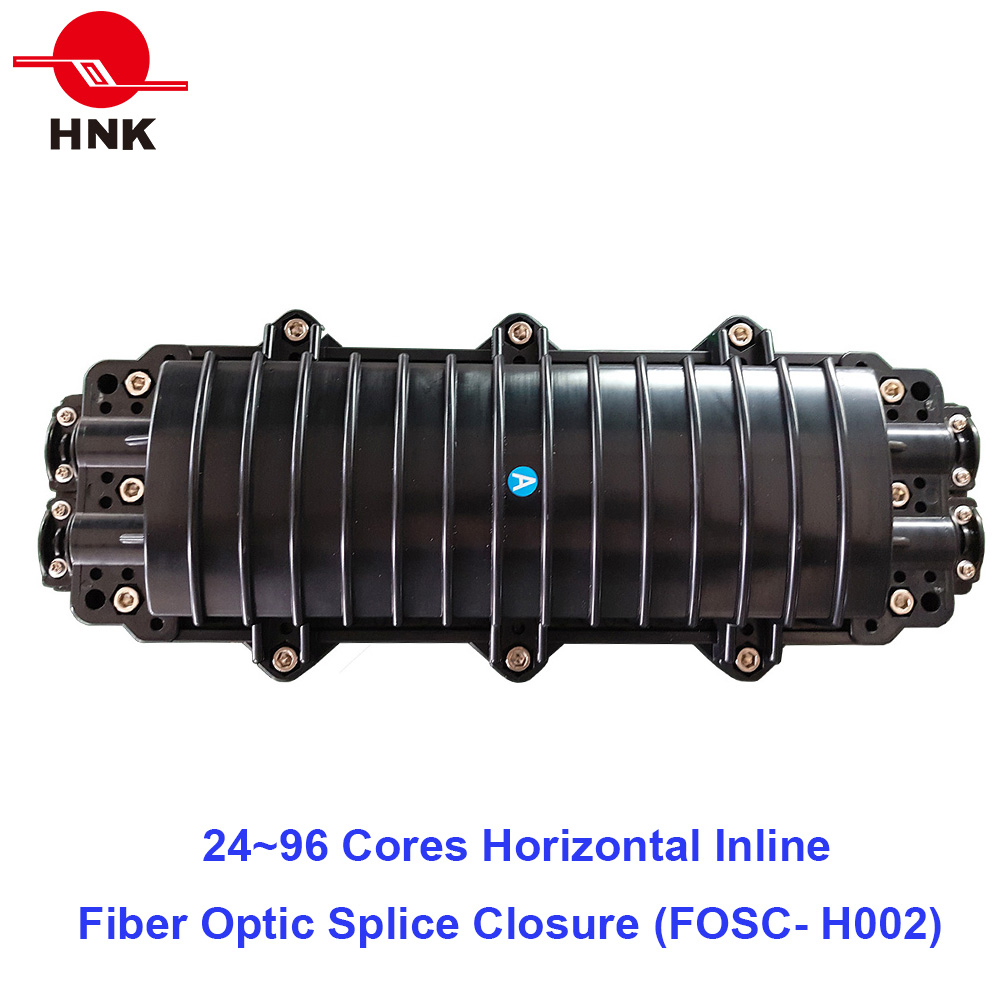

| 24~ 96 Cores Horizontal Inline Fiber Optic Splice Closure | |||||||||
|
|||||||||
. YD/T814.1-2004,
. YD/T814.2-2005
. ITU L.13-2003,
. IEC1073-1：1994
Features
▪ To adopt high-quality ABS make the closure has longer life time.
▪ The closure adopts horizontal mechanical sealing structure and filled with silicone rubber insulation tape.
▪ The external component and fastening piece are all made of the high-quality stainless steel.
▪ The sealing structure keep good sealing performance after re-entry and re-using.
▪ The closure is spacious enough for winding and storing fibers.

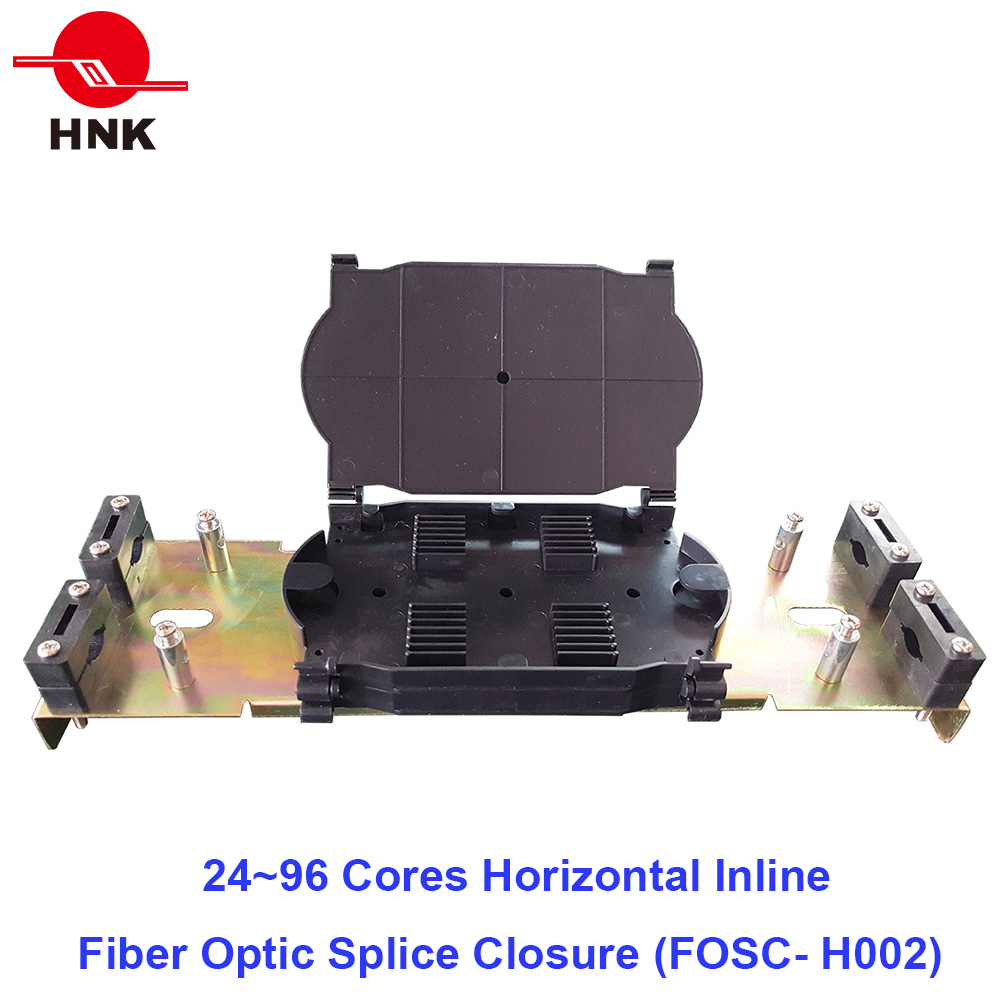

▪ Splice Trays are easy to insert and remove, can accommodate 4 splice trays (up to 96 cores).
▪ It could save the installation time and improve work efficiently
Specifications
Working Temperature | -25～+60°C | Storage Temperature | -40～+70°C |
Humidity | 93%(+30°C) | Air Pressure | 70KPa～106KPa |
Size (L×W×H) mm | 460*180*110 | Weight (kg) | 3 |
Color | Black | Material | ABS (ROHS standard) |
Max. Capacity (Per Tray) | 24 Fibers | Max. Capacity of Splice Trays | 4 |
Max. Capacity (Cores) | 96 | Cables Entry & Exit | 4 Ports |
Suitable for Cable Diameter | Φ7-Φ18mm | Curvature Radius (mm) | ≥30 |
Protective Level | IP65 | Sealing Method | silicone rubber sealing ring and insulation tape |
|
