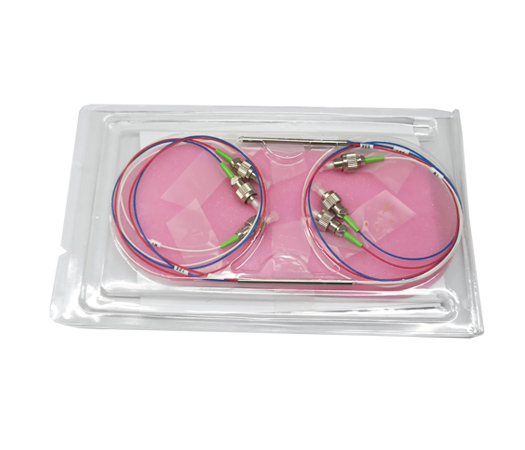

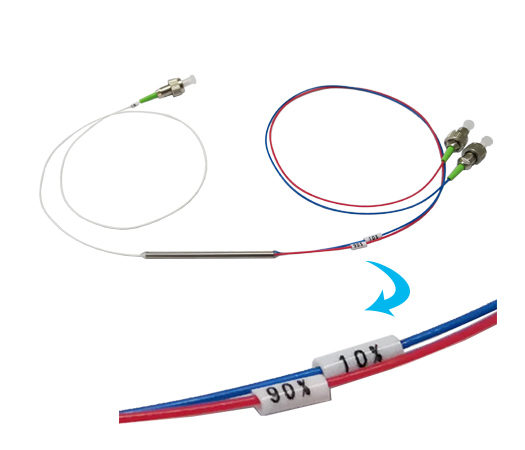

| Steel Tube Type FBT Splitter | |||||||||
|
|||||||||
Standard Compliance
▪ Telcordia GR-1221-CORE-1999 & GR-1209-CORE-2001
▪ TIA/EIA-568B.3 Fiber Optic Cabling Components Standard
▪ IEE802.3z Standards for Fiber Optic Cabling
▪ RoHS Certified for European Market Requirements
Features & Benefits
• Supports industry standard SC, LC, FC and ST singlemode and multimode connectors
• 100% performance tested for insertion loss, return loss and final mechanical inspect
• Virtually any combination of split ratios and number of components
• highly stable for multiport optical signal splitting with low insertion loss
• Compliant to Telcordia GR-1221 and GR-1209

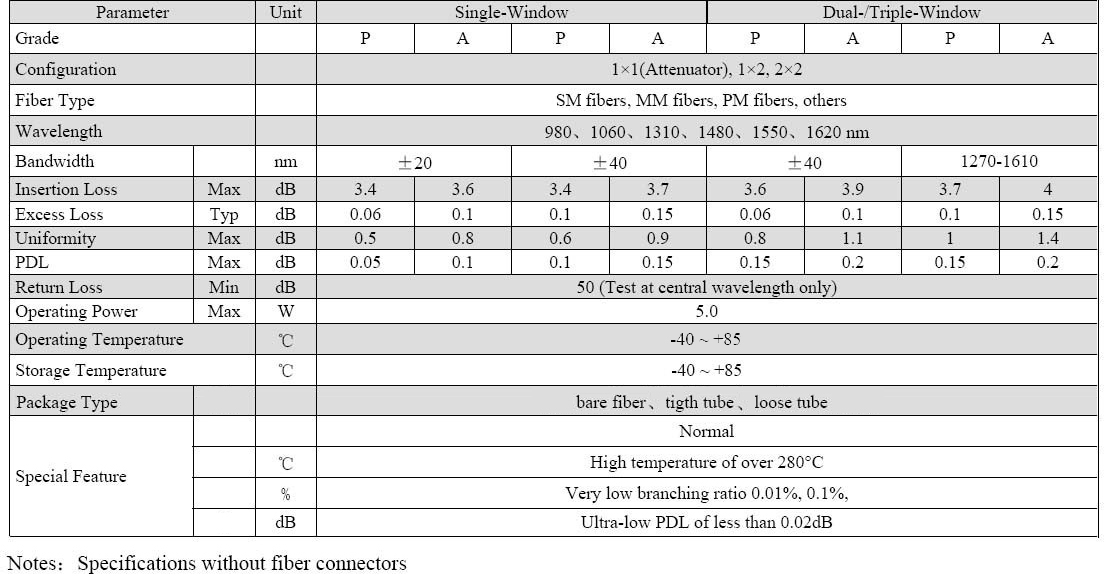

FBT Specifications

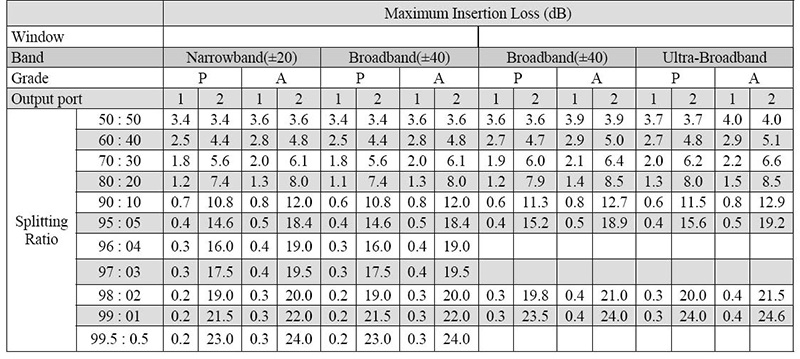

Splitting Ratio & Insertion Loss Conversion Table
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： FBT-ABC-DEFG
Ordering Guide
A | Configuration | 0=1x1(Attenuator), 1=1x2, 2=2x2. |
B | Wavelength(nm) | 1=808, 2=980, 3=1310, 4=1490, 5=1550, 6=850, 7=1310&1490, 8=1310&1550, 9=1490&1550, 0=1310&1490&1550, X=Customize. |
C | Split Ratio | 01=1/99, 02=2/98, 03=3/97, … 49=49/51, 50=50/50, X=Customize. |
D | Package | 0=None, 1=φ3x54 mm, 2=φ4x64 mm, 3=φ3x60 mm, 4=φ3x40 mm, 5=φ3x45 mm, 6=10x20x90 mm, 7=80x100x10 mm, X=Customize. (Steel Tube Package Type: 1~5, Boxed Package Type: 6~7.) |
E | Pigtail | 0=250um Bare Fiber, 1=0.9mm Tight Tube, 2=2.0mm Loose Tube, 3=3.0mm Loose Tube, X=Customize. |
F | Fiber Length(M) | 1=0.5M, 2=1.0M, 3=1.5M, 4=2.0M, 5=2.5M, 6=3.0M, A=1.25M, B=1.75M, C=2.25M, X= Customize. |
G | Fiber Connector type | FP, SP, SA, LP (As noted in Connector type code chart) |
Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC | MU | MU | DN | DIN |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC | MT | MTRJ | E2 | E2000 |
Ordering Sample
Part Number | Description |
FBT-13401-42SP | 1*2 FBT splitter, 1310nm wavelength, 40/60 split ratio, φ3x54 mm steel tube type package, 0.9mm tight tube pigtail, length 1.0M, and connector SC/PC. |
|
