　 4U Rack Mount Patch Panel
Model:RPP-HP
4U Fiber Optic Panels are available with various designs. The 19” Rack Mountable Panels come in 4U in height. These panels are suitable for direct termination and/or splicing of fiber optic cables. Accessories include splice trays, splicing tubes, cable gland and wire management. The 4U Rack Mount Panel can terminate up to 144 fibers for ST,SC or FC connectors or 288 fibers with LC connectors.

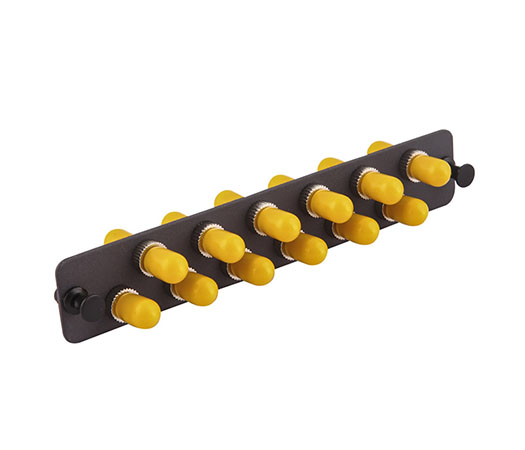

  • ST-1
    ST-1

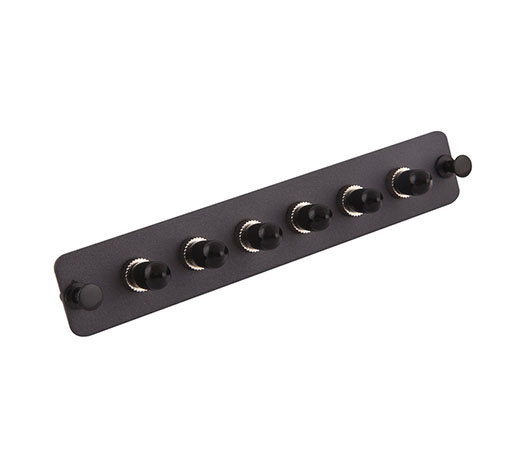

  • ST-2
    ST-2


Standards Compliance

. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )

Features
. Providing protective connections for optical fibers and distribution pigtails.
. Insulating fiber metal components from fiber-end shells and conveniently leading out grounding wires.
. Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
. Multiple installation methods are available, e.g. rack-mounting in the trough
. can be loaded with up to 12 long adapter plates with 6-port or 12-port , FC, SC, ST, LC connector are applied.

Specifications

Patch PanelAdaptor
Size（H×W×D ）mm4U(H) x 19”(W) x 350mm(D)Multimode Insertion Loss 0.2dB Maximum
Material 1.2mm Cold Rolled Steel Singlemode Insertion Loss 0.2dB Maximum
Material CoatingPowderMating durability>500 Mating Cycles
Humidity0-90%, non-condensingMultimode Adaptor Wavelength 850 to 1300nm
Operating Temperature-10°C to 60°CSinglemode Adaptor Wavelength 1310 to 1550nm
Storage Temperature-40°C to 85°CROHS Compliant Yes



Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DEF)

Ordering Guide

XXpatch panel TypeWPP=wall mount patch panel, RPP=rack mount patch panel
AAProduct IDHP
BBPort Capacity012=12 Ports, 018=18 Ports, 024=24 Ports, 036=36 Ports
CconfigurationE=only patch pane, L=With Adapter Panels,
F=With Adapter Panels and Pigtails
DConnector TypeFP,SP,SA,LP
EFiber TypeOM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3,
OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A
FFiber Length05=0.5M, 10=1M, 20=2M


Connector Type Code

CodeConnector CodeConnector CodeConnector CodeConnector
FPFC/PCFAFC/APCLPLC/PCLALC/APC
SPSC/PCSASC/APCTPST/PCTAST/APC
MUMUDNDINMTMTRJE2E2000


Ordering Sample

Part NumberDescription
RPP-HP-E4U RPP-HP Type Rack Mount Patch Panel without adaptor plate and pigtail.
RPP-HP-72FSPG652D154U 72 Fibers RPP-HP Type Rack Mount Patch Panel With Simplex
SC/PC SM Adapter and 1.5M Singlemode G652D SC/PC Pigtail.
