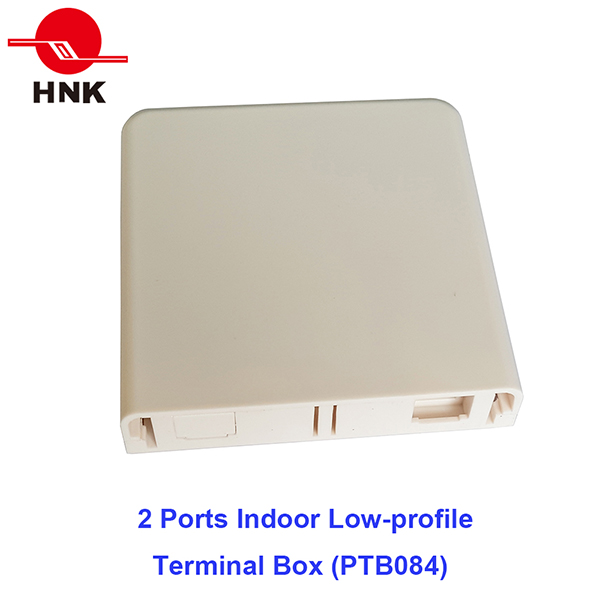

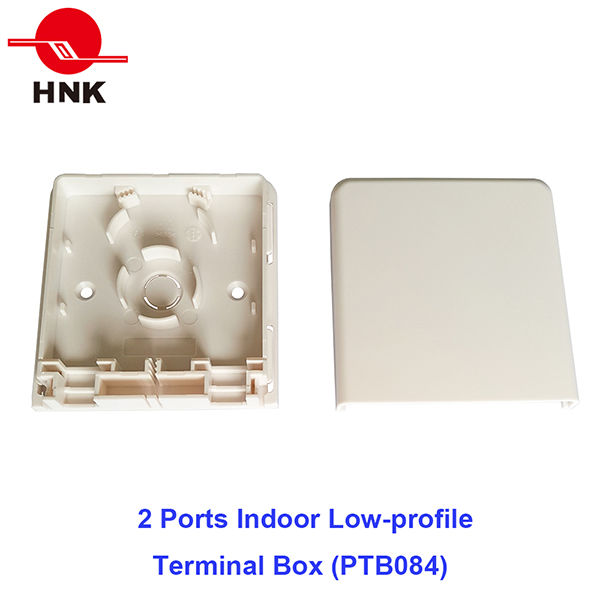

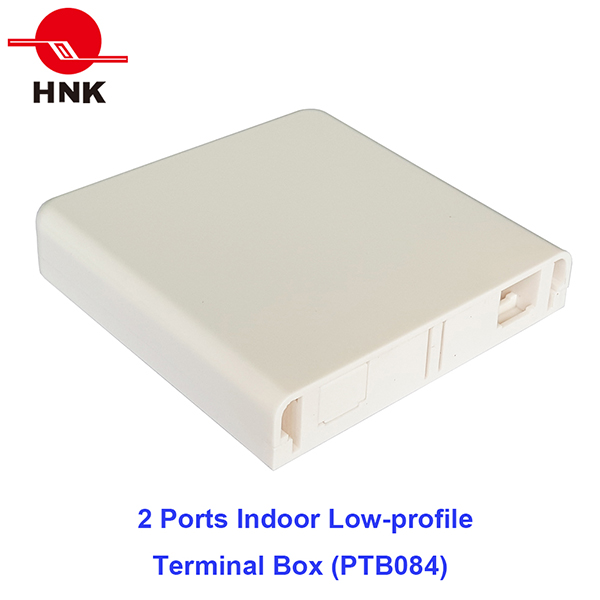

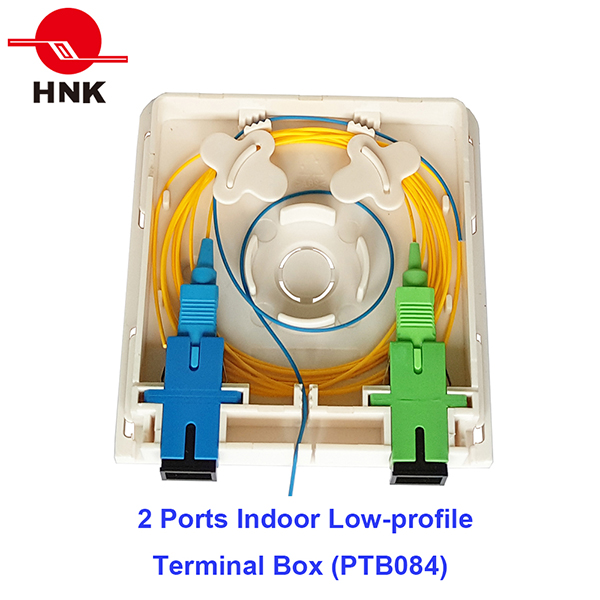

| 2 Ports Indoor Low-profile Termination Box (PTB084) | |||||||||
|
|||||||||
Standards Compliance
. TIA/EIA 568.C, Optical Fiber Cabling Components Standard
. IEC61754, Fiber optic connector interfaces Standard
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Product Features
▪ Small size, light weight, pleasant appearance.
▪ Desktop or Wall mounted, white color, graceful style and good adaptability to environment.
▪ Made of high quality ABS, anti-collision, flame retardant, resistance to impact.
All the materials complied with ROHS standard.
▪ Unique slide off design makes operation easy.
▪ Applies to the inlet of drop cable or pigtail.
▪ Fan-like design increases the storage space of the optical fiber and manages it effectively.
▪ strengthen seat design makes drop cable easy for fusion splicing.
Specifications
Working Temperature | -25～+60°C | Storage Temperature | -40～+70°C |
Humidity | 93%(+30°C) | Air Pressure | 70KPa～106KPa |
Size (W×H×D) mm | 87 x 91 x 18 | Weight (kg) | 0.044 |
Color | White | Material | ABS |
Capacity (Cores) | 2 | Adapter | SC & LC & FC & ST |
Number of Outlets | 2 | Number of Cable Entre Points | 1 |
Installation Models | Desktop or Wall Mounted | Drop Cable (Flat) | Indoor Flat Drop cable 2mm×3mm |
Indoor Cable (Round) | ≤Φ2mm | Fiber Pigtail | ≤Φ0.9mm |
Connect Models | Fusion splicing | Curvature Radius (mm) | ≥15 |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC-(DCLEF)
Ordering Guide
XX | Termination box Type | PTB=Plastic Termination box, MTB=Metal Termination box |
AA | Product ID | please see the referrence below |
BB | Port Capacity | 01=1 Port, 04=4 Ports, 16=16 Ports |
C | Configuration | E=only Termination box, L=With Adapters, F=With Adapters and Pigtails |
D | Adapter Connector Type | FP,SP,SA,LP |
CL | Adapter Color(CL) | BL/Blue for Singlemode PC Standard, BG/Beige for Multimode Standard, AQ/Aqua for OM3 Standard, GR/Green for Singlemode APC Standard and PU/Purple for OM4 Standard (Metal Structure Unsuited) |
E | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3, OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
F | Fiber Length | 05=0.5M, 10=1M |
Adapter Connector Type Code
Code | Connector | Code | Connector | Code | Connector | Code | Connector |
FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
Ordering Sample
Part Number | Description |
PTB084-02E | 2 ports PTB084 type termination box, without adapter and pigtail. |
PTB084-02LSAGR | 2 ports PTB084 type termination box with simplex SC/APC adapters, without pigtail. |
PTB084-02FSAGRG652D10 | 2 ports PTB084 type termination box with simplex SC/APC adapters and 1M singlemode SC/APC pigtails. |
|
