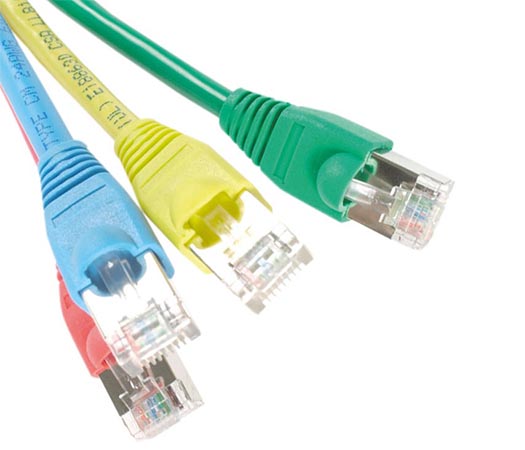

| CAT.5E UTP/FTP Patch Cord | |||||||||
|
|||||||||
Features & Benefits:
. Meets or exceeds industry standards for NEXT and return loss
. UTP, FTP and SFTP versions available
. Twisted pairs are brightly coloured and distinguished at a glance
. Ultra smooth jacket available in LSZH or PVC and in a variety of colours
. Available in custom lengths
| Construction | UTP | FTP |
| Conductor Size (AWG) | 24(Solid bare copper) | |
| Dielectric Material | High Density PE | |
| Insulation Diameter: | 1.43 mm | |
| Screening Material: | N/A | Aluminium foil (100% Coverage) |
| Outer Jacket: | LSZH or PVC | |
| Outer Jacket Thickness | 5.3 mm | 6.2 mm |
| Frequency Range: | 1 - 100 MHz |
| Impedance: | 10 Ω+/- 15 |
| Coupling Attenuation: | 40 dB min @ 30-100 MHz |
| Max. DC Resistance : | 94 Ω/km@20°C |
| Max. Resistance Unbalance: | 5 % |
| Capacitance: | 5.6nF/100m max. |
| Capacitance Unbalance: | 3.3 pF/m max. |
| Velocity of Propagation: | 69% |
| Propagation Delay Skew: | 25ns/10m max. |
| Dielectric Strength: | 1KV/minute |
| Min. Insulation Resistance : | 5 GΩ•km |
| Max. Tensile Strength - Short Term: | 110 N |
| Min. Bend Radius: | UTP: 42 mm; FTP: 50 mm |
| Max. Operating Temperature: | +70 °C |
| Min. Operating Temperature: | –20 °C |
| Category | Construction | Sheath Material | Colour | Length |
| Category 5e (CAT5e) 5E |
UTP (U/UTP) UTP FTP (F/UTP) FTP |
PVC PVC LSZH LS |

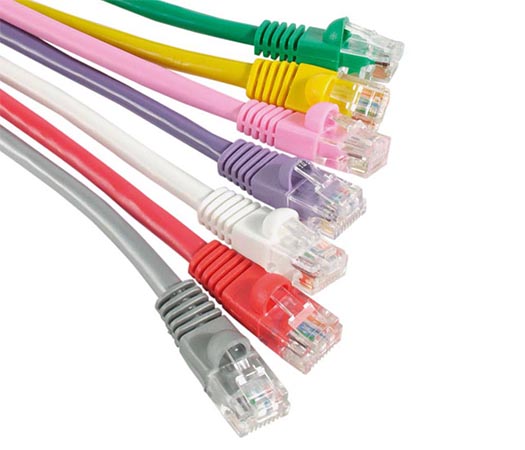

Grey GY Red RD Green GR Blue BL Yellow YE Orange OR White WH Black BK Purple PU Pink PK |
0.3-100m 0.3-100 |
| For Example: PC5E-FTP-LS-BL-3; Cat.5E FTP Patch Cord, 3M, LSZH, Blue. | ||||
|
