Certification and Compliance
. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Features

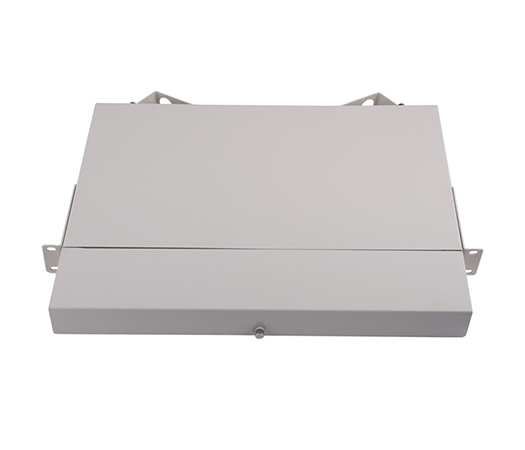

. Detachable the front cover.

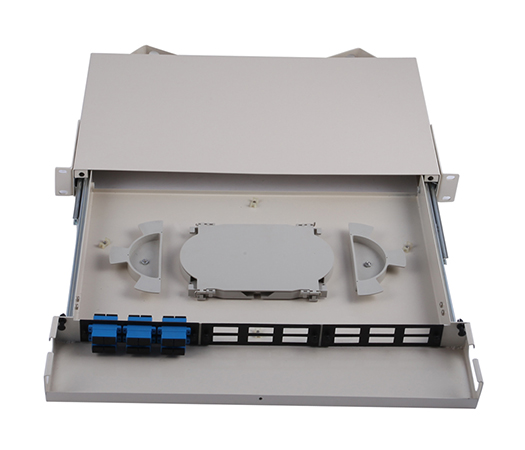

. Easy access with Telescopic rail pull-out system.
. Professional cable storage and protection.
. Quick-stud system ensures easy closing /opening of the drawer.
. 1U rackmount can be loaded with up to 3 panels (6-, 8-, or 12- fiber panels).

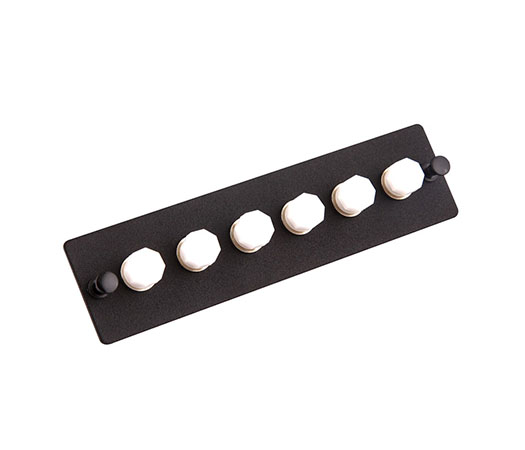

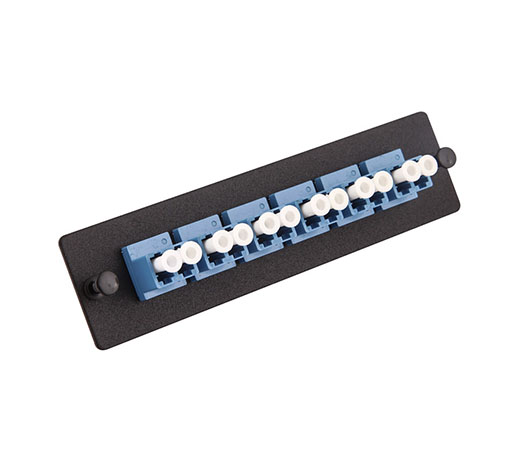

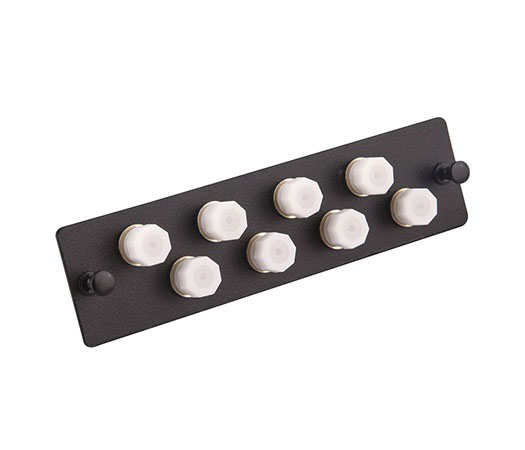

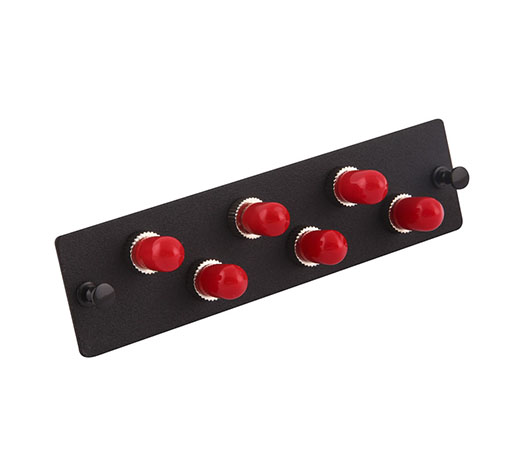

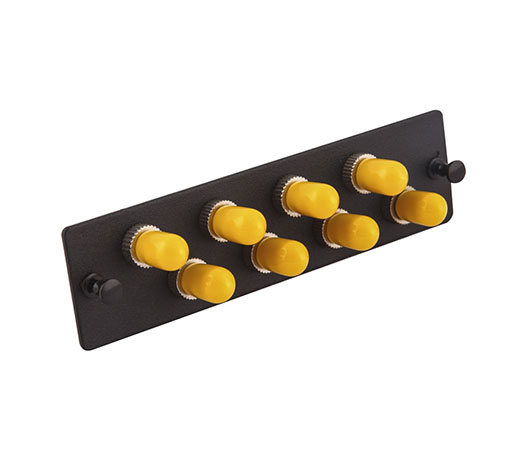

. Can load SC, FC, ST, LC adapter, only change the different plates.
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BBC(DEF)
Ordering Guide
| XX | patch panel Type | WPP=wall mount patch panel, RPP=rack mount patch panel |
| AA | Product ID | UP |
| BB | Port Capacity | 012=12 Ports, 018=18 Ports, 024=24 Ports, 036=36 Ports |
| C | configuration | E=only patch pane, L=With Adapter Panels,
F=With Adapter Panels and Pigtails |
| D | Connector Type | FP,SP,SA,LP |
| E | Fiber Type | OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3,
OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A |
| F | Fiber Length | 05=0.5M, 10=1M, 20=2M |
Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
| MU | MU | DN | DIN | MT | MTRJ | E2 | E2000 |
Ordering Sample
| Part Number | Description |

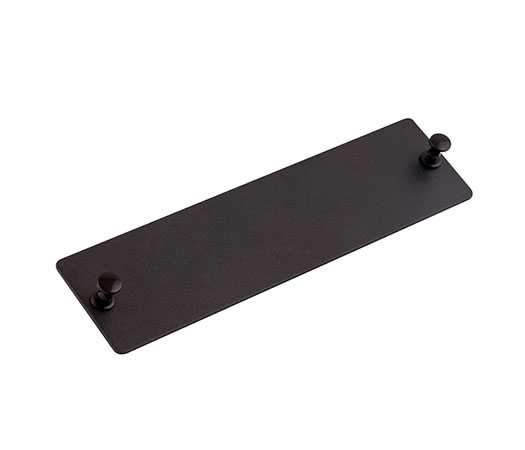

| RPP-UP-E | 1U RPP-UP Type Rack Mount Patch Panel without adaptor plate and pigtail. |
| RPP-UP-36FSPG652D15 | 1U 36 Fibers RPP-UP Type Rack Mount Patch Panel With Duplex
SC/PC SM Adapter Plate and 1.5M Singlemode G652D SC/PC Pigtail. |
