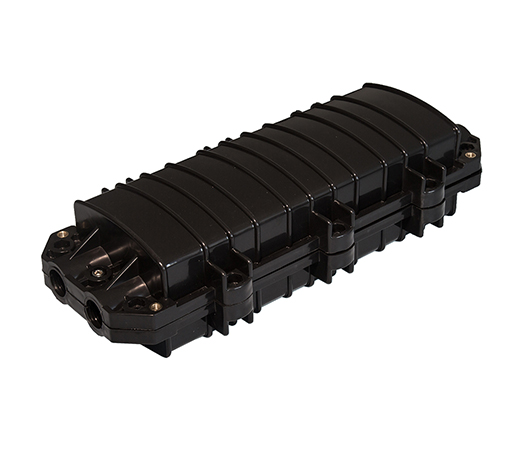

| 4 Ports-192 Cores Horizontal Inline Fiber Optic Splice Closure | |||||||||
|
|||||||||
. YD/T814.1-2004,
. YD/T814.2-2005
. ITU L.13-2003,
. IEC1073-1：1994
Features
. The case body is made from high-quality ABS, with the advantages of less weight, high mechanical intensity, corrosive-resistance and long service life.
. The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) and insulation tape.
. The sealing structure keep good sealing performance after re-entry and re-using.
. The external component and fastening piece are all made of the high-quality stainless steel.
. Unique configuration of the plug to cover unused inlets.
. unique disposition of 4 different cable loops (Φ12.5, Φ17, Φ20, Φ22) enables user to choose different outer diameter according to actual conditions, it enhances the reliability of the cable entrance sealed.

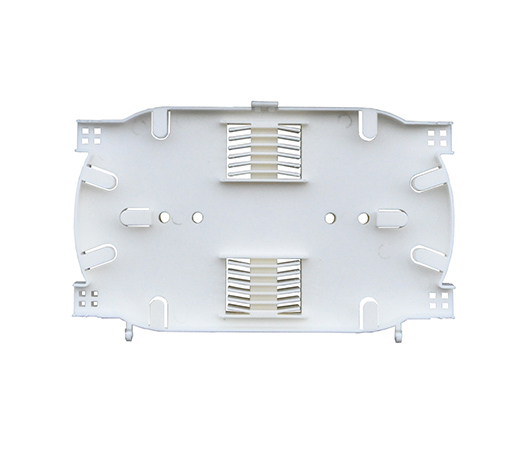

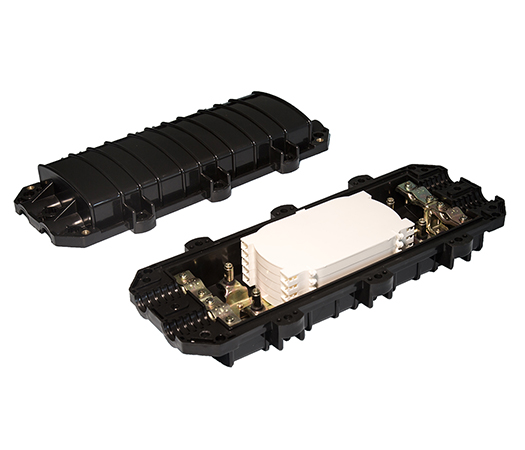

. Overlapping splice trays are easy to insert and remove, can accommodate 8 splice trays.
. It could save the installation time and improve work efficiently.
Specifications
Working Temperature | -25～+60°C | Storage Temperature | -40～+70°C |
Humidity | 93%(+30°C) | Air Pressure | 70KPa～106KPa |
Size (L×W×H) mm | 435*190*120 | Weight (kg) | 2.6 |
Color | Black | Material | ABS (ROHS standard) |
Max. Capacity (Per Tray) | 24 Fibers | Max. Capacity of Splice Trays | 8 |
Max. Capacity (Cores) | 192 | Curvature Radius (mm) | ≥40 |
Cables Entry & Exit | 4 Ports | Suitable for Cable Diameter | Φ10-Φ22mm |
Protective Level | IP65 | Sealing Method | adhesive rubber strip and insulation tape |
|
