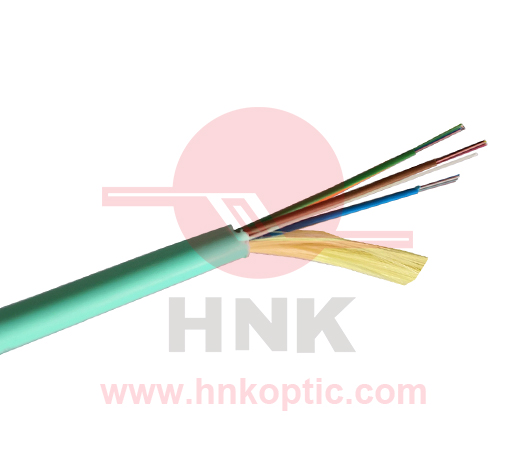

| High Fiber Indoor Micro Bundle Cable | |||||||||
|
|||||||||
Complied with or Exceeds Standard
IEC 60793-2-10 type A1b, TIA/EIA-492AAAA-A IEC 60793-2-10 type A1a.1, TIA/EIA-492AAAB-A.
IEC 60793-2-10 type A1a.2, ISO/IEC 11801 OM-3, TIA/EIA-492AAAC IEEE 802.3z Gigabit Ethernet
IEC 60793-2-10 type A1a.3, ISO/IEC 11801 OM-4, TIA/EIA-492AAAD. IEEE 802.3ae 10 Gigabit Ethernet
IEC 60793-2-10 type Ala.4, ISO/IEC 11801 OM5, TIA/ElA-492AAAE. IEEE 802.3ba 40&100 Gigabit Ethernet
ITU-T Recommendation G.652.D/G.655/G.657.A1/G.657.A2/G.657.B2/G.657.B3
IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2/ B6.b3 Optical Fiber Specification.
ANSI/TIA/EIA 568C.3 ROHS Compliant Directive 2011/65/EU(ROHS2.0)

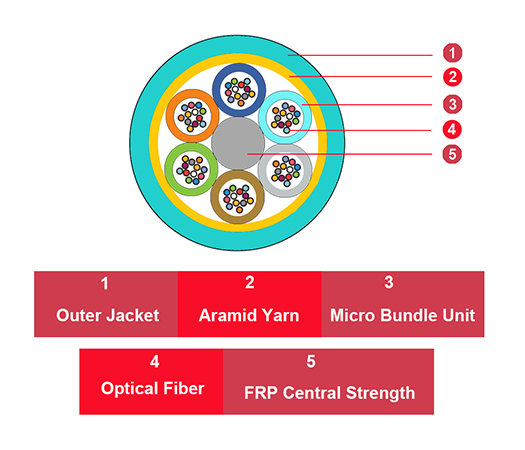

Each micro bundle unit contains 12 fibers with a fiber diameter of 250µm. Each fiber strand is color coded for easy identification. A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member. Several micro bundles are arranged around a central strength element and uses lightweight, flexible aramid yarns to enhance strength. The cable is completed with a LSZH or PVC jacket.
The watertight aramid yarns and the central strength element make the micro bundle universal design watertight, mechanical robust and suitable for installation outdoor in a duct by pulling.
The micro bundle universal complies with the indoor fire requirements. Since there is no drip effect of the very limited amount of gel the cable is optimized for both horizontal and vertical installations.
Mechanical & Environmental Characteristics
Max. Tensile Load (Short Term) | 660N | Max. Tensile Load (Long Term) | 200N |
Max. Crush Load (Short Term) | 1000N/100mm | Max. Crush Load (Long Term) | 300N/100mm |
Bend Radius-Dynamic (mm) | 20D | Bend Radius-Static (mm) | 10D |
UL Fire Rated | OFNR | Micro Bundle Jacket Material | LSZH or PVC |
Outer Diameter (mm) | 5.7mm (12 F), 6.6mm (24~48 F), 9.2mm (96 F) | ||
Outer Jacket Material | Standard: LSZH Optional: PVC or other | ||
Operating Temperature | -20°C to +60°C | Storage Temperature | -20°C to +60°C |
Note: “D” is Cable Outer Diameter.
Ordering Information
Part Number： OC-XX-A(B)CDCL
Ordering Guide
XX | A | B | C | D | CL |
Cable Type Code | Jacket | Fiber/Per Loose Tube or Fiber/Per Sub Unit | Fiber Count | Fiber Type | Jacket Color(CL) |
GJPFH | 1=PVC 2=LSZH 3=PE | 2=2 Fibers/Loose Tube 12=12 Fibers/Loose Tube …… 2=2 Fibers/Sub Unit 12=12 Fibers/Sub Unit | No. Of Fiber 004F, 048F | OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 OM5=50/125 OM5, G652D=9/125 G652D G655=9/125 G655, G657A1=9/125 G657A1 G657A2=9/125 G657A2, G657B3=9/125 G657B3 | As noted in Color code chart |
Color Code
Ordering Sample
Part Number | Description |
OC-GJPFH-21248OM3AQ | 48 Cores Multimode OM3 GJPFH Fiber Optic Cable, 12 Fibers/Per Micro Bundle, LSZH Jacket, Aqua Color. |
|
