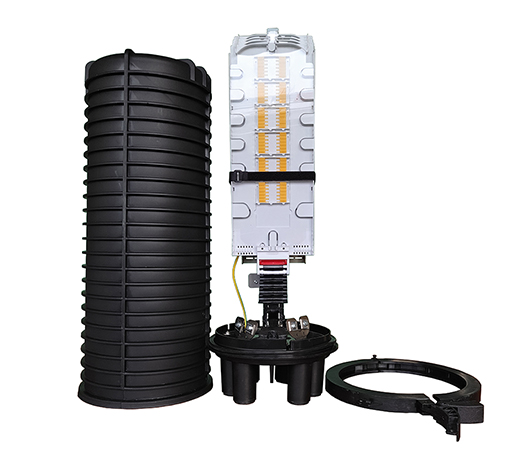

| 6 Ports-576 Fibers Dome Fiber Optic Splice Closure | |||||||||
|
|||||||||
. YD/T814.1-2004,
. YD/T814.2-2005
. ITU L.13-2003,
. IEC1073-1：1994
Features
. To adopt high-quality PP, make the splice closure has longer life time.

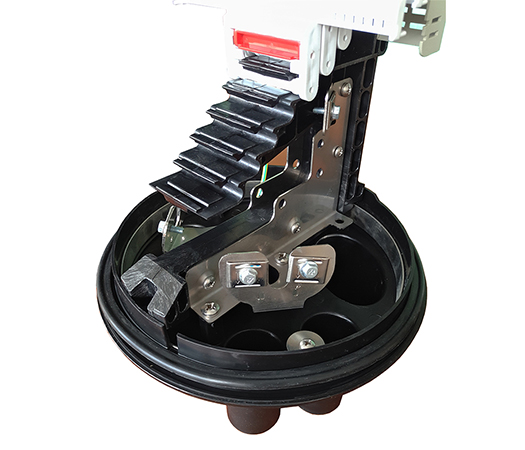

. The base and dome are sealed with a silicone rubber O-ring and a hoop locking system.
. Hoop locking structure system, no special tools are needed to open the splice closure, and it can be easy opened and used repeatedly.
. Closure with an earthing device protect it from damage by lightning.
. The inlet/outlet cables adopt heat-shrinkable for ease of installation and reentry.
. The splice closure is spacious enough for winding and storing fibers.
. The curved diameter meets with international standard.
. Splice trays are easy to insert and remove, can accommodate 8 splice trays.
. Splice trays are hinged at one end and its opening angle is about 90°.
. Storage baskets to store slack or express buffer tubes, fibers, or ribbons.
Specifications
Working Temperature | -25～+60°C | Storage Temperature | -40～+70°C |
Humidity | 93%(+30°C) | Air Pressure | 70KPa～106KPa |
Dimension (mm) | Φ305*680 | Closure Material | PP |
Color | black | Splice Tray Material | ABS |
Max. Capacity (Per Tray) | 72 | Max. Capacity of Splice Trays | 8 |

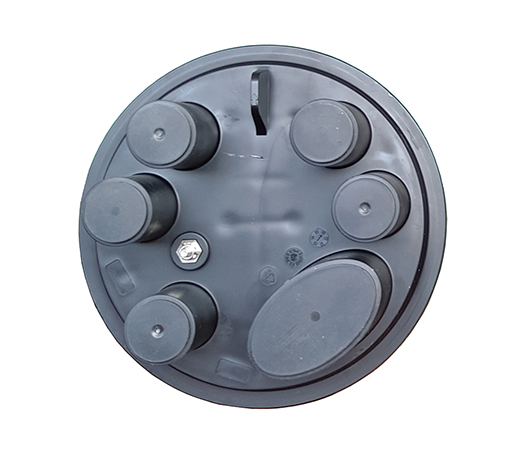

Max. Capacity (Fibers) | 576 (single fiber) | Cables Entry & Exit | 5 round ports and 1 oval port |
Suitable for Cable Diameter of Oval Port | Φ10-Φ25mm (x 2 cables) | Suitable for Cable Diameter of Round Port | Φ5-Φ35mm |
Protective Level | IP68 | Sealing Method | mechanical and heat-shrinkable seals |
|
