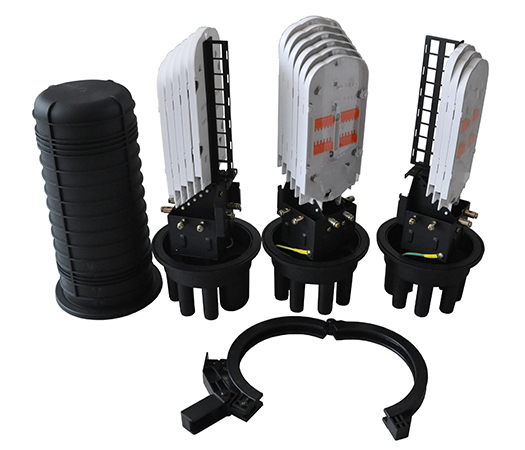

| 7 Ports-144 Fibers Dome Splitter Fiber Optic Splice Closure | |||||||||
|
|||||||||
. YD/T814.1-2004,
. YD/T814.2-2005
. ITU L.13-2003,
. IEC1073-1：1994
Features
. To adopt high-quality MPP make the closure has longer life time.

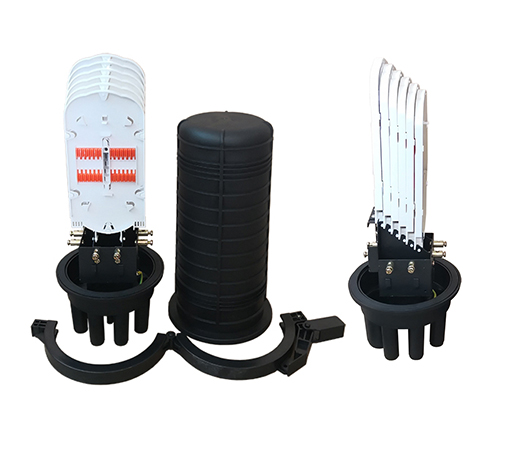

. The base and dome are sealed with a silicone rubber O-ring and a hoop locking system.
. Hoop locking structure system, no special tools are needed to open the closure, and it can be opened and used repeatedly.

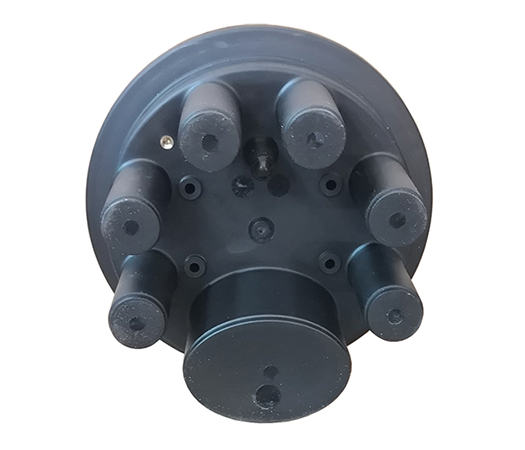

. This closure has six small round holes and one big oval hole. small hole can meet requirements of Ф7-Φ18 cable output, big hole meet requirements of Φ10-Φ22 (2pcs) cable output.
. The inlet/outlet cables adopt heat-shrinkable for ease of installation and reentry, excellent sealing performance.

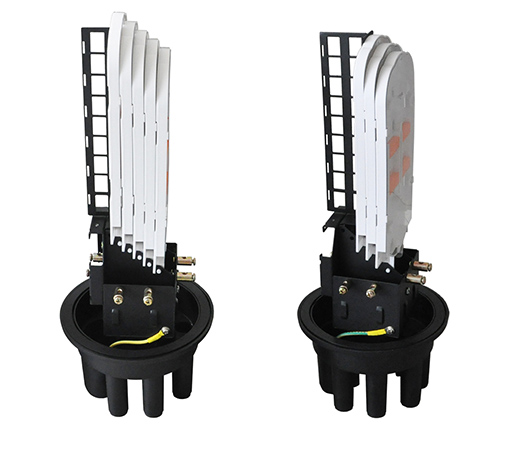

. Splice trays are easy to insert and remove, can accommodate 6 splice trays.
. Optional adapter metal panel, max. for 36 SC simplex adapters.
. It applies to micro type PLC splitter with max ratio 2:32 or 2*2:16.
. Closure with an earthing device protect it from damage by lightning.
Specifications
Working Temperature | -25～+60°C | Storage Temperature | -40～+70°C |
Humidity | 93%(+30°C) | Air Pressure | 70KPa～106KPa |
Dimension (mm) | Φ230*440 | Closure Material | Modified polymer plastic (MPP) |
Color | Black | Splice Tray Material | ABS |
Max. Capacity (Per Tray) | 24 | Max. Capacity of Splice Trays | 6 |
Max. Capacity (Fibers) | 144 (single fiber) | Cables Entry & Exit | 6 small round ports and 1 big oval port |
Max. Splitting Ratio: | 2:32 | Max. Capacity of Adapter | 36 (SC simplex) |
Suitable for Cable Diameter of Big Port | Φ10-Φ22mm (x 2 cables) | Suitable for Cable Diameter of Small Port | Φ7-Φ18mm |
Protective Level | IP68 | Sealing Method | mechanical and heat-shrinkable seals |
|
