　 Fiber Optic Stripper

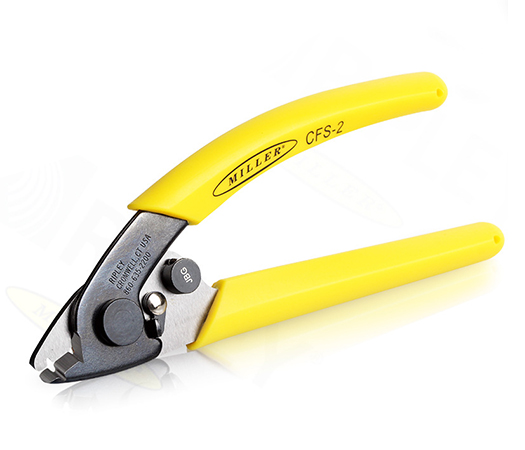

Model:CFS-2

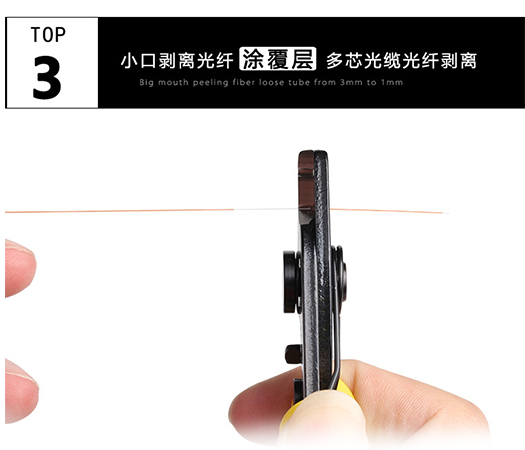

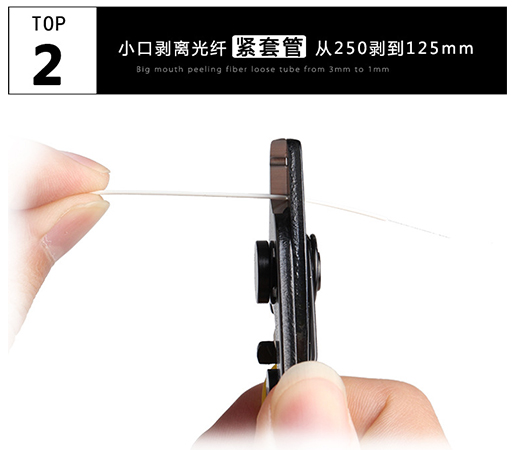

The CFS-2 for stripping 250 micron buffer coating to expose 125 micron cladded fiber. The CFS-2 features a 1-mm diameter hole at the tip of the 250-µm Fiber Optic Buffer Stripper ideal for stripping fiber jacket. The 140-µm diameter hole and V-opening in the blades allows removal of 250-µm buffer coating from 125-µm fiber. Its preset at the factory, so no adjustments are needed. All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips. This tool features comfort-grip, ergonomic handles. A lock holds the blades closed when not in use.

Fiber Optic Stripp
Fiber Optic Stripp
Fiber Optic Stripp
Fiber Optic Stripp
Fiber Optic Stripp
Fiber Optic Stripp
Fiber Optic Stripp

2011/65/EU(ROHS2.0)

Features

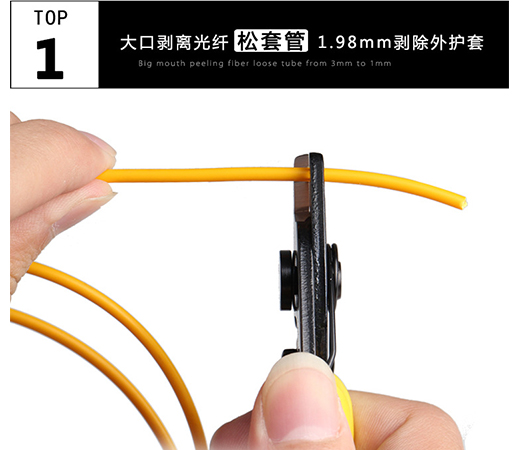

. Second hole for stripping 1.6-3 mm fiber jackets

. Pre-set at the factory—no adjustments needed

. Will not scratch or nick glass fiber

. All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips

. Comfort-grip, ergonomic handles

. Lock to hold tool closed when it is not in use

Specification

Brand	Original Ripley Miller	Model NO.	CFS-2
Pliers Material	60# Steel	Origin	USA
Sheath Material	Non-slip Plastic	Color	Yellow
Length	165mm	Weight	119g

Ordering Information

Part Number	Description

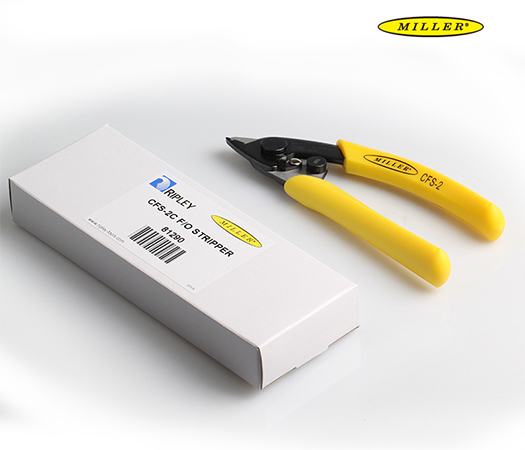

CFS-2	Original Ripley Miller CFS-2 Fiber Optic Stripper.
