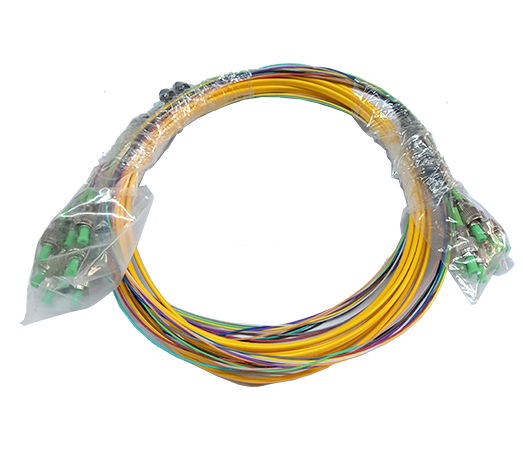

| Ribbon fan-out Fiber Optic Pigtail | |||||||||
|
|||||||||
Complied with or exceeds Standard
. ITU-T G652.D
. ITU-T G657.A
. ITU-T G651.1 OM1 OM2 OM3 OM4
. IEC60793-2-10 type A1a.1/A1b OM1/OM2
. IEC60793-2-10 type A1a.2 OM3
. IEC60793-2-10 type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702
. IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3
. ANSI/TIA/EIA-455B
. ROHS Compliant Directive 2011/65/EU(ROHS2.0)
Features
. Top quality ceramic ferrule
. Top quality fiber cable
. Low insertion loss and high return loss
. UPC, APC or PC polish

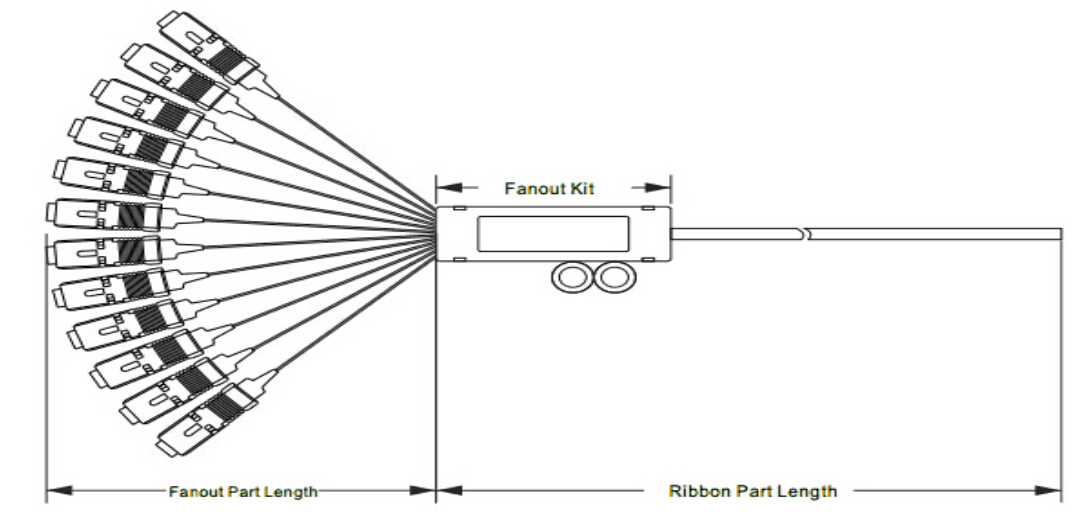

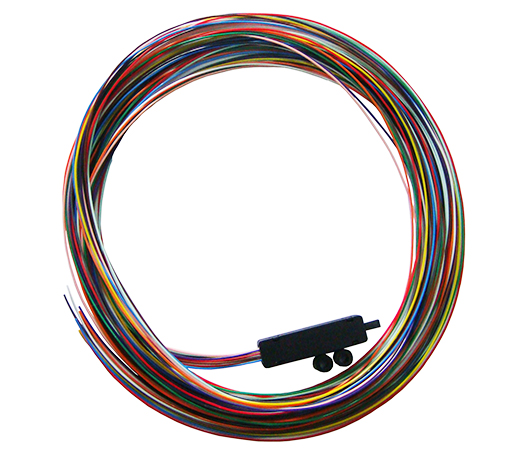

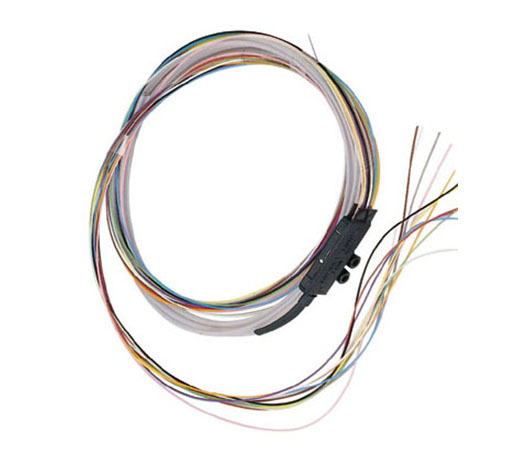

. With a fan out kit at the junction of fibers

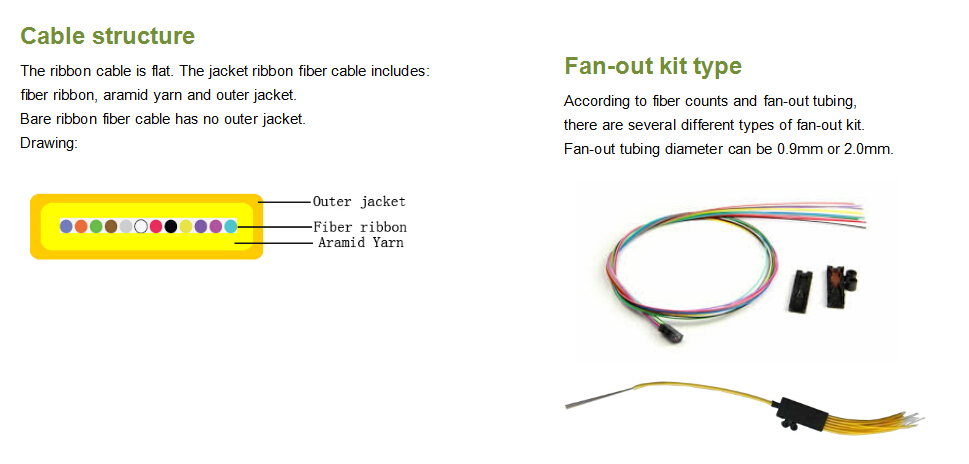

. The fiber is flat type.
. Good exchangeability, Good durability
| ITEM | Value |
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 2,4,6,8,12 |
| Cable Type | Bare ribbon, Jacket ribbon |
| Fanout tubing diameter | 0.9mm,2.0mm |
| Connector | SC, LC, ST, FC, MU, MTRJ, E2000, DIN, D4, SMA905 |
| Jacket Type | PVC, LSZH |
| Insertion Loss | <=0.2dB |
| Return Loss* | UPC>=50dB, APC>=60dB, PC>=35dB |
| Repeatability (dB) | <=0.2 (1000 times) |
| Exchangeability (dB) | <=0.2 |
| Operating temperature | -40 ° C ~ 85 ° C |
| Storage temperature | -40 ° C ~ 85 ° C |
*UPC≥55dB, APC≥65dB on request. All connectors are inspected visually at 400X
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： RPT-AA-BB-CDEFG
Ordering Guide
| AA | BB | C | D | E | F | G |
| connector Type | Fiber Type | Fiber Count | Pigtail Length | Fanout Cable OD | Fanout Cable Length | Jacket Type |
| FP,SP,SA,LP (As noted in Connector type code chart ) | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A | 2F=2 Cores 4F=4 Cores 8F=8 Cores 12F=12 Cores | 05=5M 20=20M | 09=0.9mm 20=2.0mm | 05=0.5M 10=1M | 1=PVC 2=LSZH |
Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC | MU | MU | DN | DIN |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC | MT | MTRJ | E2 | E2000 |
Ordering Sample
| Part Number | Description |
| RPT-SP-G652D-12F1009051 | SC/PC Singlemode G652D 12 Cores Ribbon Fan-out Fiber Optic Pigtail,10M. Fanout Cable OD 09 mm, Length 0.5M, PVC Jacket. |
|
