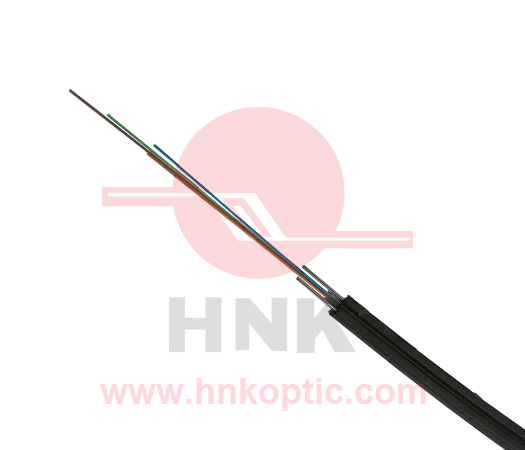

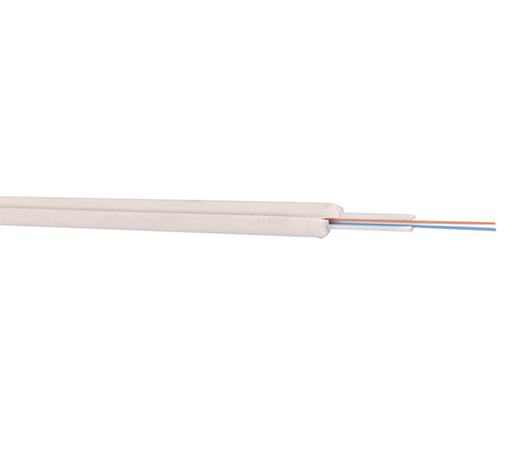

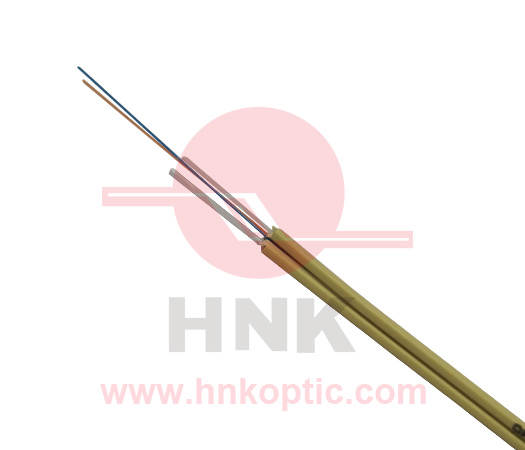

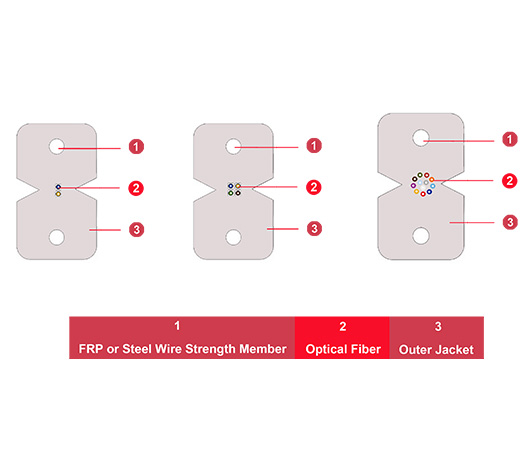

FTTH Drop Cable-HNK Optic Equipment Co.,Limited

Complied with or Exceeds Standard

ITU-T Recommendation G.652.D/G.655/G.657.A1/G.657.A2/G.657.B2/G.657.B3

IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2/ B6.b3 Optical Fiber Specification.

ANSI/TIA/EIA 568C.3 ROHS Compliant Directive 2011/65/EU(ROHS2.0)

It is very light in construction and easy to install, generally used for connecting Main distribution frame to consolidation point in home, apartment or offices. Industry standard connectors can be used for direct termination because of standard 250µm fiber size.

Mechanical & Environmental Characteristics

Cable Type	GJXFH			GJXH
Min. Tensile Load	Short Term: 80N	Long Term: 40N		Short Term: 200N		Long Term: 100N
Min. Crush Load	Short Term: 1000N/100mm	Long Term: 500N/100mm		Short Term: 2200N/100mm		Long Term: 1000N/100mm
Bend Radius- Dynamic	60mm (G652D), 30mm (G657A1, G657A2)
Bend Radius- Static	30mm (G652D), 15mm (G657A1, G657A2)
Outer Jacket Material	Standard: LSZH Optional: TPU, PVC or other
Outer Diameter (mm)	(2.0±0.1) x (3.0±0.1) mm (1~4 Cores), (2.8±0.1) x (3.8±0.1) mm (6~12 Cores)
UL Fire Rated	OFNR		Fiber Type		G652D, G657A1, G657A2
Operating Temperature	-40°C to +70°C		Storage Temperature		-40°C to +70°C

Optical Characteristics

Charac Teristic		Condition	Unit	G657A2	G657A1	G652D
Attenuation		1310 nm	[dB/km]	≤0.36		≤0.40
Attenuation		1550 nm	[dB/km]	≤0.25		≤0.30
Zero Dispersion Wavelength			[nm]	1300-1324
Zero Dispersion Slope Typical value Typical value			[ps/(nm².km)]	≤0.092		≤0.091
Cable Cutoff Wavelength λсс			[nm]	≤1260
Mode Field Diameter (MFD)		1310 nm	[µm]	8.4~9.2		8.7~9.5
Mode Field Diameter (MFD)		1550 nm	[µm]	9.3~10.3		9.9~10.9
Macro Bending Induced Attenuation	10 Turns Around a Mandrel @ 15mm Radius	1550 nm	[dB]	≤0.03	≤0.25	-
	10 Turns Around a Mandrel @ 15mm Radius	1625 nm	[dB]	≤0.1	≤1.00	-
	1 Turn Around a Mandrel @ 10mm Radius	1550 nm	[dB]	≤0.1	≤0.75	-
	1 Turn Around a Mandrel @ 10mm Radius	1625 nm	[dB]	≤0.2	≤1.50	-
	1 Turn Around a Mandrel @ 7.5mm Radius	1550 nm	[dB]	≤0.2	-	-
	1 Turn Around a Mandrel @ 7.5mm Radius	1625 nm	[dB]	≤0.5	-	-

Ordering Information

Part Number： OC-XX-A(B)CDCL

Ordering Guide

Cable Type

Code

Jacket

Fiber/Per Loose Tube or

Fiber/Per Sub Unit

Fiber Count

Fiber Type

Jacket Color(CL)

GJXFH,

GJXH

1=PVC

2=LSZH

3=PE

2=2 Fibers/Loose Tube

12=12 Fibers/Loose Tube

……

2=2 Fibers/Sub Unit

12=12 Fibers/Sub Unit

No. Of Fiber

004F, 048F

OM1=62.5/125 OM1, OM2=50/125 OM2

OM3=50/125 OM3, OM4=50/125 OM4

OM5=50/125 OM5, G652D=9/125 G652D

G655=9/125 G655, G657A1=9/125 G657A1

G657A2=9/125 G657A2, G657B3=9/125 G657B3

As noted in Color code chart

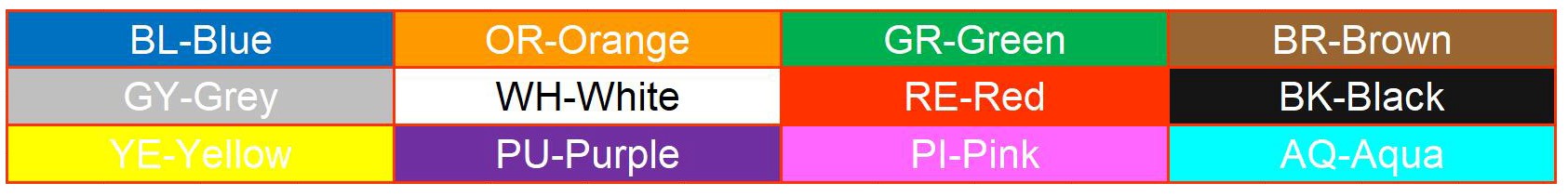

Color Code


Ordering Sample

Part Number	Description
OC-GJXFH-22G657A1WH	2 Cores Singlemode G657A1 GJXFH Drop Cable, LSZH Jacket, White Color.
